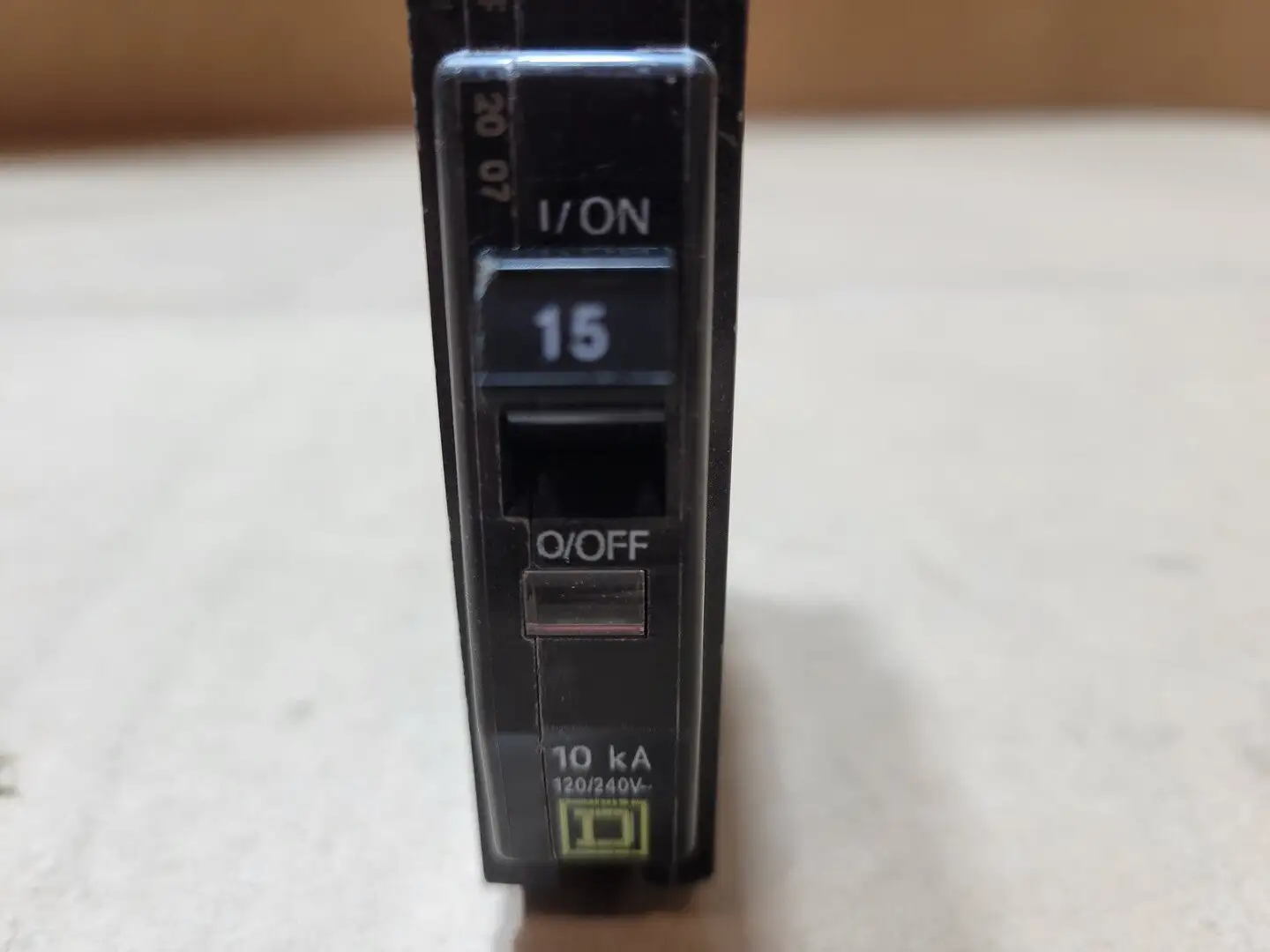

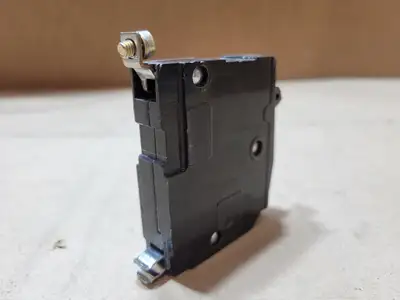

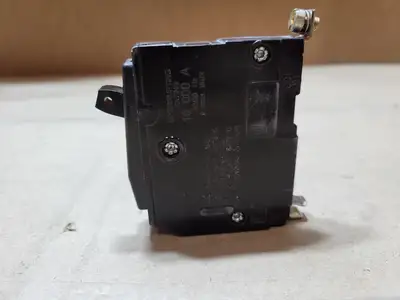

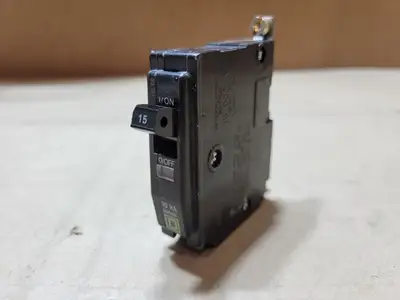

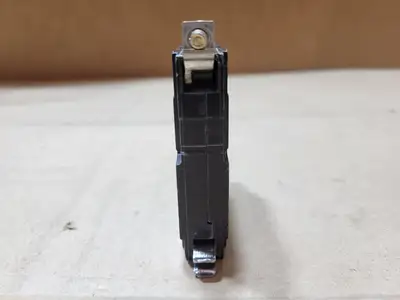

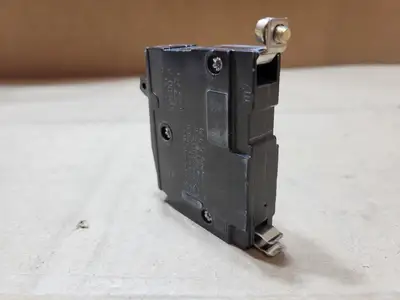

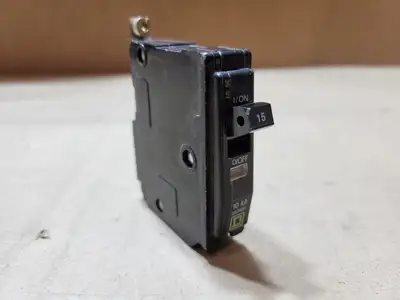

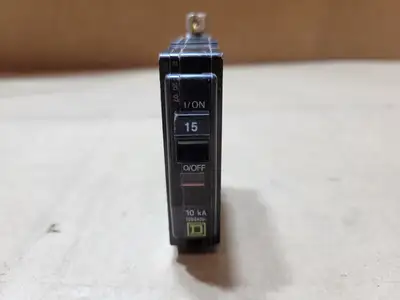

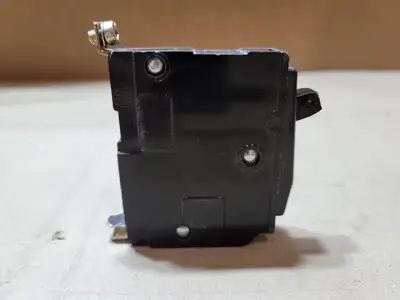

USED SQUARE D QOB115
Overview
Specs
Amps: 15 amps
Series: QOB
# of Poles: 1
Mounting Style: Bolt-On
Voltage: 120/240 volts
Phase: Single-phase
Frequency: 50/60 Hz
Interrupting Rating: 10kA / 10,000A at 120/240VAC
Trip Type: Thermal-Magnetic
Circuit Breaker Type: Standard
Application Rating: HACR and Switching Duty rated
Electrical Connection: Pressure Plate
Ambient Rating: 40°C / 104°F
Panel Spaces: 1
Certifications: UL Listed / CSA

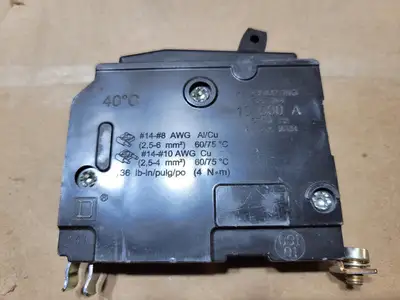

Al/Cu Conductor Range: #14-#8 AWG / 2.5-6 mm2
Copper Conductor Range: #14-#10 AWG / 2.5-4 mm2
Conductor Temperature: 60/75°C
Terminal Torque: 36 lb-in / 4 N-m
