USED ATLAS COPCO 1900070003

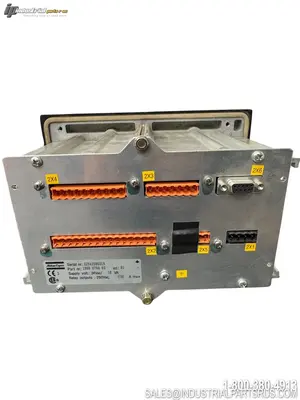

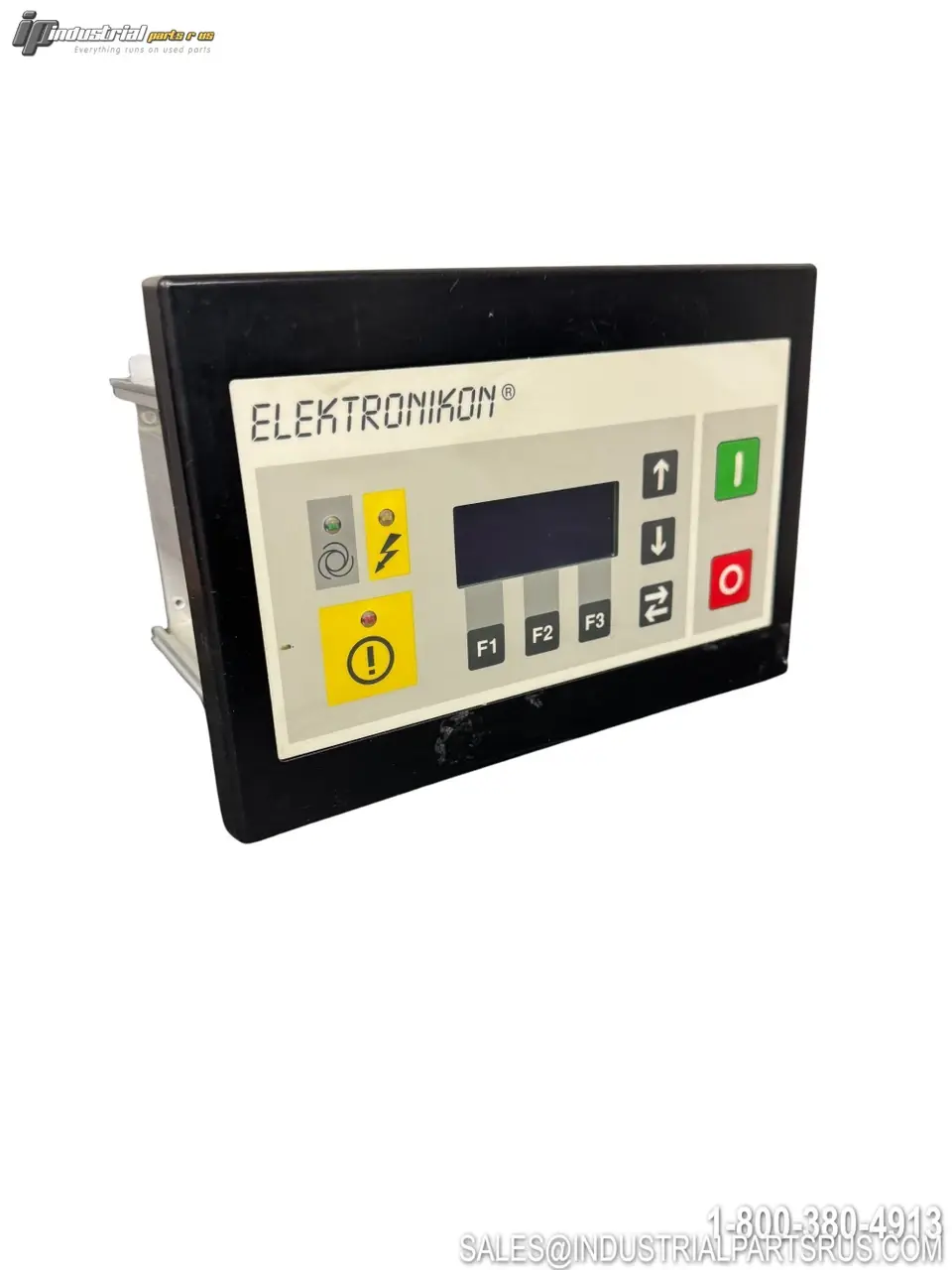

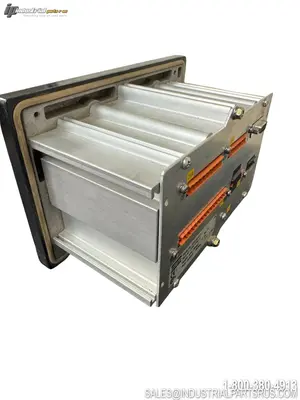

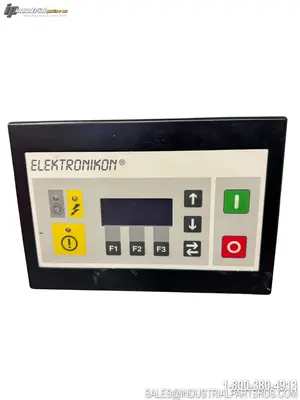

The Atlas Copco 1900070003 (also known as 1900-0700-03) is an Elektronikon Mk4 series controller panel designed for Atlas Copco rotary screw air compressors, including GA and GX series stationary compressor units. It serves as the primary operator interface and control brain of the compressor system, providing start/stop control, fault monitoring, parameter display, and system management functions. The panel features a membrane keypad with tactile button switches and an integrated 4-line LCD display (4×20 character) for real-time compressor status readout. Advanced features include Automatic Restart After Voltage Failure (ARAVF), dual pressure band operation, programmable day/week timers, and remote start/stop capability.
Specification
Value
Brand
Atlas Copco
Model / Part Number
1900070003
Alternate Part Numbers
1900-0700-03, 1900 0700 03
Series / Platform
Elektronikon Compressor Controller
Product Type
Controller Panel / Operator Interface
Application
Atlas Copco Rotary Screw Air Compressors (GA, GX, ZR/ZT series)

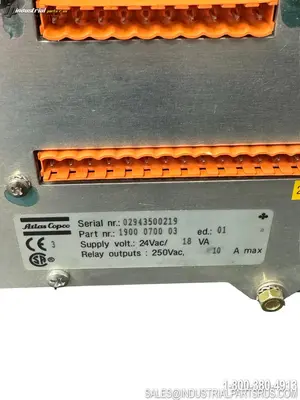

Supply Voltage
24VAC / 18VA
Relay Output Rating
250V AC, 10A Max
Interface Type
Membrane Keypad with LCD Display
Control Functions
Start/Stop, Fault Monitoring, Parameter Display, System Management
Compatible Compressor Types
Stationary Rotary Screw Air Compressors
Cross-References (same family)
1900070004, 1900070005, 1900070006, 1900070007
Note
Machine nameplate / model required for program loading at installation
