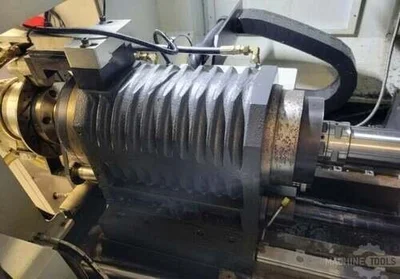

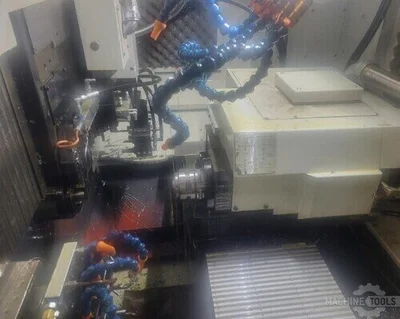

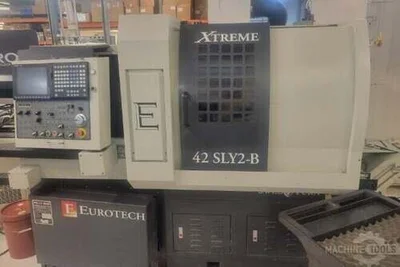

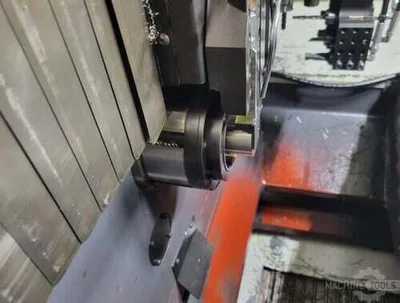

USED 2018 EUROTECH XTREME

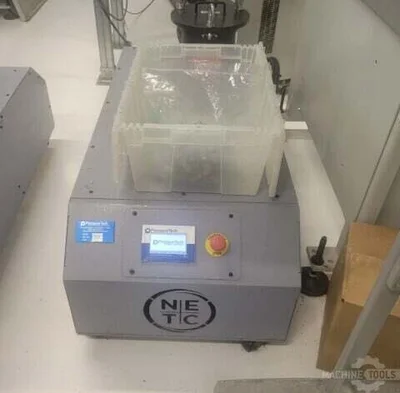

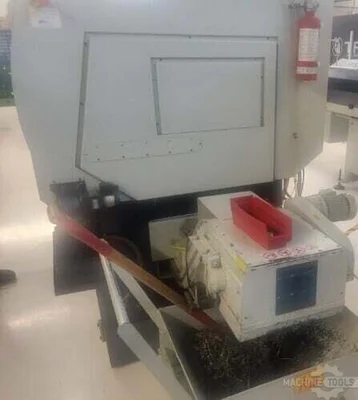

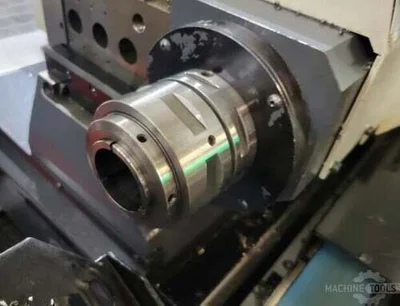

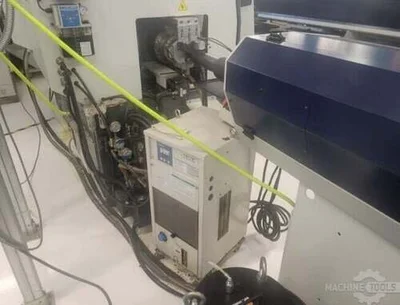

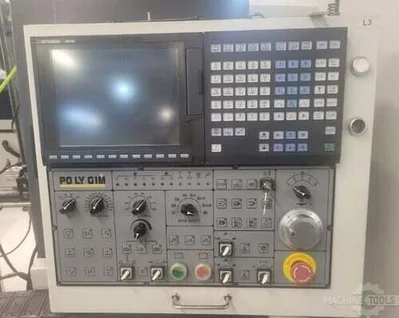

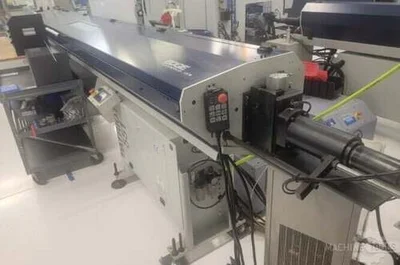

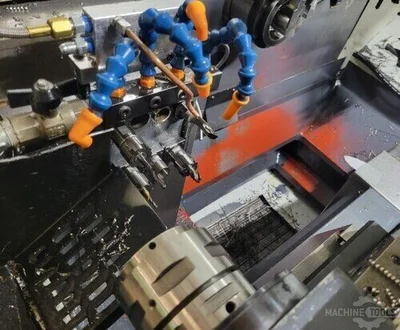

1-⅝” X 10.55” Swiss Turning Center with Mitsubishi M700 Control, Chip Conveyor, Parts Catcher, Parts Conveyor, Edge Patriot 551 Barfeed PressureTech PT2000 8 Port Swiss HP, TriMist 80 G2 Mist Collector and B42 Chucks.GENERAL SPECIFICATIONS Max. Turning Diameter:                        1-⅝”Max Machining Length Per Chucking:                10.55” Max Drilling Diameter:                        20mmMax Tapping Diameter:                        M16OD Tooling Number of Tools:                    6OD Tooling Dimension:                        16mm X 16mm X 120mmID Tooling Number of Tools:                    2ID Tooling Dimension:                        13mm (ER20)ID Driven Tooling Number of Tools:                2ED Driven Tooling Dimension:                    13mm (ER20)Cross Working Driven Tooling Number of Tools:            6Cross Working Driven Tooling Dimension:            13mm (ER20)Cross Working Driven Tooling Speed:                6,000 RPM360° Working Driven Tooling Number of Tools:            8360° Working Driven Tooling Dimension:                13mm (ER20)360° Working Driven Tooling Speed:                6,000 RPMBackworking / Static Tools Number:                4Back Working / Static Tool Dimension:                ER20Main Spindle Hole Diameter:                    46mmMain Spindle Speed:                            5,000 RPMMain Spindle Angular Movement:                    Full  C - AxisMain Spindle Horsepower:                        10 HPBack Working Spindle Hole Diameter:                33mm Back Working Spindle Speed:                    5,000 RPMBack Working Spindle Max Length for Front Eject:        250mmBack Working Spindle Angular Movement:            C - AxisBack Working Spindle Horsepower:                9.7 HPLong Shaft System Max Internal Diameter:            1.5"INCLUDES: Mitsubishi M700 Control, Chip Conveyor, Parts Catcher, Parts Conveyor, Edge Patriot 551 Barfeed PressureTech PT2000 8 Port Swiss HP, TriMist 80 G2 Mist Collector and B42 Chucks.
