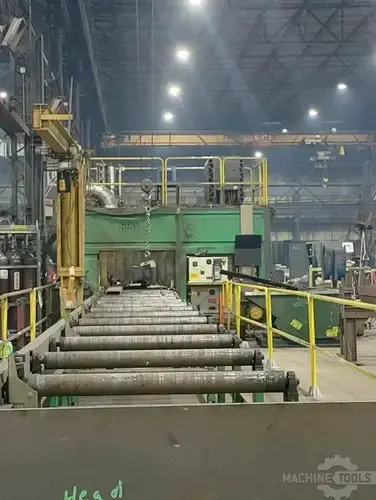

USED 2017 INOVATECH STEELPRO 600 PYTHONX SPG

Request a Quote
Add to Cart
Beam (Web Height): Min-4″ (100mm) Max-44” (1016mm)
Beam (Flange Height): Min-4″ (100mm) Max-17″ (430mm)
HSS.: Min-3″X3″ (76mm X 76mm) Max-24″X20″ (609mm X 508mm
Channel (Height): Min-3″ (76mm) Max-18″ (457mm)
Channel (Width): Min-1 1/4″ (31.75mm) Max-5″ (127mm)
Angle: Min-3″X3″ (76mm X 76mm) Max-8″X8″ (203mm X 203mm)
Flat Bar: Min-3″X3/8″ Thick (76mm X 76mm) Max-13.780″ (350mm)
Bulb Flat: Min-6.3″X0.275″ (160mm X 7mm) Max-13.4″X0.47″ (340mmx X12mm)

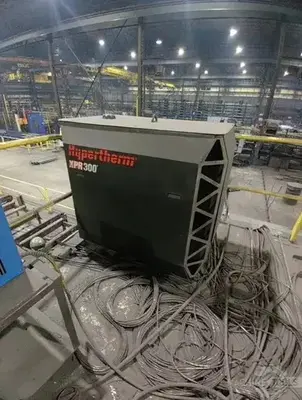

Power Source: Hypertherm XPR 300
Power Requirement: Input Voltage +/- 10% 415 / 460 / 575, Input Amperes 32 / 27 / 22, Frequency (Hz) 50 / 60
AMP Power Source: 300A, 100% Duty Cycle
Control: FANUC Robot Controller With PythonX Director
Cutting Capacity: Pierce Capacity 1.75 in [44 mm], Severance Capacity 3 in [76 mm]
Max Material Thickness: 1.75 [44] Pierce
Table Height: Pass-Line Height 35 in (889 mm)
Approx Machine Weight: 12 000 lbs. (5,444 kg)
Note: Maximum Stock And Part Length 65 ft (19.8 M), Torch Tilts Up To 55° For Beveling

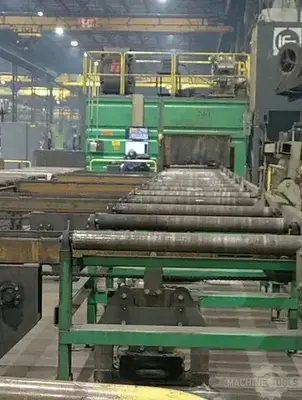

AirPack: Conveyor: 60ft Infeed / 40ft Outfeed
FANUC ArcMate 120iD Robot (M-20iD/25): FineLine 300HD Plasma
SteelPRO Dust Collector DCC12: Measuring Cart
