Tsugami M08SY-II – 2019
Overview

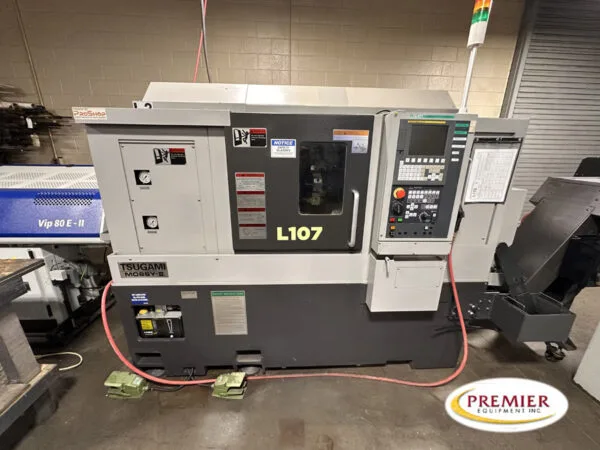

Tsugami M08SY-II CNC Lathe with Y-Axis
Specs
The Tsugami M08SY-II is state of the art Turning Center manufactured by Precision Tsugami
Corporation, recognized worldwide for superior precision machine tools since 1937.
Its standard Six Programmable Axes (X1, Y1, Z1, A1, Cmain and Cback) and Rigid Construction make
easy work of your Toughest Applications.
High Precision – High Speed – High Rigidity
Max machining diameter: 280mm (11.02”)
Max bar capacity: 65mm (2.56”)
Main spindle speed: 4,500min-1
Back spindle speed: 4,500min-1
Live tool speed: 5,000min-1
Total number of turret positions: 12
Rapid traverse rate: X/Z X:24 m/min Z: 27 m/min
Rapid traverse rate: A/Y A: 27 m/min Y: 12 m/min
Main Spindle Motor: 10/15 HP
Back Spindle Motor: 7.4/10 HP
Live Tool Motor: 1.2/5 HP
Width × Depth × Height: 106”×74”×75”
Weight: 13,228 lbs
Equipped With
Fanuc Series Oi-TF CNC Control
8.4” Color LCD
I/O Interface for RS232C, USB, and PCMIA Memory Card
Helical Interpolation
Chasing Function
Continuous Thread Cutting
Manual Pulse Generator
Background Editing
Run Time and parts Number Display
Custom Macro
Constant Surface Speed Control
Spindle Synchronous Control (Rotation/Phase/Tracing)
Tool Geometry/ Wear Offset
Programmable Data Input
Chamfering and Corner Radius
Tool Nose Radius Compensation
Multiple Repetitive Cycle
Expanded Program Editing
Inch Metric Conversion
Direct Drawing Dimension Input
Canned Cycle for Drilling
Rigid Tap (Main Spindle)
Rigid Tap (Back Spindle)
Cross Rigid Tap
Chip Conveyor (Hinge Type)
