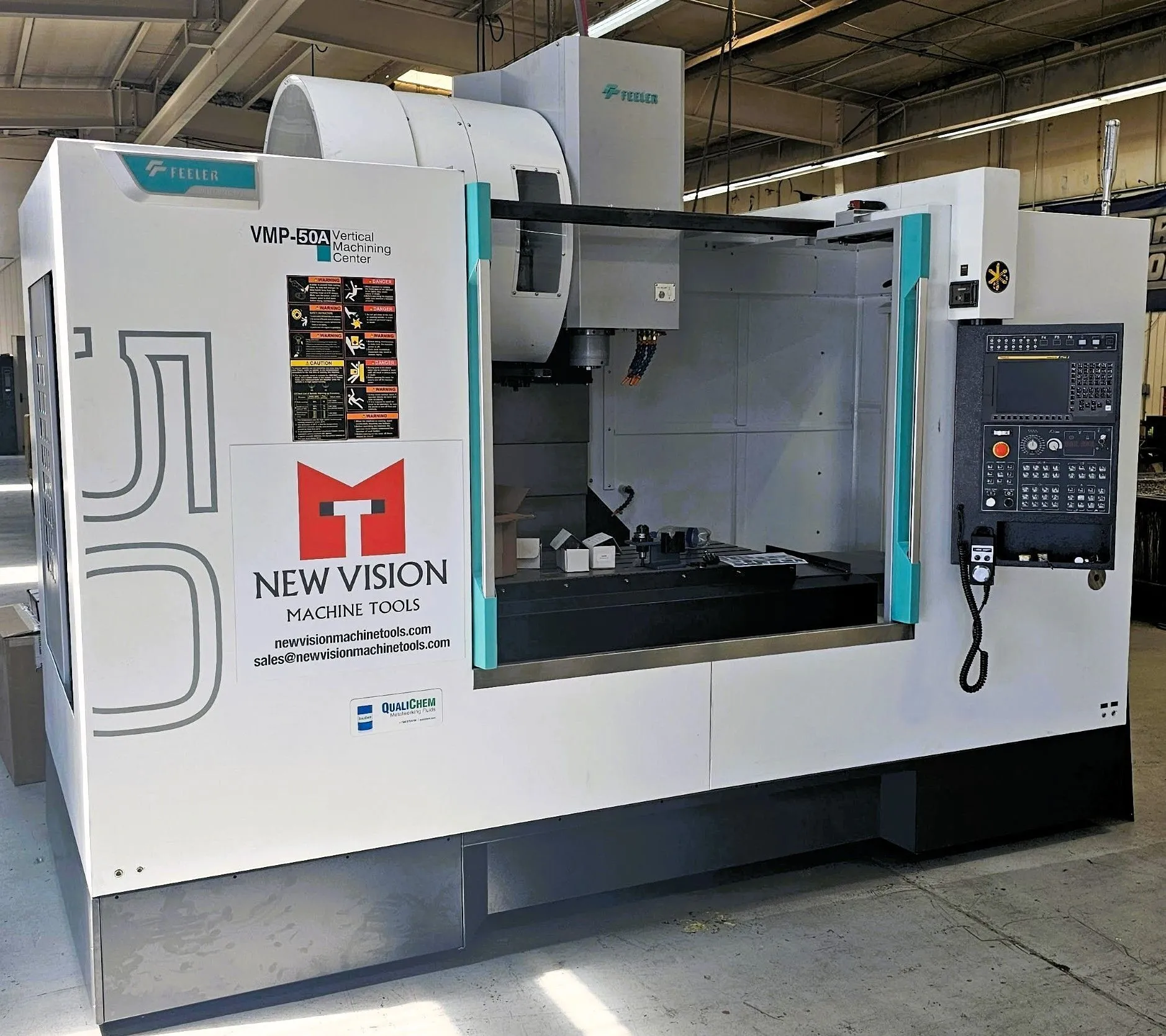

USED 2022 FEELER VMP-50(A)

Feeler Model VMP-50A CNC Vertical Machining Center, New in 2022. VERY LOW HOURS

X axis travel 1,300mm (51.2”)]

Y axis travel 610 mm (24”)

Z axis travel 600 mm (23.6”)

Spindle nose to table surface 120~720 mm (4.7” ~28.3”)

Column surface to table center 660 mm (26”)

TABLE

Table size 1,420 x 600 mm (55.9” x 23.6”)

Loading capacity (lbs.) 1,500 kg (3,300 lbs.)

Dimensions of T-Slots 18H8 x p100 x 5ea

****Approx 70ish run hours****
• Fanuc 0i-MF controller

• 10.4” LCD monitor

• Manual Guide i

• Spindle

- CAT #40 (BIG PLUS)

- 10,000 rpm belt driven

- Powerful 25 HP (18.5 kW) S3-60%

• Table

- 55.9” (1,420mm) x 23.6” (600mm)

- 3,300lbs. (1,500kg) load capacity

• ATC 30 Tools

• X / Y Liner guide and Z axis box guide ways

• 435 PSI Coolant Through Spindle preparation with rotary unit.

• Oil Skimmer

• Dual Y-Axis Augers

• Coolant gun

• (8) Extra M-code

• 4th axis interface preparation

• Max. 200 Block Look-ahead

• AICC II, Smooth Tolerance Control, Jerk Control

• Auto power off

• Chip Conveyor

• 3 color tower signal light

• Fast 36m/mim (1,417 IPM) X, Y and 24m/mim (945 IPM) Z rapid traverse
Fully Enclosed with Roof
Chip Conveyor
CTS 435 PSI Prep with Rotary Union
Rear Side Chip Flush with Coolant Gun
3 Color Light
Oil Skimmer
8 M-Codes
Auto Power Off
Manuals
**includes prep and loaded on a truck
