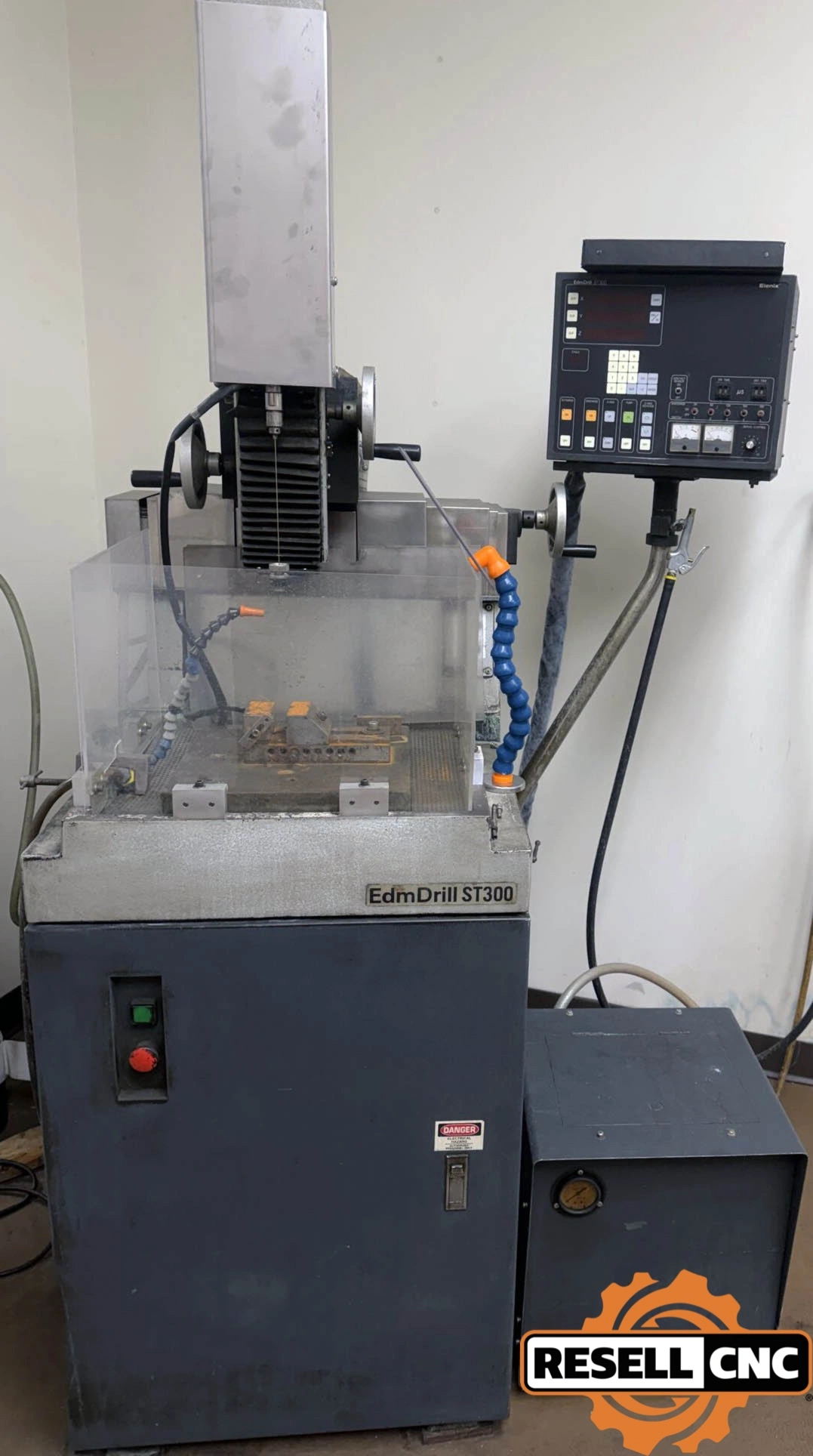

USED 1995 Current EDM ST300

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: EDM Hole Drill / "Popper"

X-Axis Travel: 12" (300 mm)

Y-Axis Travel: 8" (200 mm)

Z-Axis Travel: 16" (406 mm)

Guide (W) Axis Travel: 10.5" (266 mm)

Max Workpiece Weight: 682 lbs (310 kg)

Granite Worktable Size: 12" x 12" (300 x 300 mm)

Work Tank Capacity: 18" x 16" (450 x 400 mm)

Electrode Drill Diameters: 0.004" to 0.256" (0.1 to 6.5 mm)

Max Electrode Length: 17.7" (450 mm)

Drilling Depth Capability: Up to 300x Electrode Diameter

Guide Shoe to Table: 2" min / 12.5" max

Hold-Down Inserts: 9x M8

Power: 220 Volts / 3 KVA

Discharge Current: 30 Amps Mean / 57 Amps Peak

Approx. Dimensions: 23.5" x 25" x 78" H

Approx. Machine Weight: 700 lbs (318 kg)

Cast Bridge Design

Precision-Lapped Granite Worktable

Servo-Controlled Head with On/Off Time and Amperage Gauges

Independent Volt/Amp Meter for Fine Servo Control

XYZ DRO

Drill Depth Input

Electrode Retract Input

Auto Mode

Automated Initial Zero Set

Discharge on Timer

Inch/Metric Conversion

Voltmeter & Ammeter

Separate Chiller Cabinet

Wall-Mounted Transformers

Work Tank with Flushing

B Axis: false
C Axis: false
Control Make Model: XYZ DRO
Edm Tank Size: 18" x 16
Edm Type: Hole-Driller
Electrical: 220V / 3 KVA
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Transformer
Max Table Pallet Load: 1000.0
Max Workpiece Weight: 682.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 12" x 12"
X Travel: 12.0
Y Axis: false
Y Travel: 8.0
Z Travel: 16.0
