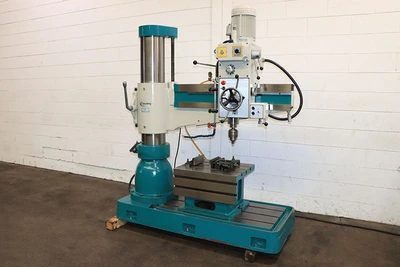

USED 2015 Clausing CL1100

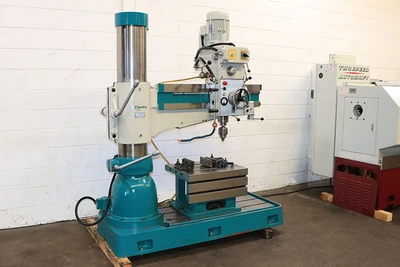

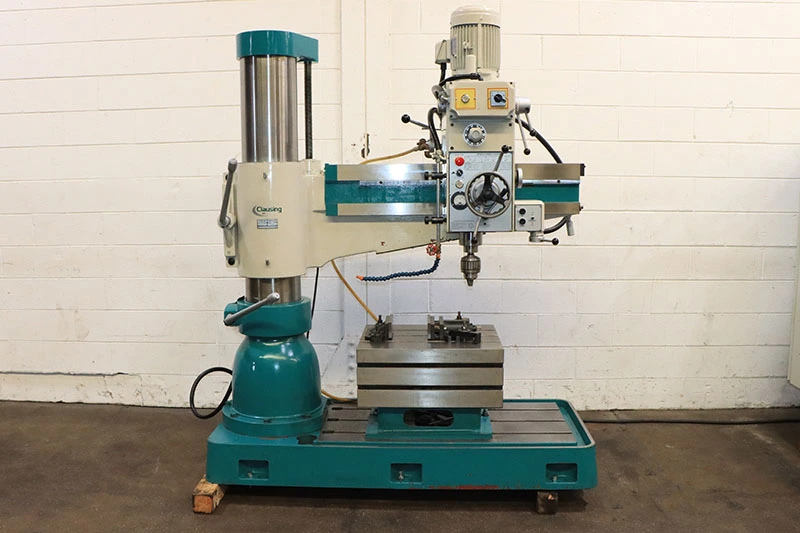

3'6" CLAUSING RADIAL DRILL

MODEL: CL1100,  S/N: 15292,  MFG: 2015

SPECIFICATIONS:

COLUMN DIAMETER ....................... 10.24"

DISTANCE SPINDLE TO COLUMN ............ 11" - 43.3" MIN/MAX

TRAVEL OF SPINDLE HEAD ................ 32.3"

DISTANCE SPINDLE TO BASE  ............. 18.5" - 50" MIN/MAX

VERTICAL TRAVEL OF ARM ................ 31.5"

VERTICAL TRAVEL OF SPINDLE IN HEAD .... 9.05"

TAPER IN SPINDLE ...................... #4 MT

SPINDLE FEEDS (3) ................ .002, .0368 & .006 IPR

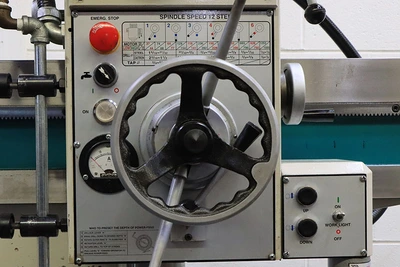

SPINDLE SPEEDS (12) ................... 44 TO 1500 RPM

BASE WORKING SURFACE .................. 48" x 29.1"

DRILLING CAPACITY:

MILD STEEL ............................ 1.65"

CAST IRON ............................. 2.16"

APPROXIMATE WEIGHT .................... 4,500 LBS

OVERALL DIMENSIONS HEAD DOWN ...... 34.2"W x 74.4"W x 87"H

EQUIPPED WITH:

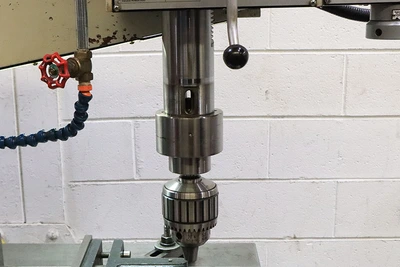

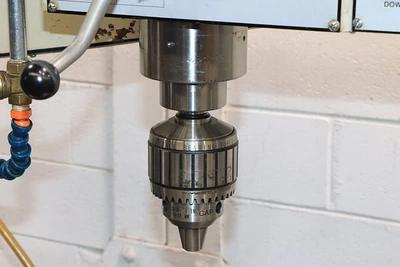

- JACOBS 1" CAPACITY DRILL CHUCK

- T-SLOTTED BOX TABLE

- T-SLOTTED BASE

- POWER CLAMPING OF ARM ON COLUMN

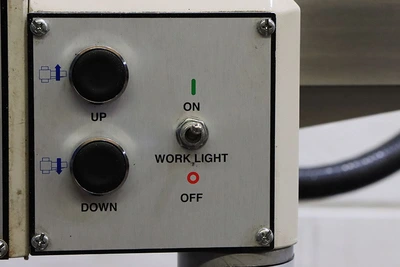

- POWER ELEVATION OF ARM ON COLUMN

- PRECISION HARDENED COLUMN AND ARM WAYS

- COOLANT SYSTEM

- 3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
