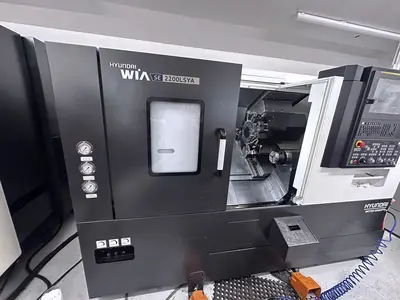

USED 2021 Hyundai WIA SE2200LSYA
Overview
Used Hyundai WIA SE2200LSYA CNC Lathe 2021 delivers powerful multi-axis turning, milling and drilling for complex parts in one setup. Boost production, reduce setups and machine demanding components with precision. Ideal for automotive, aerospace, medical, oil & gas and job shops. Add proven CNC capability to your operation today.
Specs
Swing over bed / carriage: Ø600 mm (23.6")
Max Turning Diameter: Ø300 mm (11.8")
Max Turning Length: 529 mm (20.8")
Bar Capacity (Main/Sub): Ø51 mm (2") / Ø32 mm (1.3")
Chuck size (main/sub): 6" / 5"
Spindle bore (main/sub): Ø60 mm / Ø42 mm
Spindle nose (main): A2-5
Spindle Speed (Main/Sub): 6,000 rpm
Main Spindle Motor: 15/11 kW (20/15 HP)
Sub-Spindle Motor: 7.5/3.7 kW (10/5 HP)
C-axis (main and sub): 0.001° indexing
Travel, X / Y: 210 mm (8.3") / 110 mm (4.3", ±55 mm)
Travel, Z / ZB: 560 mm (22") / 599.3 mm (23.6")
Rapids: X 30 / Y 10 / Z 36 / ZB 15 m/min
Guideways: Roller LM guide, 30° slant bed

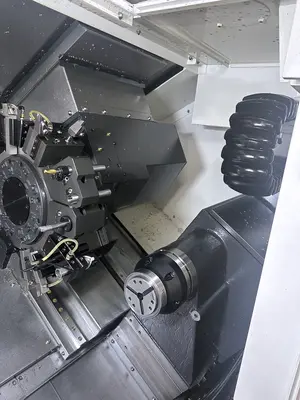

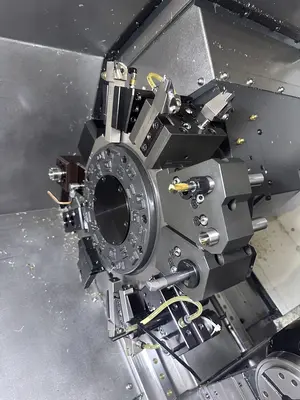

Turret: BMT45, 24 Station, 0.15 sec index
Tool Size: 20 mm (3/4") OD square shank, Ø32 mm (1-1/4") ID

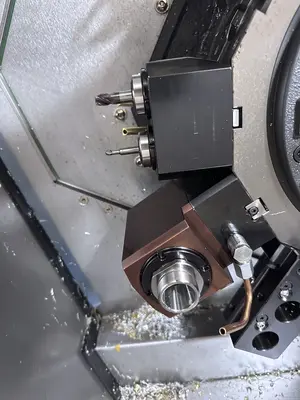

Live Tooling: 6,000 rpm, 3.85/2.59 kW, ER20 collets
Y-axis type: Wedge type
Coolant Tank: 200 L (52.8 gal)
Footprint (L x W): 2,960 x 1,730 mm (116.5" x 68.1")
Height: 1,920 mm (75.6")

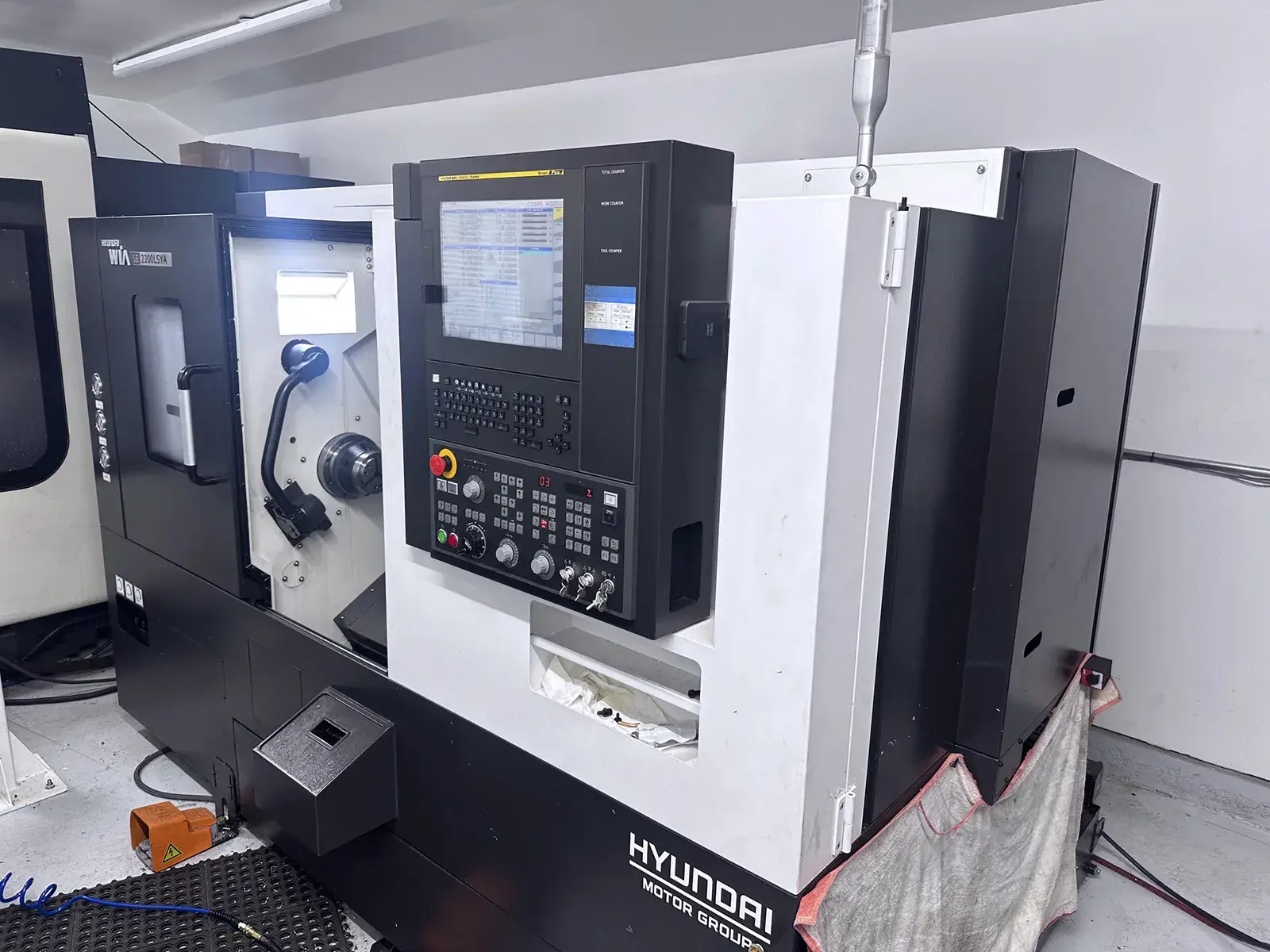

Control: Hyundai WIA FANUC i Series Smart Plus, 15" touchscreen
Equipped With

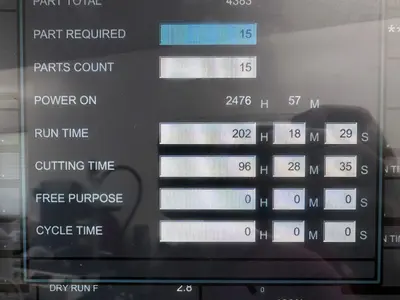

Only 96 Cutting Hours
15" touch screen FANUC i Series Smart Plus Control
Samchully Chuck Main + Sub
Royal Collet Nose Main + Sub
Tool Pre-Setter
Sub Spindle
Y-Axis

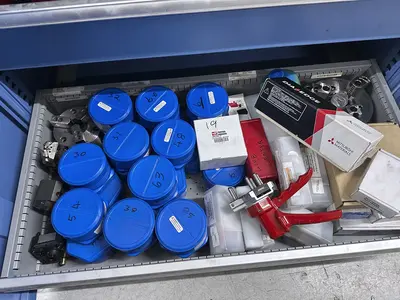

Tool Holders
Parts Catcher
Coolant Tank
Chip Conveyor
