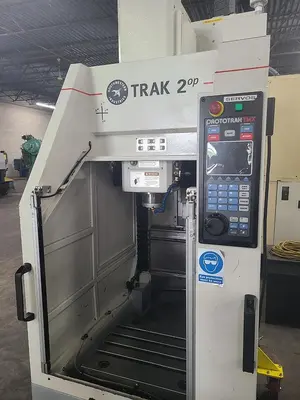

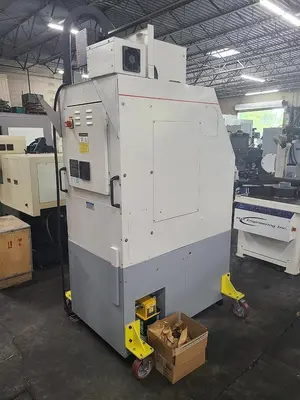

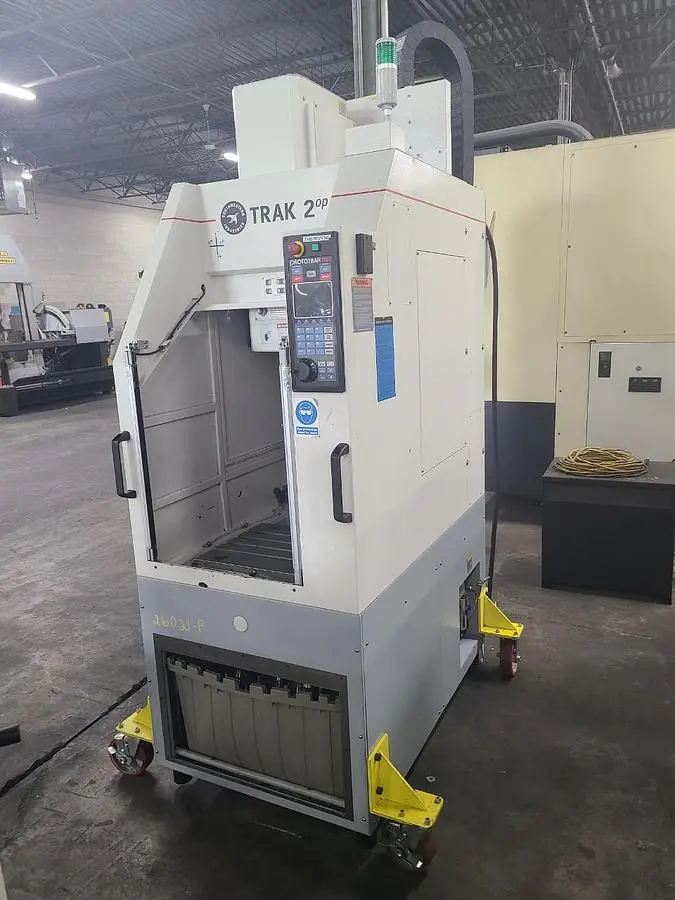

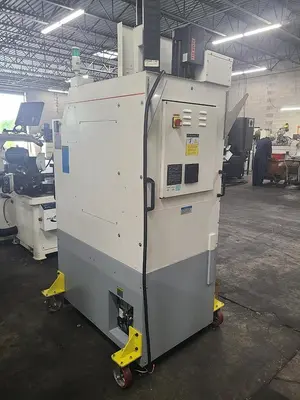

USED 2014 SOUTHWEST INDUSTRIES TRAK - 2OP - M10 - MILL

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $19,500.00

HMC Stock # 26021
Serial # 142DQ602
Model: Trak - 2OP - M10 - Mill
Year: 2014

Table Size: 18" LR x 15" FB
Table Load Capacity: 500 Lbs.
Travels:
X Axis: 14" (Head Travels on Rail)
Y Axis: 12"
Z Axis: 17"
Max. Distance Spindle Nose to Table: 20.25"
Min. Distance Spindle Nose to Table: 2.75"
Spindle Center to Column Face: 14"
Quill Diameter: 2.2"
Spindle Taper: BT-30
Spindle Speeds: 250 - 5,000 RPM Variable
Rapid Speeds: 500 IPM

EQUIPPED WITH:
TMX Control
(8) Position Tool Changer
5" Touch Screen
(2) USB Ports
Electric Hand Wheel
Rigid Tapping
Ball Locks Built into Table
(16) BT 30 Tool Holders
Mounted on Caster Wheels
NO Coolant Pump
3 HP Main Motor
Wired for 3 Phase, 60 Cycle, 440 Volts
Overall Size: 48" LR x 53" FB x 99" High x 2,500 Lbs.

NOTE: The door on this machine has been removed and is missing. The door opening has been fitted with light curtains.
