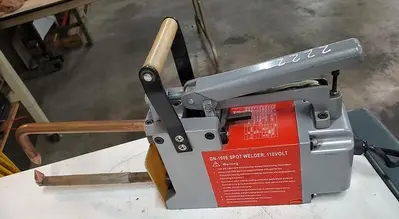

USED C.M.T. DN-100E

C.M.T PORTABLE SPOT WELDER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $375.00

HMC Stock # 22223
Machine Serial No.:
Machine Model No.: DN-100E
New Date: Unknown

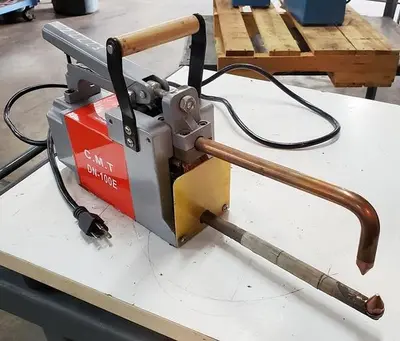

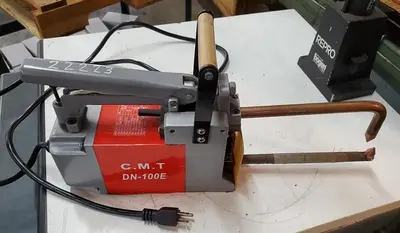

Rocker Arm Style, Hand Operated
(2) Copper Welding Arms with Pointed Tips
NOTE: Upper arm is 9-1/4" long and lower arm is 10-5/8" long. The tips
do not line together unless the lower arm is shortened or the upper
arm is replaced.

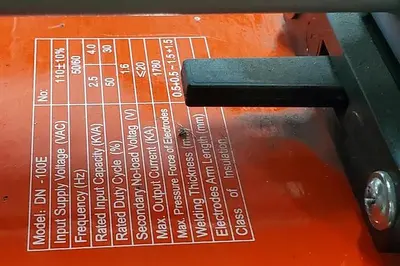

Rated Input Capacity @60 Hz: 4 KVA
Rated Duty Cycle @ 60 Hz: 30%
Secondary No Load Voltage: 1.6
Max. Output Current: -<20
Max. Pressure Force of Electrodes: 1780
Welding Thickness @ 60 Hz: 1.5+1.5 mm (0.059"+0.059")
Electrode Arm Diameter: 0.625"
Electrodes Arm Length Recommended: 200 mm (7.87")
Manual Air-Cooled Operation Only
Input Supply Voltage: Single Phase, 50/60 Hz, 110 Volts

Overall Size: 20" x 4" x 10" High
