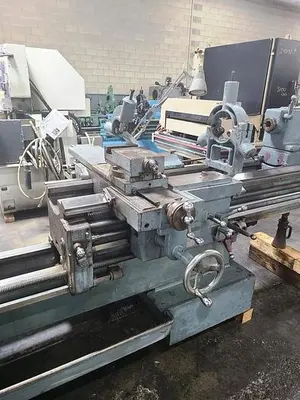

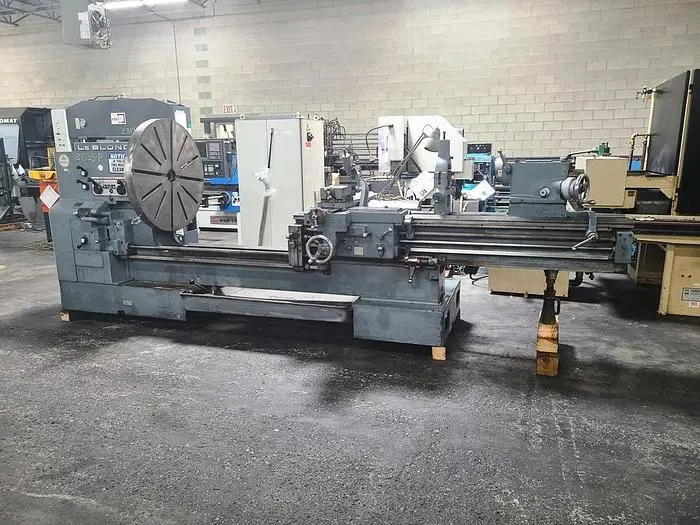

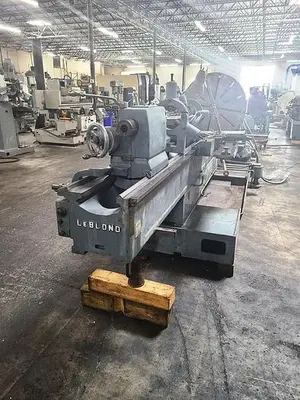

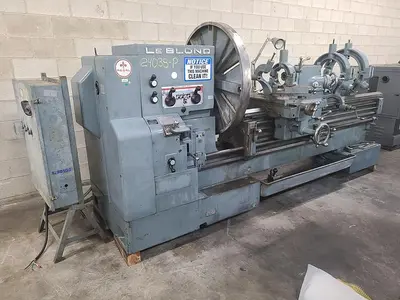

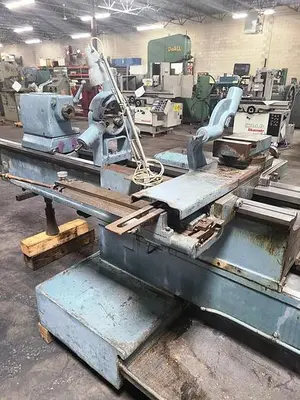

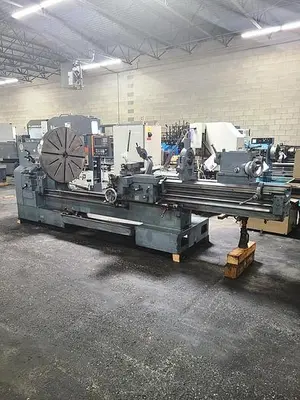

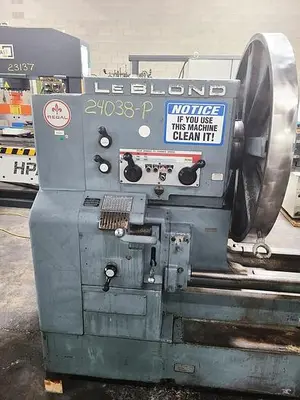

USED 1962 LEBLOND SLIDING GAP BED

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $39,500.00

HMC Stock # 24038-P
Machine Serial No.:  3F-507
Machine Model No.:  24" Regal
New Date:  1962

Spindle Bore:  2-1/8"
Swing Over Ways, Bed Closed:  26-1/4"
Swing in Gap:  52-1/2" Maximum
Distance Between Centers, Bed Closed:  72"
Distance Between Centers, Bed Open:  116"
(12) Spindle Speeds:  27 to 1080 RPM
(48) Feeds:  .0036" to .205" per Revolution
(48) Threads:  2 to 112 TPI
#5 Morse Taper in Tailstock Quill
Tailstock Quill Diameter:  3-1/8"
Tailstock Quill Travel:  8"
Swing Over Cross Slide:  18-1/4"
Spindle Nose:  L2
Overall Length, Bed Extended:  16'

EQUIPPED WITH:

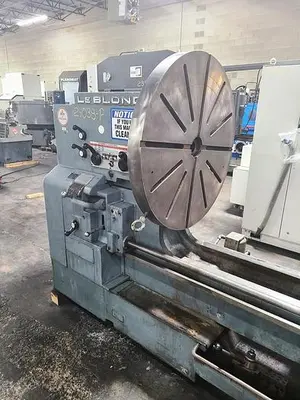

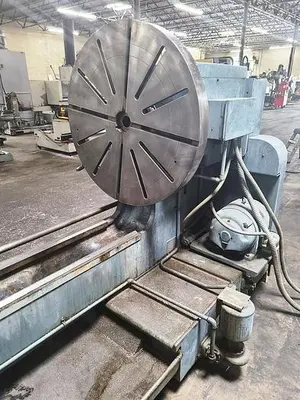

38" Diameter Face Plate
Taper Attachment

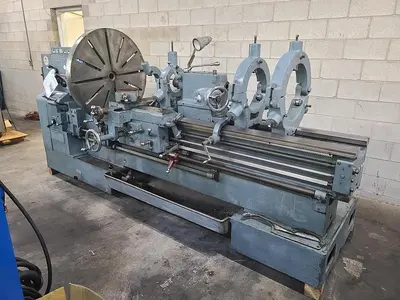

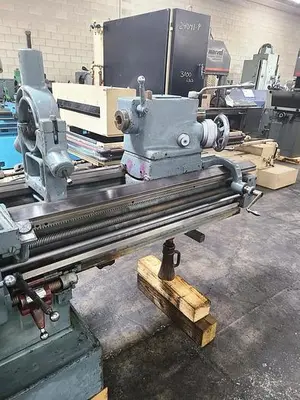

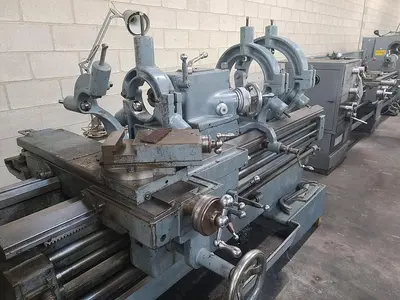

7" Roller Type Steady Rest
Follower Rest
Quick Change Tool Post
Removable Chip Pan
Hard Replaceable Bed Ways, Very Good Condition
Thread Chasing Dial
Inch Graduated Dials on Cross Slide and Top Components
NO Bed Support for Extended Operation
Missing (1) Bed Clamp
Coolant Pump, Wired for 3 Phase, 60 Hz, 230/460 Volts
15 HP Spindle Motor, Wired for 3 Phase, 60 Hz, 230/460 Volts
Overall Size, Closed for Shipping:  148" LR x 70" FB x 70" High
