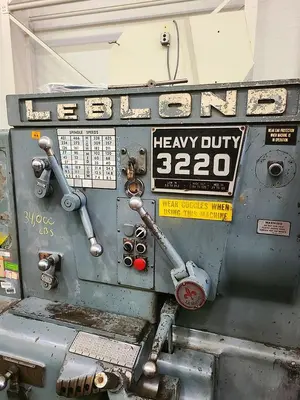

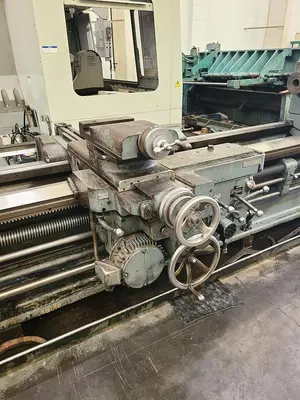

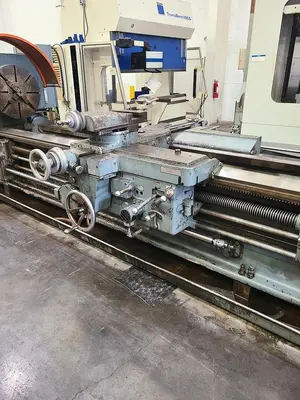

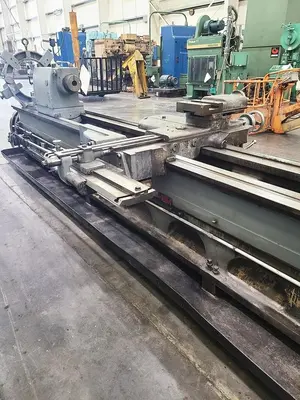

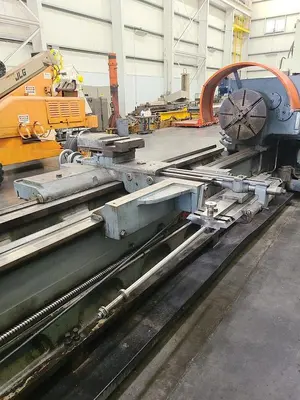

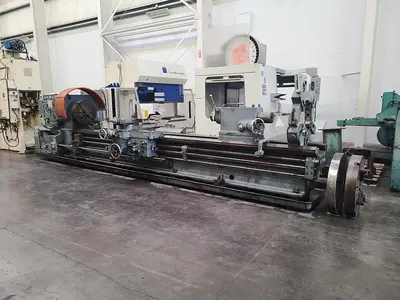

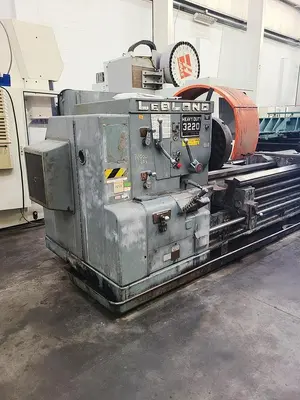

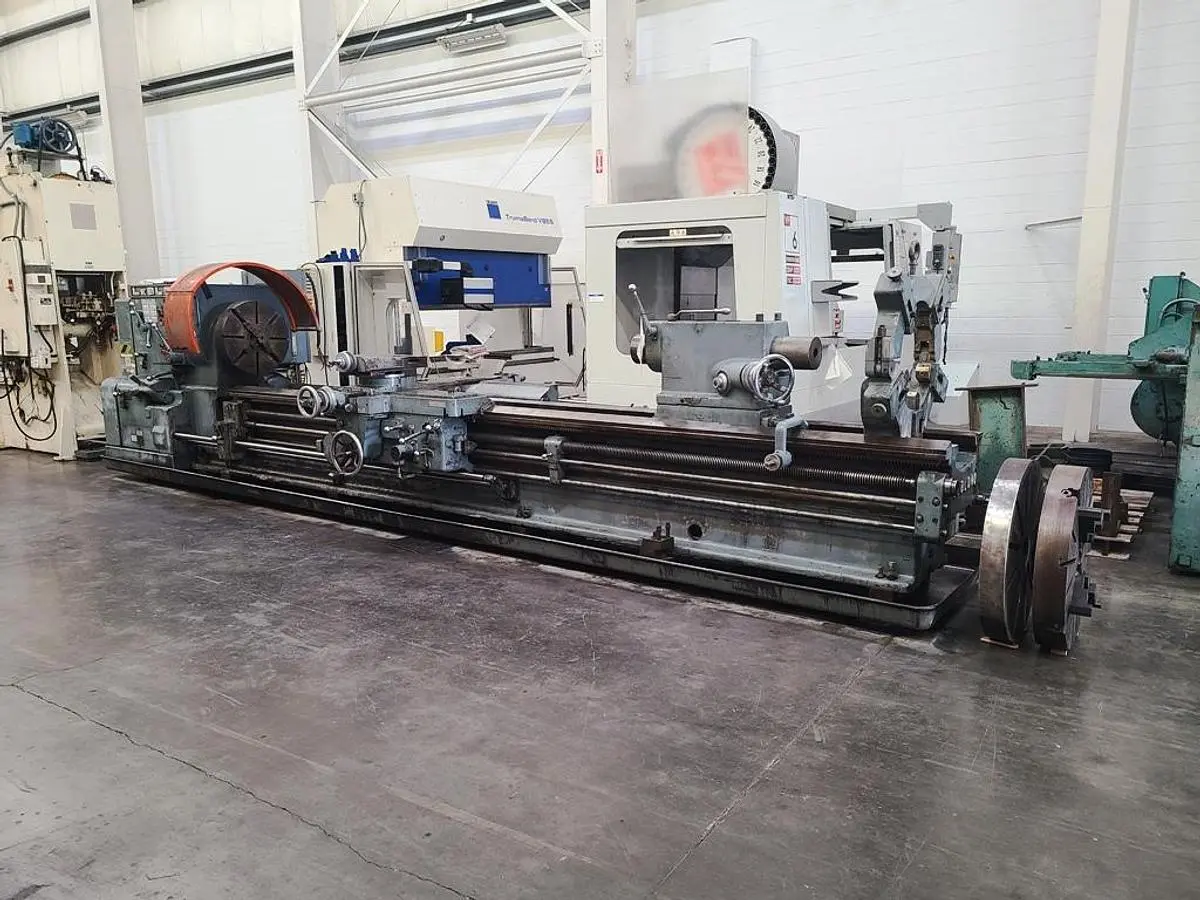

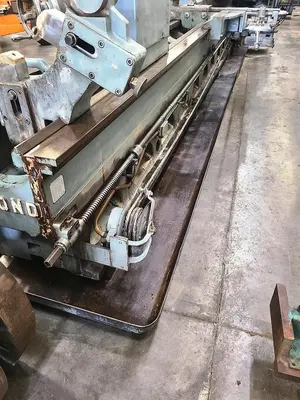

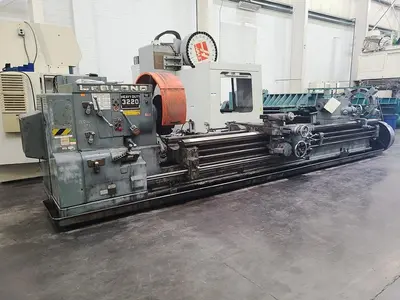

USED 1962 LEBLOND 3220/58-NI HEAVY DUTY

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $119,500.00

HMC Stock # 25023-P

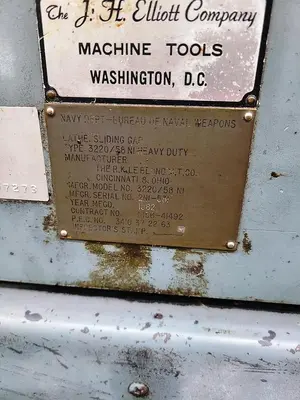

Serial No.: 2NI-531
Model: 3220/58-NI Heavy Duty
Year: 1962

Overall Bed Length: 220"
Center to Center Distance (Bed Close Accounting for Tailstock): 204"
Center to Center Distance (Bed Open Accounting for Tailstock): 311"
Swing Over Ways (Bed Closed): 36"
Swing Over Ways (Bed Open): 58"
Overall Bed Width: 26"
Spindle Nose: L3
Spindle Speeds: (48) 5.5 - 625 RPM
(48) Feeds: .004" - .250" Per Rev.
(48) Threads: 3/4 - 46 Thread Per Inch (Inch Threading Only)
Hole Through Spindle: 3"

EQUIPPED WITH:

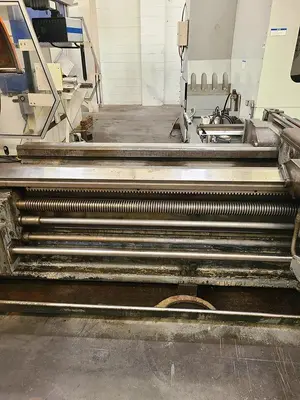

Hard Replaceable Ways
Taper Attachment
Rapid Traverse

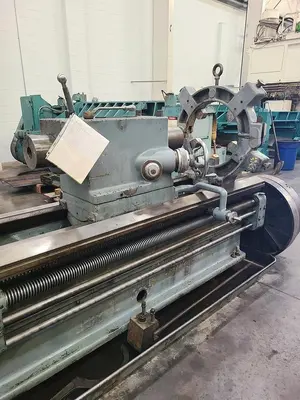

2-Speed Tailstock
Spindle Jog

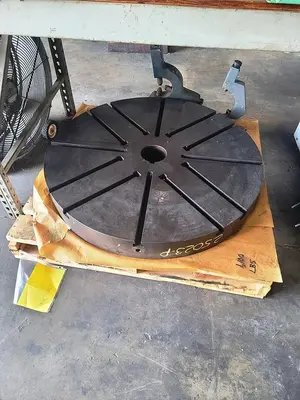

45" Diameter Face Plate
33" Diameter Face Plate

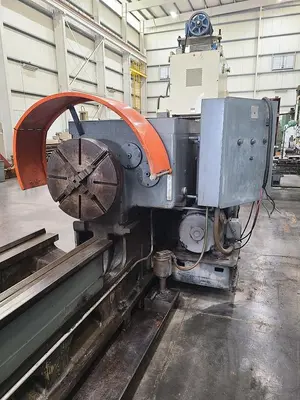

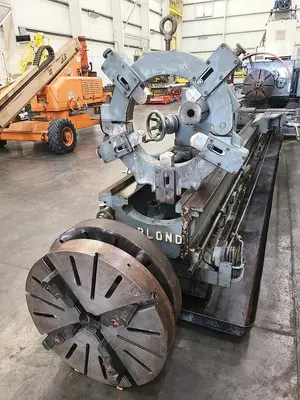

32" Diameter 4 Jaw Chuck
24" Diameter 4 Jaw Chuck
20" (Through Hole Diameter) 5 Post, Bronze Bushing
Coolant Pump
Coolant Pan (Machine is Bolted to Steel Blocks Welded Inside of the Coolant Pan)
Manual (Purchased from Leblond)
40 HP Main Motor
Wired for 3 Phase, 60 Cycle 440, Volts

Overall Size: 300" LR x 88" FB x 75" High x 34,000 Lbs.
