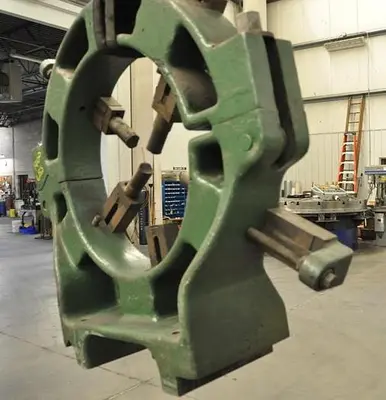

LEBLOND 5 POINT HEAVY DUTY STEADY REST

LEBLOND 5 POINT HEAVY DUTY STEADY REST
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00

HMC Stock No. 18390
Serial No. Unknown
Model No. Unknown
New Date: Unknown

This Steady Rest Was on an Early 1940s Vintage 48" Swing Leblond Heavy Duty Lathe, Model NQ.

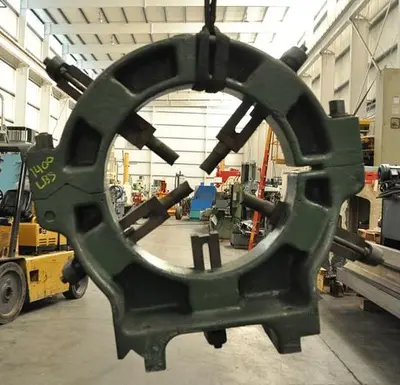

26-3/4" Dia. Hole
Heavy Cast Iron Construction

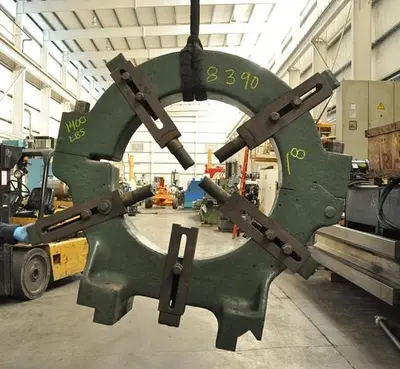

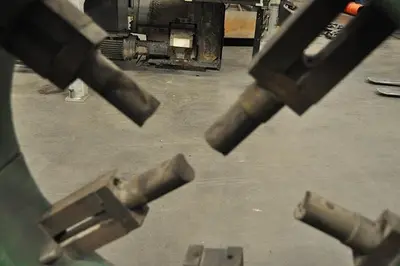

(5) Jaw Slides 14" Long x 4" Wide x 2-1/4" Thick
Each Slide has an Adjusting Screw
Each Slide has 6" Travel

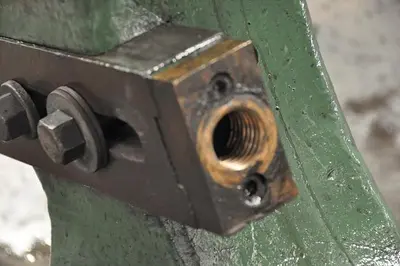

Each Slide End has a 1-13/16" Wide Slot & (2) 1/2" x 13 Tapped Holes on
2-1/2" Centers for Interchangeable Ends
Center Height from Flat Way to Center of the 26-3/4" Dia. Hole: 22-1/2"
Distance Center Flat Way to Center of V Way: 24"
(4) 7/8" Dia. Holes on 11" Centers to Secure the Plates that Clamp the Steady Rest to the Bed
(WE DO NOT HAVE THE CLAMPING PLATES)
The Top Half of the Steady Rest Lifts Off via Eye Bolt 1" x 8

Overall Dimension: 4' Long x 14" Wide x 4' High
Weight: 1,400 Lbs.
