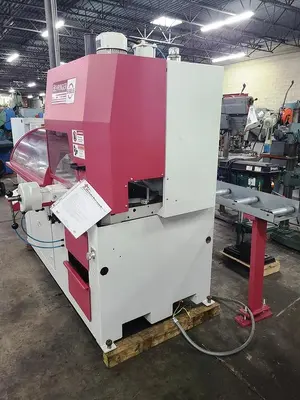

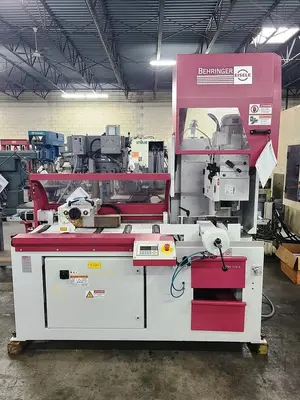

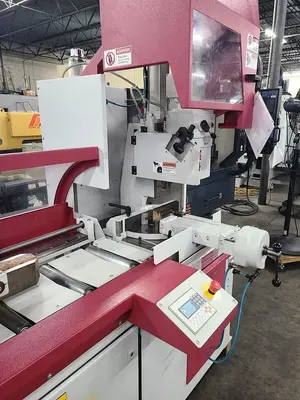

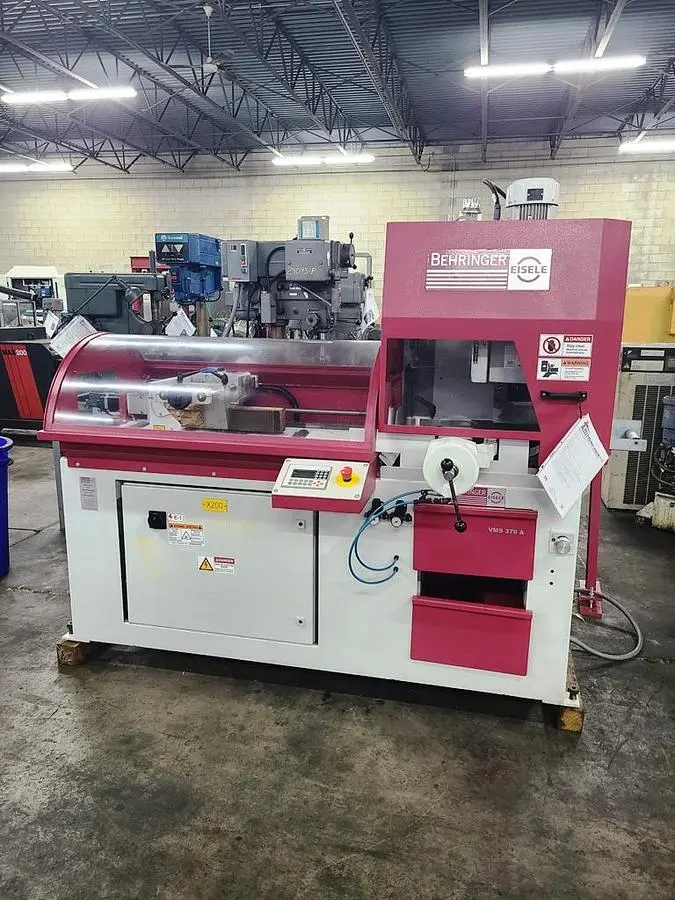

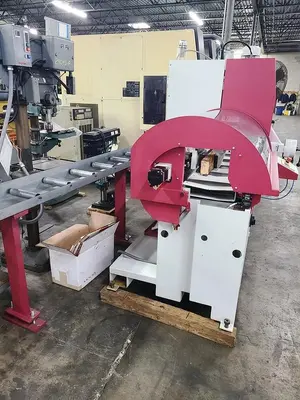

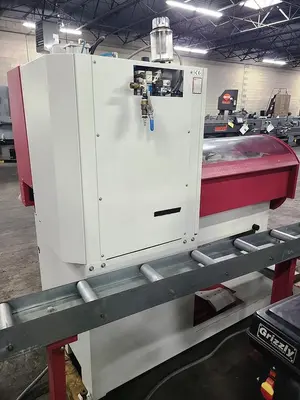

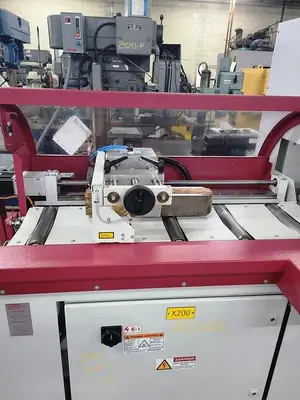

USED 2019 BEHRINGER VMS 370 A

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $22,500.00

HMC Stock # 25020
Serial No.: 10014023
Model: VMS 370 A
Year: 2019

Operating Pressure: 72.52 - 116.03 PSI (5 - 8 Bar)
Cutting Range:
   Flat Material: 7.87" (200 mm)
   Round Material: 5.12" (130 mm)
Cutting Range:
   Square: .39" - 3.94" (10 - 100 mm)
   Rectangular: .79" x .39" - 7.87" x 3.94" (20 x 10 mm - 200 x100 mm)
   Round Material: .39" - 5.12" (10 - 130 mm)
Saw Blade: 14.57" (370 mm)
Number of Programmable Pieces: 1 - 99999
Cutting Range:
   Rectangular 90° (Straight Cut): 3.94" x 3.94" - 7.87" x 3.94" (10 x 10 mm - 200 x 100 mm)
   Rectangular 45° Bevel: 3.94" x 3.94" - 5.51" x 3.94" (10 x 10 mm - 140 x 100 mm)
   Round Material 90° (Straight Cut): 3.94" - 5.12" (10 - 130 mm)
   Round Material 45° (Bevel): 3.94" - 5.12" (10 - 130 mm)
Saw Blade Speeds: 8, 16, 32, 64
Mitre Angle: Mitre Cutting to 60 Degrees (Depending on the type of saw fitted)
Travel Distance of Material Feed Axis: 31.50" (800 mm)
Cutting Length Range: .39" x 236.22" (10 - 6000 mm)
Length of First Cut: 0" - 11.81" (0 - 300 mm)
Clamping Stroke: .39" (10 mm)
Clamping Force: 300 - 3000 N 97.02 PSI (6 Bar) & 400 - 4000 N 116.03 PSI (8 Bar)
Adjustable Path/Length of Clamping Jaw - Manual Adjustment: 7.87" (200 mm)
Material Feed Rate: 0 - 708.66 IPM (0 - 18 m/min)
Compressed Air Supply: Continuously 101.53 PSI (7 Bar)

EQUIPPED WITH:

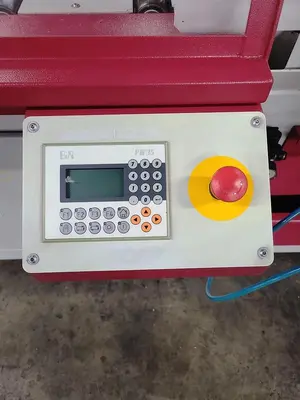

PW 35 Control

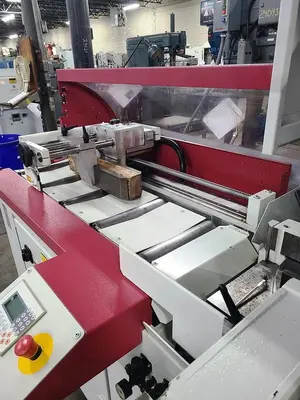

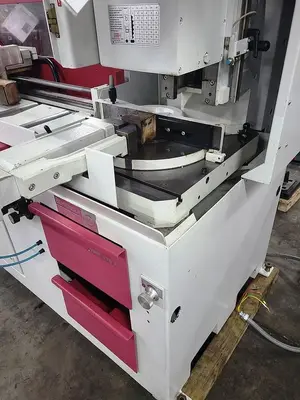

Manual / Pneumatic Vise

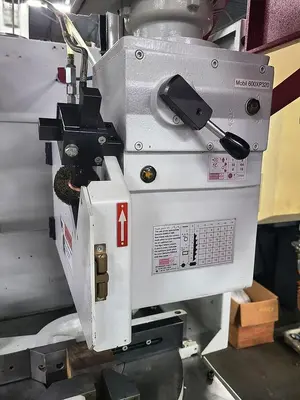

Manually adjustable Mitre Saw Head
Removable Chip Pan
Lift Up Guarding
Part Exit Chute
120" Section of Manual Roller Conveyor

Wired for 3 Phase, 60 Cycle, 400 Volts

DIMENSIONS:
Overall Machine Size: 84" LR x 55" FB x 78" High x 1,764 Lbs.
Manual Conveyor: 120" LR x 10" FB x 36" High
