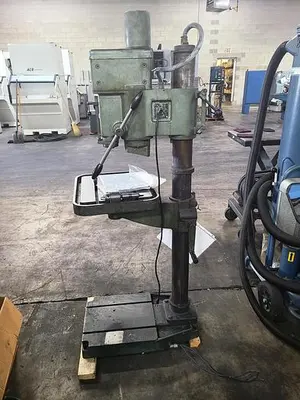

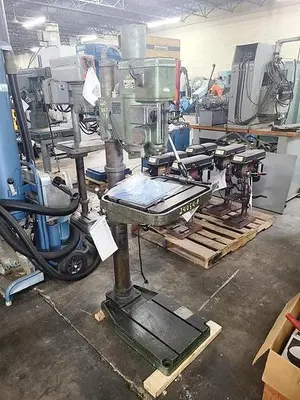

USED ARBOGA GL-2524

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $4,000.00

HMC Stock # 24054-P
Machine Serial No.:  270446
Machine Model No.:  GL2524
New Date:  Unknown

Spindle Taper:  #3 Morse
Maximum Drill Capacity:  1-1/4"
Table Size:  20" x 16" with (2) T-Slots
Distance from Column to Head:  6-3/4" Max.
Distance from Base to Column:  64-1/2"
Distance Between Table and Head:  37-1/2" Max.
Centerline of Spindle to Edge of Quill Handle:  5-1/8
Centerline of Spindle to Edge of Elevation Handle:  7-1/2"
Diameter of Column:  4"
Distance Column to Center of Spindle:  12"
(36) Spindle Speeds:  16 to 4245 RPM
Working Surface of Base:  22" x 16" with (2) T-Slots
Hold Down Hole:  5/8"
Distance Between Hold Down Holes:  24"
Distance Center of Column to Elevation Crank:  10-1/4"
Distance Spindle to Base:  50-5/8" Max.
Quill Travel:  6"

EQUIPPED WITH:
Reduction Gear Box with (4) Gears for Ultra Low Speeds
1 HP Main Motor, Wired for 3 Phase, 220 Volts

Overall Size:  24" LR x 30" FB x 68" High x 500 Lbs.
