LEBLOND 4 POINT HEAVY DUTY ROLLER STEADY REST
Overview

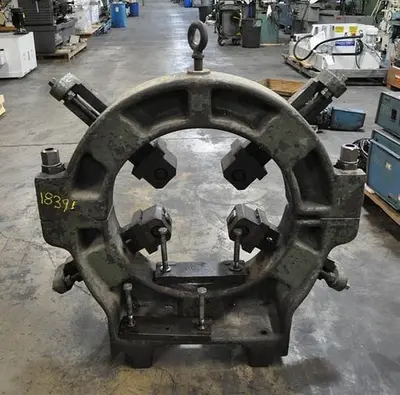

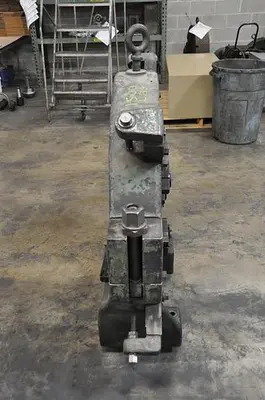

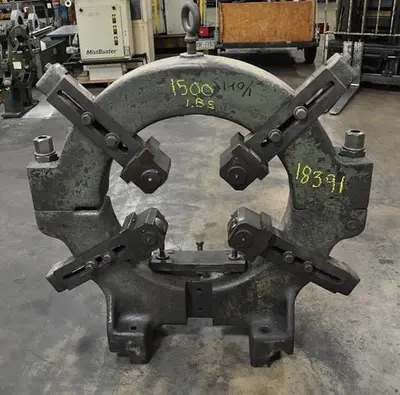

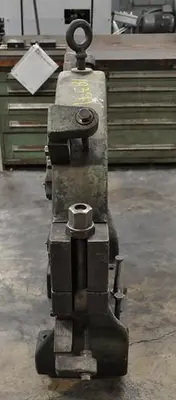

26" LEBLOND 4 POINT HEAVY DUTY ROLLER STEADY REST
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
HMC Stock No. 18391
Serial No. Unknown
Model No. Unknown
New Date: Unknown
This Steady Rest Was on an Early 1940s Vintage 48" Swing Leblond Heavy Duty Lathe, Model NQ.
26-1/2" Dia. Hole
Heavy Cast Iron Construction
(4) Jaw Slides 13-1/2" Long x 4" Wide x 2-1/4" Thick
Each Slide has an Adjusting Screw
Each Slide has Approx.6" Travel
Each Slide End has a 1-13/16" Wide Slot & (2) 1/2" x 13 Tapped Holes on
2-1/2" Centers for Interchangeable Ends
Distance Center of Flat Way to Center of V Way: 24"
Distance from Flat Way to the Center of Steady Rest Hole: 23"

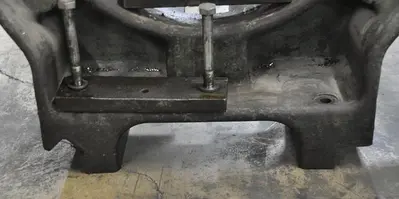

(2) Clamp Plates with 7/8" Dia. Bolts to Secure Steady Rest to Lathe Bed

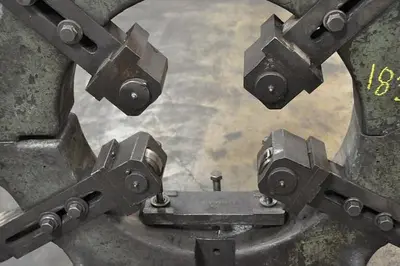

(4) Removable Roller Bearings on Jaw Slides
Top Half of the Steady Rest Lifts Off via 1" x 8 Eye Bolt
Overall Dimension: 4' Long x 14" Wide x 4' High
Weight: 1,400 Lbs.
Specs
Size: 26"
(4) Jaw Slides: 13-1/2" Long x 4" Wide x 2-1/4" Thick
