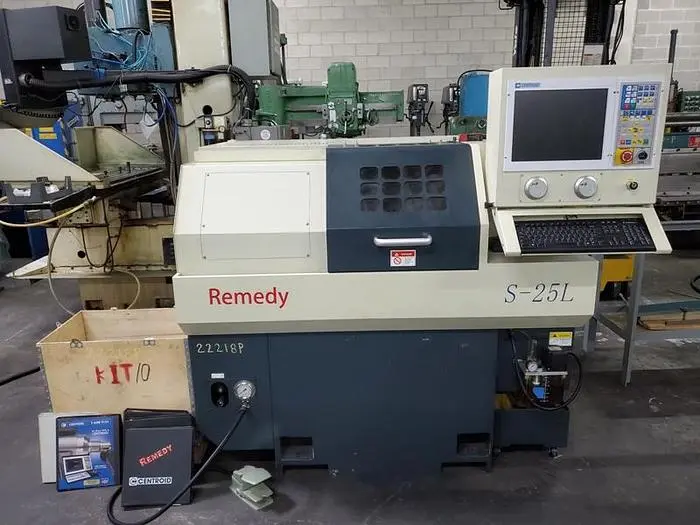

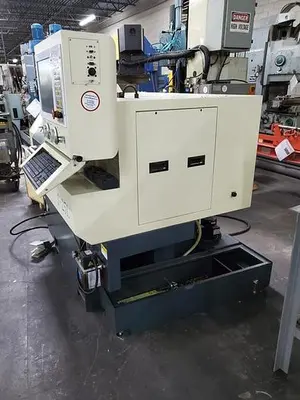

USED 2018 REMEDY S25L

REMEDY CNC GANG TOOL LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $15,500.00

HMC Stock # 22218-P
Machine Serial No.: 100161
Machine Model No.: S25L
New Date: 2018

Maximum Machining Diameter: 1"
Maximum Bar Capacity: 1"
Maximum Turning Length: 4.7"
Maximum Longitudinal X Axis: 7.8"
Maximum Cross Travel Z Axis: 6.2"
Rapid Traverse: 640 IPM
O.D. Tool Size: 5/8"
I.D. Tool Size: 5/8"
Collet Chuck Size: 1"
Spindle Speeds: 50-6000 RPM
Spindle Nose: A2-4
Rigid Tapping
Programmable Coolant System
Auto Lube System
Quartz Light
Hardened and Ground with Turcite B Coating
Guide Ways
Precision Double Nut Ball Screws Hardened
and Ground
Linear Guides on X and Z Axes
Air Dryer and Oiler

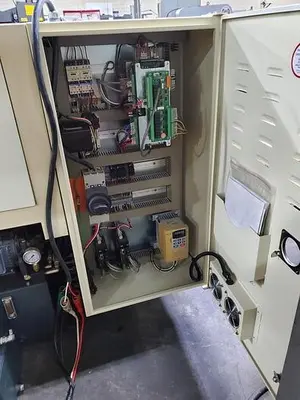

6 GB Solid State Hard Drive Control

EQUIPPED WITH:

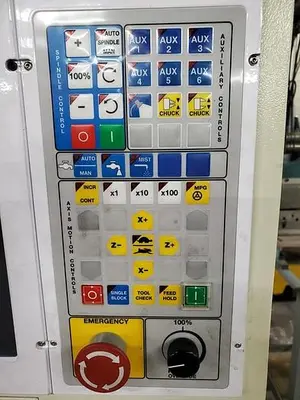

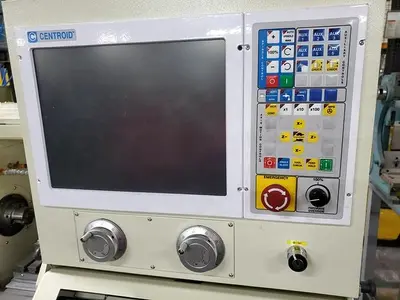

Centroid Model T400W CNC Control
Foot Pedal

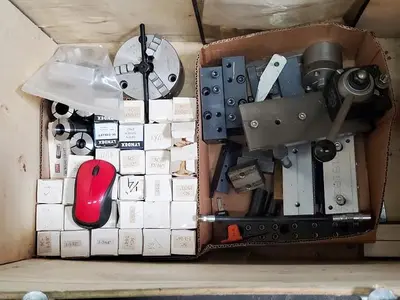

4" Manual 3-Jaw Chuck

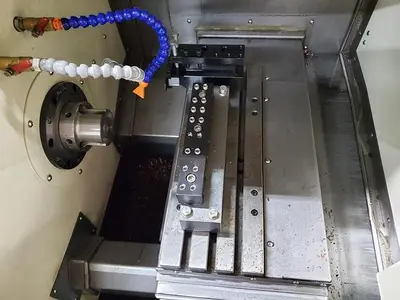

Assorted Additional Gang Tool and Back
Working Style Tool Holders
Assorted 5C Collets

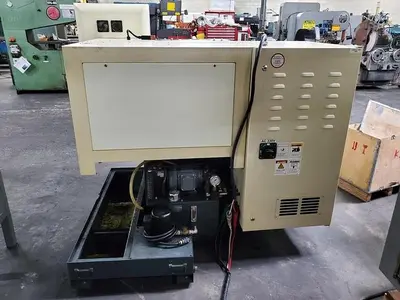

Removable Chip Pan
Coolant Pump
Aloris AXA Tool Post and Holder

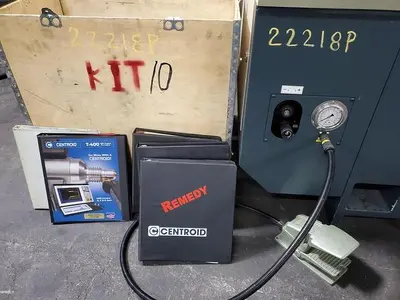

Centroid Control Manual

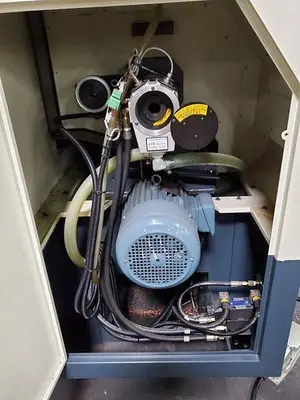

3 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

DIMENSIONS:

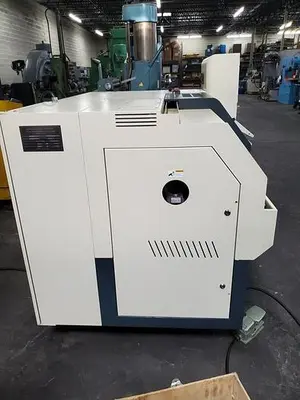

Machine: 80" LR x 55" FB x 64" High x 3,000 Pounds
Tooling: 24" LR x 15" FB x 24" High
