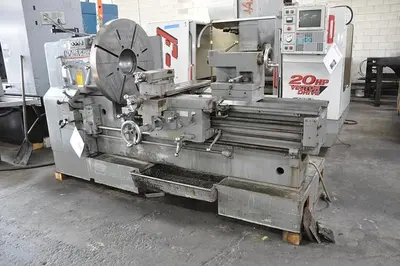

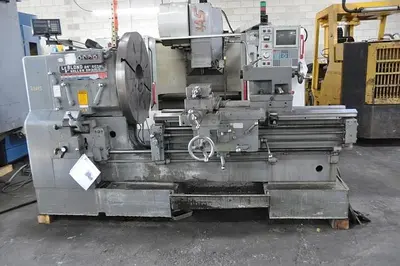

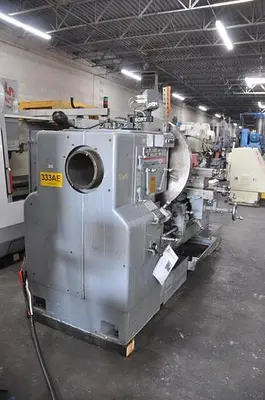

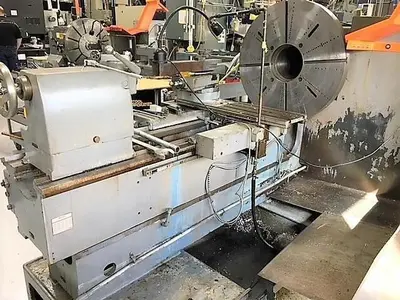

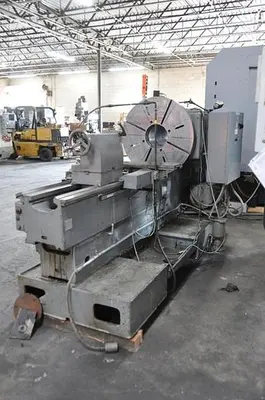

USED 1977 LEBLOND 24" REGAL

LEBLOND 24"/39" x 52"/84" SLIDING GAP BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $39,500.00

HMC Stock # 21015
Machine Serial No.: 6HS-338
Machine Model No.: 24" Regal
New Date: 1977

9" Spindle Thru Hole
Swing Over Ways, Bed Closed: 26-1/4"
Swing Over Bottom Ways, Bed Open: 54"
Swing in Gap: 52-1/2" Max.
Distance Between Centers (bed closed): 48"
Distance Between Centers (bed open): 84"
(12) Spindle Speeds: 6 to 400 RPM
(48) Feeds: .0036" to .205" Per Revolution
(48) Threads: 2 to 112 TPI
#5 Morse Taper in Tailstock Quill
Tailstock Quill Diameter: 3-1/8"
Tailstock Quill Travel: 8"
Swing Over Cross Slide: 18-1/4"
Spindle Nose: 15.00" Diameter A Series Bolt On

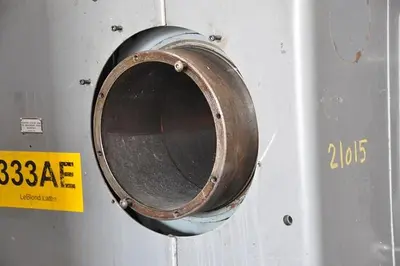

10-5/16" Diameter Spindle Tube End
Rear - Not Threaded

EQUIPPED WITH:

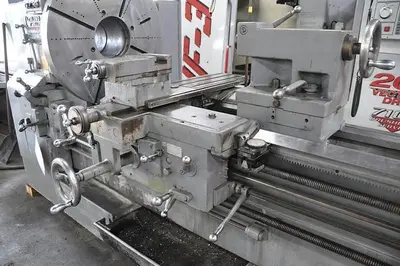

34" Diameter Face Plate
Machine Work Light
Removable Chip Pan
Hard Replaceable Bed Ways, Very Good Condition

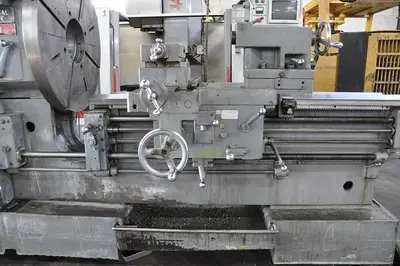

Trav-A-Dial on Carriage, NO Thread Chasing Dial

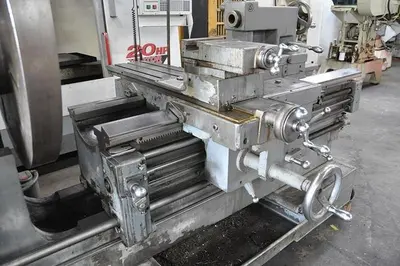

Inch Graduated Dials on Cross Slide and Top Components
Tailstock Clamp Wrench

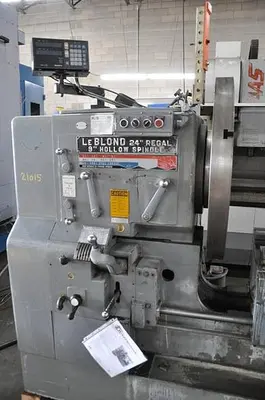

Sony LH52 2X Digital Readout
Variable Power Spindle Brake Control
Removable Rear Splash Guard
Swing Up Removable Chuck Face Plate Guard
NO Bed Support for Extended Operation
1/4 HP Gusher Coolant Pump with Piping, Wired for 3 Ph, 60 Hz, 230/460 Volts
15 HP Spindle Motor, Wired for 3 Ph, 60 Hz, 230/460 Volts
Presently Wired for 440 Volts

Overall Size, Closed for Shipping: 117" LR x 53" FB x 64" High (on 3-1/2" blocks) x approx. 6500 Lbs
DRO, Work Light and Chuck Guard Removed
