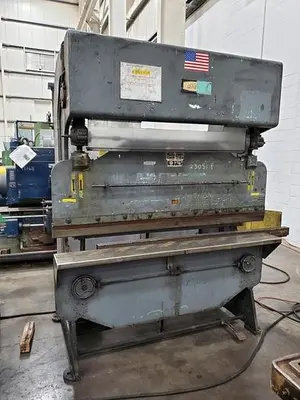

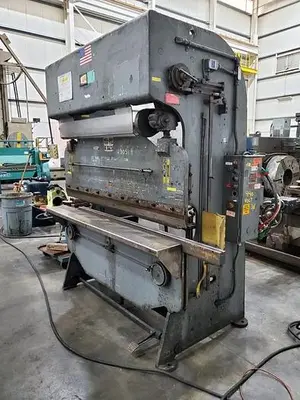

USED DIACRO 14-72 HYDRA POWER M72

6' X 35 TON DIACRO HYDRAULIC PRESS BRAKE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00

HMC Stock # 23051-P
Machine Serial No.: JG1228
Machine Model No.: 14-72 Hydra-Power M72
New Date: Unknown

Ram and Bed Length: 72"
Clear Distance Between Housings: 5' 2"
Rated Capacity: 6' x 14 Ga. Mild Steel
Ram Stroke: 2"
Ram Adjustment: 3"
Center of Die to Frame, Throat: 9"
Die Space, Stroke Down Adjustment Up: 9"
Distance Floor to Machine Bed: 34"
Variable Ram Stoke Speeds: 7 to 29 SPM
Speed Control Settings: Slow – Fast, Dual

EQUIPPED WITH:
Dual Speed Operating Cycle with Power Work Stroke
60" Long Back Gauge Bar with Manual Height and In – Out Adjustment
Independent Manual Ram Adjustment Each Side with Position Indicator
(4) Unisorb Vibration Mounting Pads
Mechanical Foot Pedal Operation Control
Flush Floor Design
(1) Bottom Die Holder 73" Long

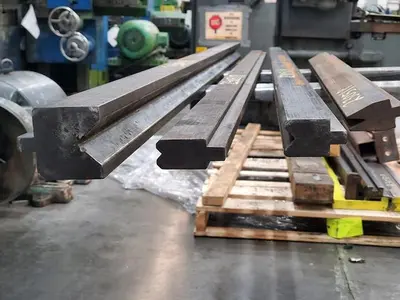

(2) V Shaped Bottom Dies 73" Long

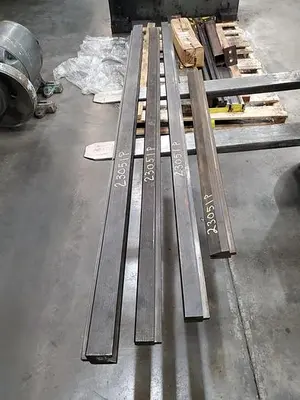

(4) Assorted V Punches (3 are 72" Long) (1 is 40" Long)

3 HP Motor
Wired for 3 Phase, 60 Hz, 440 Volt Operation

Overall Size: 100" LR x 62" FB x 92" High x 5,500 Lbs.
