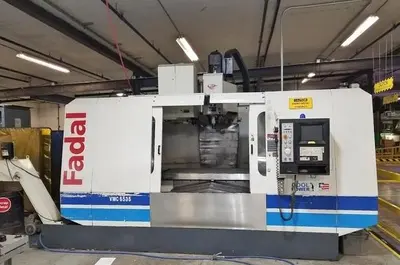

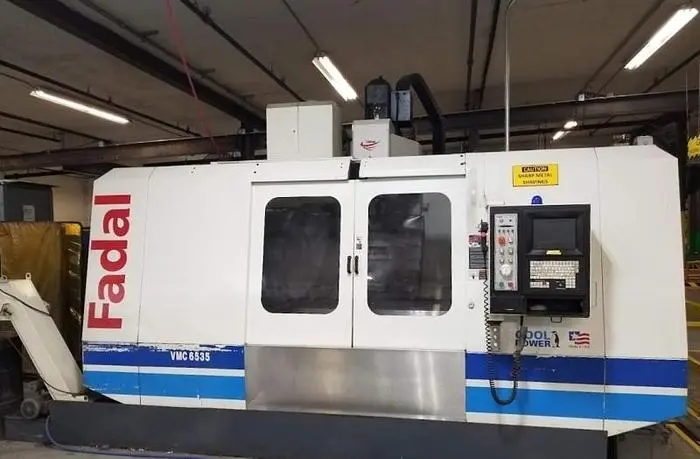

USED 2002 FADAL VMC-6535-50

FADAL VERTICAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA ……… $35,000.00

HMC Stock # 22192-P
Machine Serial No.: 012002064380
Machine Model No.: VMC-6535-50
New Date: 2002

SPECIFICATIONS:
Table Length: 74.8"
Table Width: 26.5"
Table Capacity: 4,250 Lbs.
X-Axis Travel: 65"
Y-Axis Travel: 35"
Z-Axis Travel: 34"
Spindle Speed: 7,500 RPM
Spindle Motor: 22.5 HP
Spindle Taper: CAT 50
Tool Capacity (ATC): 32
Rapid Traverse X/Y Axis: 900 IPM
Rapid Traverse Z-Axis: 700 IPM
Cutting Feed Rate: 400 IPM

EQUIPPED WITH:

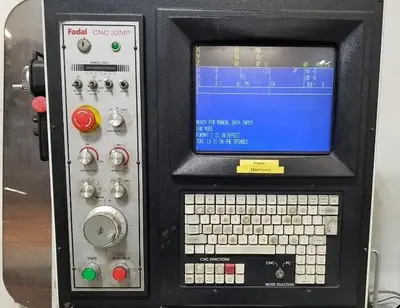

Fadal 32MP CNC Control
Through Spindle Coolant
Wash Down Coolant System

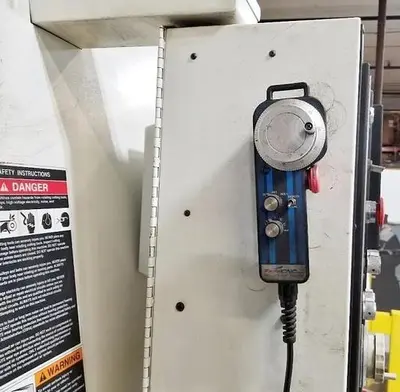

Remote MPG
High Torque Option
Chip Conveyor
High Speed CPU
Graphics
Rigid Tapping
Hard Ground Ways (X/Y/Z)
4 Way Surfaces on Saddle
Dual Ball Screw Supports (X/Y/Z)
422K Expanded Memory
2 Piece Hood Construction Above Doors to Accommodate Lifting Straps
(This is Currently Dismantled and Will Remain That Way for Shipping)
30 Amps @ 460 VAC
Cool Power
Millimeter Ball Screws
30 HP Baldor Vector Drive
25 HP Spindle Motor
Wired for 3 Phase, 60 Cycle, 480 Volts

Overall Size Machine: 180" LR x 128" FB x 117" High x 34,700 Lbs.
Chip Conveyor: 204" LR x 40" FB x 65" High
