Used ABB / Bartolaso / Krones Glass Bottle Filling Line – 12,000 BPH, Multi-Volume, X-Ray, Labeling, Packing & Palletizing

Manufacturer Information

Depalletizer: ABB IRB 2600 M2004 Robot

Filler/Capper: Bertolaso MONOBLOCK (40-head filler, 8-head capper)

Inspection Unit: STRATEC 4211-00 X-Ray

Labelers: KRONES STARMATIC 080-B30 & KRONES 80-C32

Carton Packing: Thorsted MULTRA PACKER MK 2.1 (2x)

Conveyors: Dan Conveyor Carton Elevators (2x)

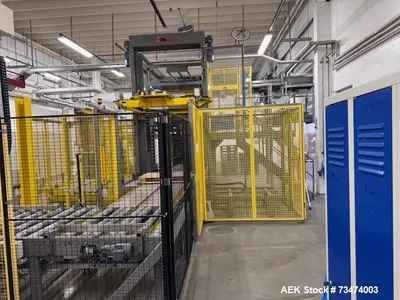

Palletizing/Wrapping: DAN PALLETISER / SIGNODE LACHENMEIER HMF

Application History: Juice concentrate bottling in glass bottles

Product Description
This used glass bottle filling line is a complete, high-speed bottling and packaging solution capable of handling 12,000 bottles/hour for 300ml, 700ml, and 840ml bottle sizes. Originally used in juice concentrate production, it offers full automation from depalletizing to end-of-line pallet wrapping.

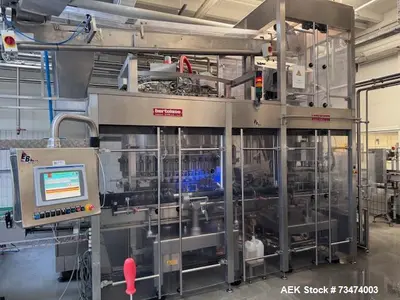

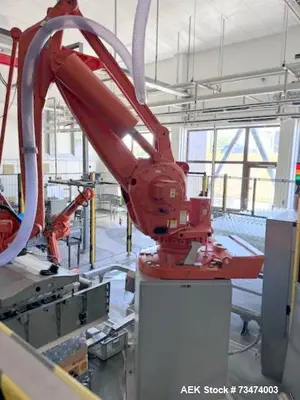

At the front of the line is an ABB IRB 2600 M2004 robotic depalletizer, capable of handling up to 1,650 kg. Bottles are filled and capped via the Bertolaso MONOBLOCK, featuring 40 filling heads and 8 capping heads, with an integrated cap hopper.

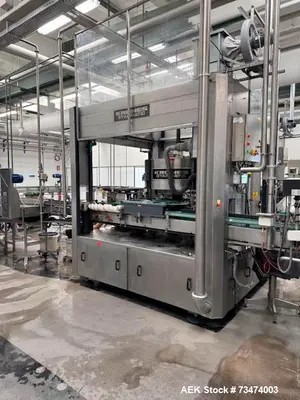

Product integrity is verified by a STRATEC X-Ray inspection unit, and dual labeling is provided via KRONES STARMATIC 080-B30 and KRONES 80-C32 labelers, supporting line 1 and line 2 respectively. Each line is equipped with Thorsted MULTRA PACKER MK 2.1 carton packers, Dan Conveyor carton elevators, and a shared DAN/SIGNODE/LACHENMEIER palletizer and wrapping system.
Includes all in-feed, transfer, and take-off conveyors, providing a turnkey solution for glass bottle beverage packaging.

Specifications

Bottle Types: Glass

Bottle Sizes: 300 ml, 700 ml, 840 ml

Line Capacity: 12,000 bottles/hour

Depalletizer: ABB IRB 2600 M2004 – 1,650 kg capacity

Filler/Capper: Bertolaso MONOBLOCK – 40 head filler / 8 head capper, with overhead cap hopper

X-Ray Inspection: STRATEC 4211-00

Labelers:

KRONES STARMATIC 080-B30 – Line 1

KRONES 80-C32 – Line 2

Carton Packers: Thorsted MULTRA PACKER MK 2.1 (2x)

Carton Elevators: Dan Conveyor (2x)

Palletizer/Wrapper: DAN PALLETISER / SIGNODE / LACHENMEIER HMF

Conveyors: Complete in-feed, transfer, and outfeed systems

Condition: Used

Previous Use: Juice concentrate bottling

Applications

Juice concentrate bottling

Alcoholic beverage (e.g., wine, spirits) packaging

Cold-fill and pasteurized beverage packaging

Glass bottle bottling operations

Dual-label beverage branding

Large-scale contract bottling

Retail-ready carton packaging

High-volume warehouse distribution prep

End-to-end glass packaging solutions

Product traceability & compliance (via X-ray and labeling)

What Might This Be Used For?

Filling and capping glass bottles in various volumes

Automated depalletizing of empty glass bottles

Inline inspection of fill levels and product integrity

Applying front and back labels on glass beverage bottles

Forming, packing, and sealing retail cartons

Palletizing and shrink-wrapping beverage products

Juice or concentrate bottling at industrial volumes

Glass bottle packaging for private label drinks

High-speed beverage bottling with redundancy (dual labeling lines)

Reducing labor via robotic and automated systems
