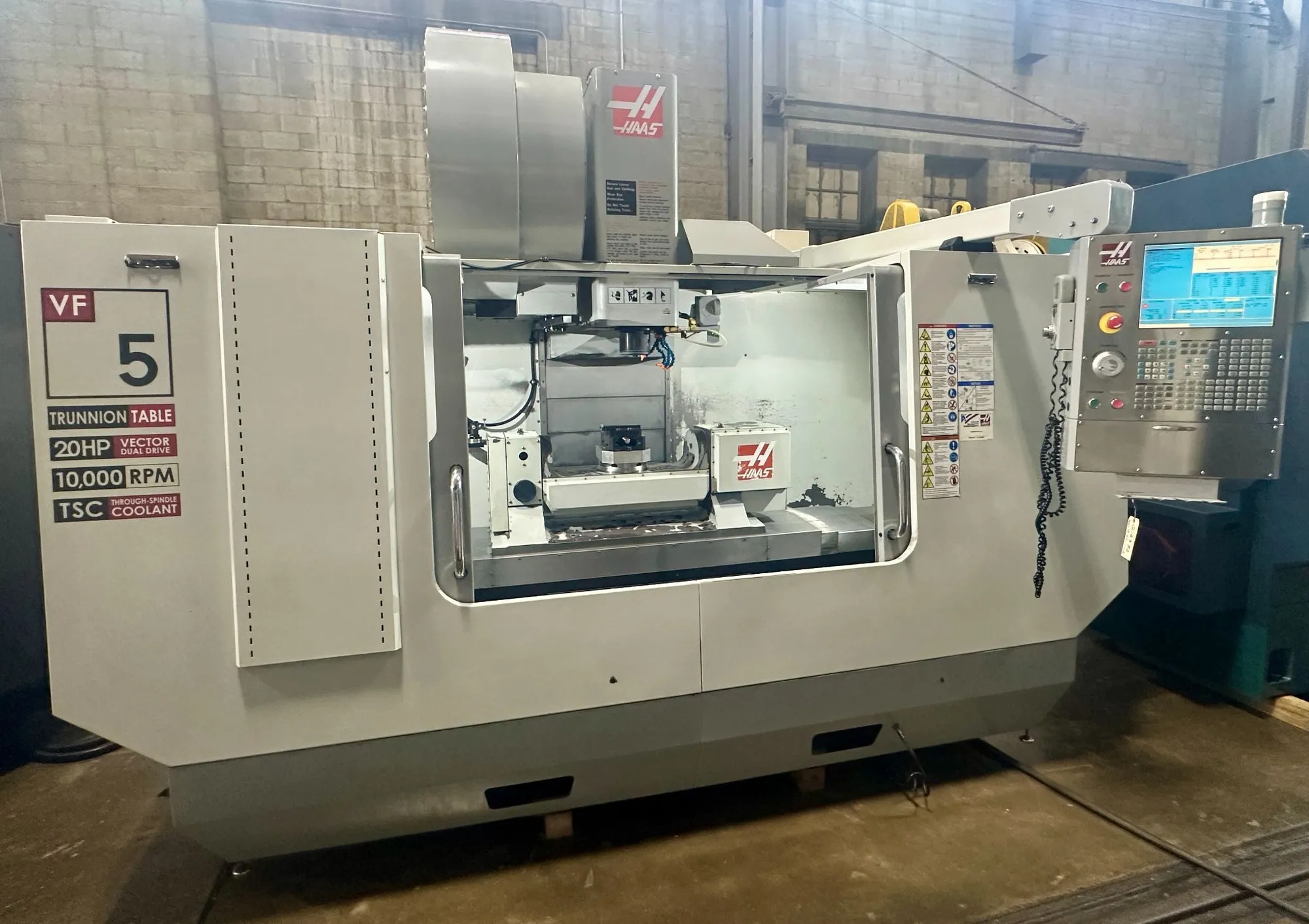

USED 2008 HAAS VF-5D/40
Overview
HAAS VF-5D/40 5-Axis CNC Vertical Machining Center, Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 24 ATC, Chip Auger & Coolant System, New 2008.
Specs
CNC Control: Haas CNC
# Axis: 3
Table Size: 52" x 23"
Maximum Table Load Capacity: 4,000 LBS
X-Axis (Longitudinal Table Travel): 50"
Y-Axis (Vertical Travel): 25"
Z-Axis (Spindle Travel): 26"
Feed Rate, All Axes: 600 IPM
Spindle Horsepower: 20 HP
Spindle Taper: #40 CAT
Spindle Speed Range: 50 - 7,500 RPM
Automatic Tool Changer Capacity (ATC): 24
Electrics: 230/3/60
Approximate Machine Dimensions: 137" x 100"
Approximate Machine Height: 104"
Approximate Machine Weight: 15,400 LBS
Equipped With
Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis-=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 20HP Spindle, 24 ATC, Chip Auger & Coolant System.
