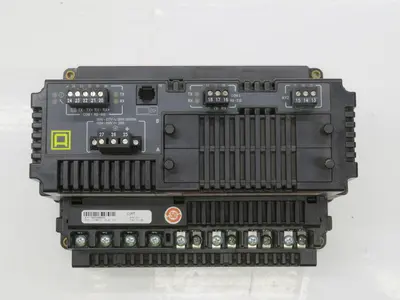

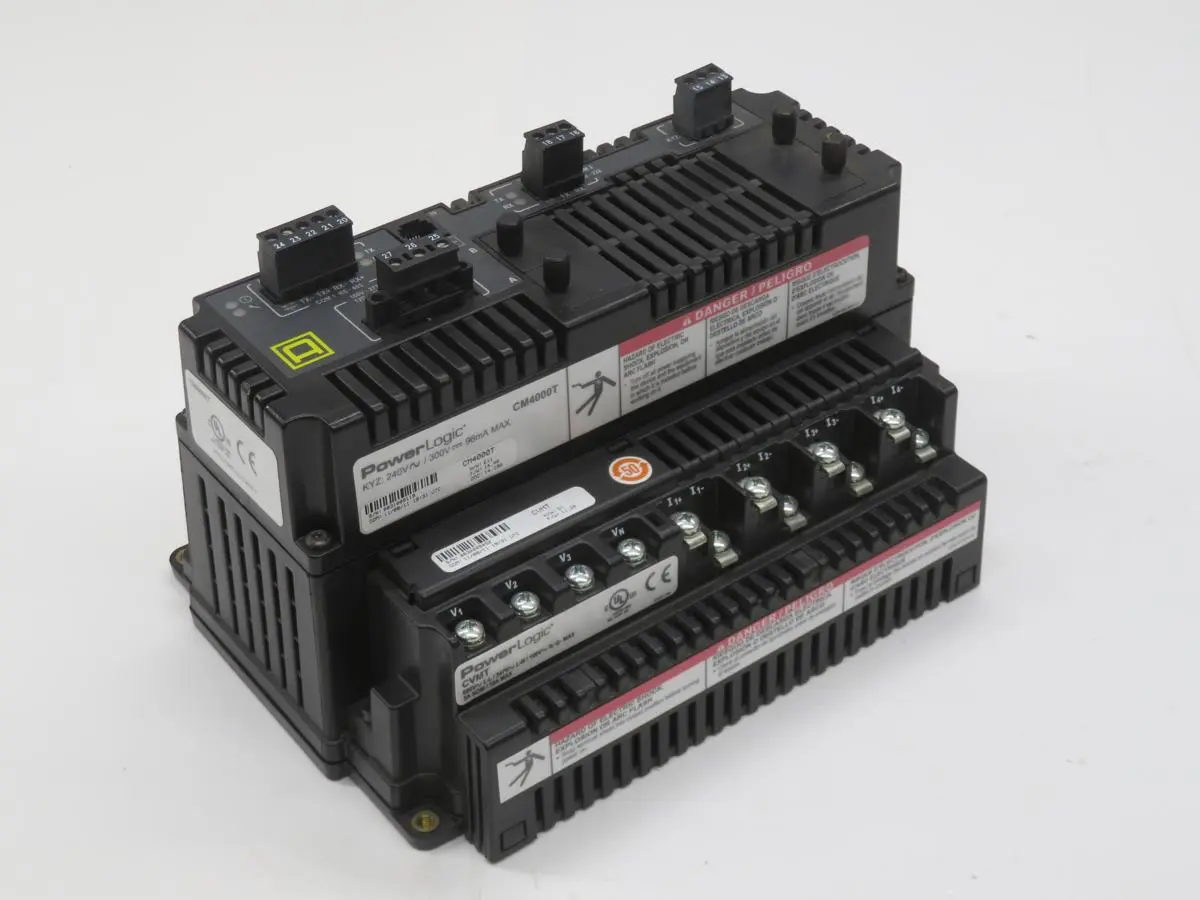

SQUARE D CM4000T POWER MONITOR, 100-277V AC AUX SUPPLY, 50VA AUX POWER, 240-300V AC MEASURE

THE SQUARE D POWERLOGIC CM4000T IS A CIRCUIT MONITOR DESIGNED FOR POWER AND ENERGY MEASUREMENT. IT OPERATES ON AN AUXILIARY POWER SUPPLY PROVIDING 100V TO 277V AC AT 50VA, COMPATIBLE WITH 50HZ AND 60HZ FREQUENCIES. THE UNIT INCLUDES CONTROL OUTPUTS RATED FOR 125V TO 250V AC, CAPABLE OF HANDLING UP TO 300W. FURTHER ELECTRICAL SPECIFICATIONS LIST A CHARACTERISTIC OF 240V AC TO 300V AC AT 96MA. AS A MULTI-FUNCTION POWER METER, IT PERFORMS COMPREHENSIVE MEASUREMENTS OF ELECTRICAL PARAMETERS, INCLUDING VOLTAGE, CURRENT, POWER, ENERGY, AND POWER FACTOR.
