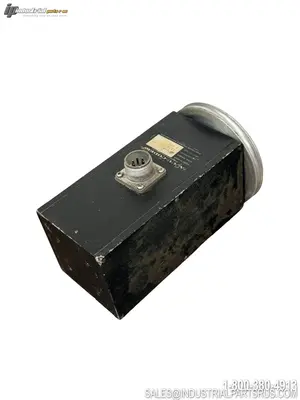

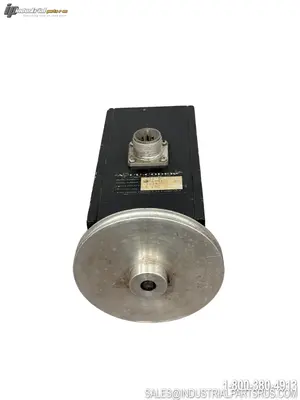

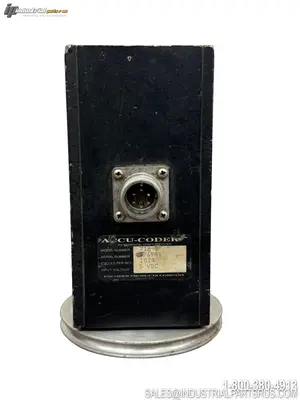

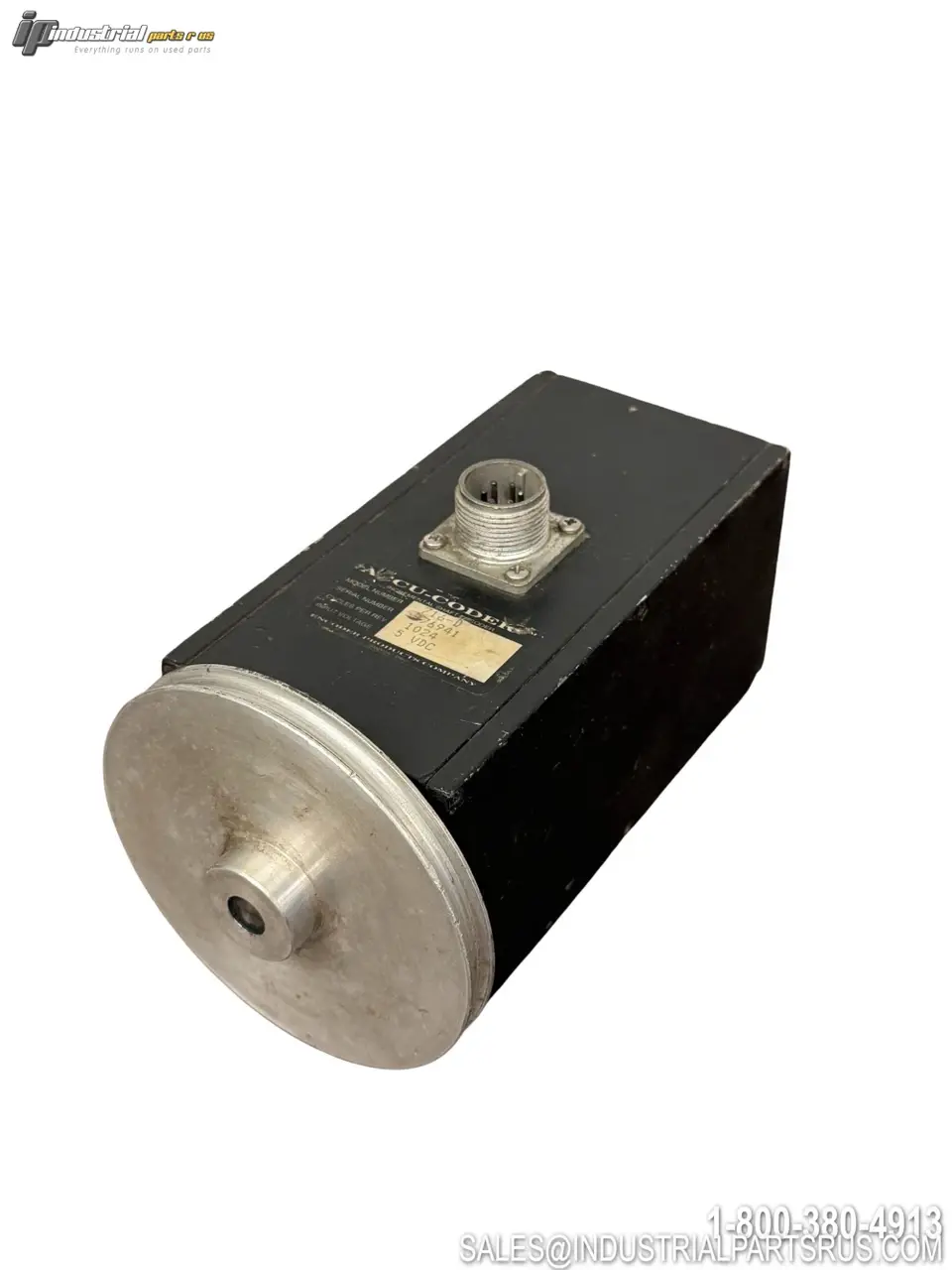

USED ACCU-CODER 716-D

The Accu-Coder Model 716-D is an incremental shaft encoder manufactured by Encoder Products Company (EPC). This unit features 1024 cycles per revolution (CPR) and operates on 5 VDC, providing quadrature output with NPN open collector signals for direction-sensing applications. The Model 716 series is the original industry-standard cube encoder, designed for compatibility with programmable controllers, electronic counters, motion controllers, and motor drives, utilizing advanced Opto-ASIC circuitry for enhanced reliability. Output is via a shielded flying lead cable.
Specification
Value
Brand
Accu-Coder
Model / Part Number
716-D
Manufacturer
Encoder Products Company (EPC)
Encoder Type
Incremental Shaft Encoder
Output Format
Quadrature (A, B channels)
Cycles Per Revolution (CPR)
1024
Supply Voltage
5 VDC
Output Type
Open Collector – 250 mA max per channel
Max Frequency
125 kHz (1–2500 CPR range)
Max Speed
6000 RPM
Index Pulse
Once per revolution, 180° electrical
Rise Time
Less than 1 microsecond
Accuracy
Within 0.05° mechanical
Housing Style
Standard Cube (Industry-Standard)
Housing Material
Black non-corrosive finished 6063-T6 aluminum
Wall Thickness
0.250"
Bearings
Precision ABEC ball bearings (sealed)
Radial Load Rating
40 lb maximum
Axial Load Rating
30 lb maximum
Starting Torque
1 oz-in typical (3 oz-in w/ IP65 seal)
Moment of Inertia
6.5 × 10⁻⁶ oz-in-sec²
Weight (Standard Housing)
10 oz
Mounting
Tapped holes, face and base
Electrical Protection
Reverse voltage and output short circuit
Circuitry
Opto-ASIC single chip design
Common Applications
Feedback for Counters, PLCs & Motors, Cut-to-Length, Labeling, Packaging, Wire Winding, Film Extrusion
We warranty all items for 30 days from date of purchase.
