USED MORI SEIKI NL2500MC/700
Specs

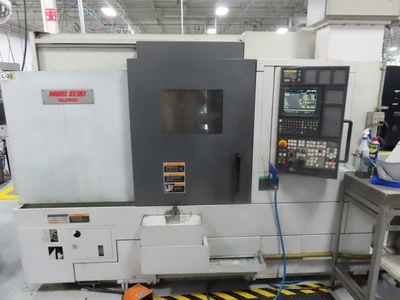

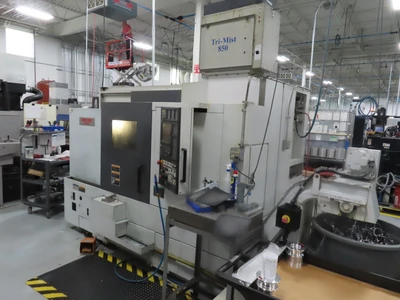

Lot 170: Mori Seiki NL2500MC/700 CNC Turning Center, MSX-850 CNC Control, Live Milling Capability, Tool Setter, Parts Catcher, Hi Pressure Coolant

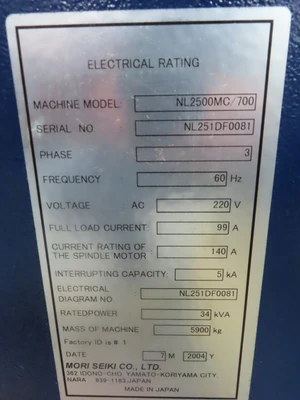

Electrics:
220 Volt, 3 Phase.
Main Unit Approx Weight: 13000.00 lbs
Main Unit Dimensions (in inches): Length: 122.00" Width: 87.00" Height: 84.00"
Components:
Machine: Length: 122.00" Width: 87.00" Height: 84.00"
Machine w/Mist Collector*: Length: 112.00" Width: 87.00" Height: 108.00"
Chip Conveyor/Coolant Tank: Length: 120.00" Width: 48.00" Height: 62.00"

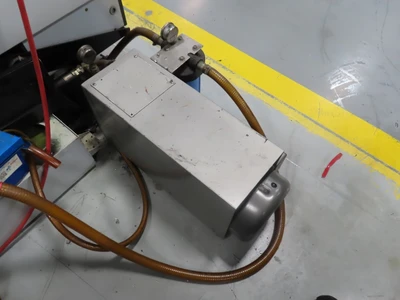

Hi Pressure Pump: Length: 40.00" Width: 28.00" Height: 20.00"
Specs:

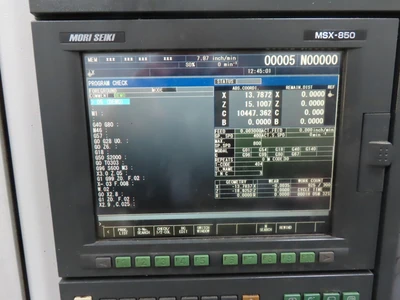

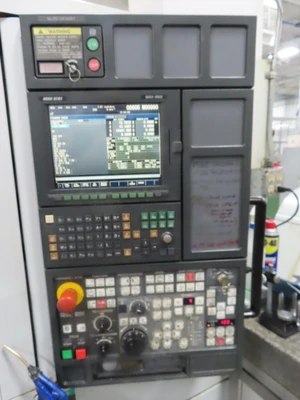

Control: MSX-850 CNC Control

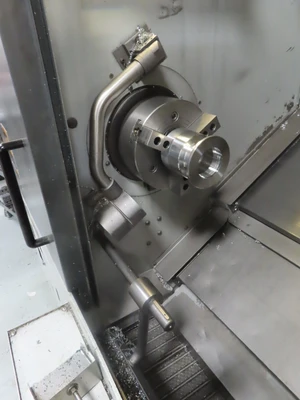

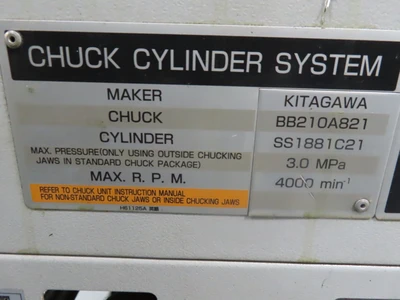

Chuck Size: 10"
Swing Over Bed: 36.4
Swing Over Saddle: 29.7"
Max Turning Diameter: 14"
Max Turning Length: 27.7
Rapid Traverse Rates: 1,181 IPM
Max Bar Diameter: 3.1"
Spindle Speeds: 4,000 RPM
Spindle Nose: A2-8
Spindle Orientation: Full C-Axis

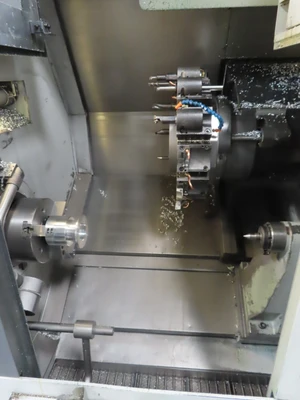

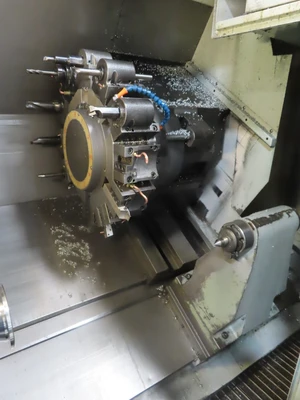

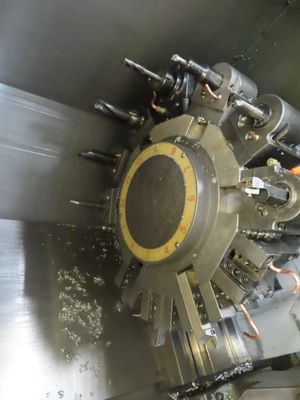

Turret Capacity: 12 Tools
Turret Travles, (X/Z): 10.2" / 31/3"
Live Tool Speed: 6,000 RPM
Spindle Drive: 25 HP
Rotary Tool Drive: 7.5 HP
Seller Company: MultiSource Manufacturing LLC - Ramsey
Seller Contact: Vince Schmitz Phone: (763) 582-1000
Location Contact: Vince Schmitz Phone: (763) 582-1000
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 12' x 14' Ground Level, Paved Lot
Loading Dock: Truck Level, 106" x 108"
Removal Dates and Times: This item must be removed between Wednesday, October 21, 2026 and Friday, October 30, 2026
Equipped With

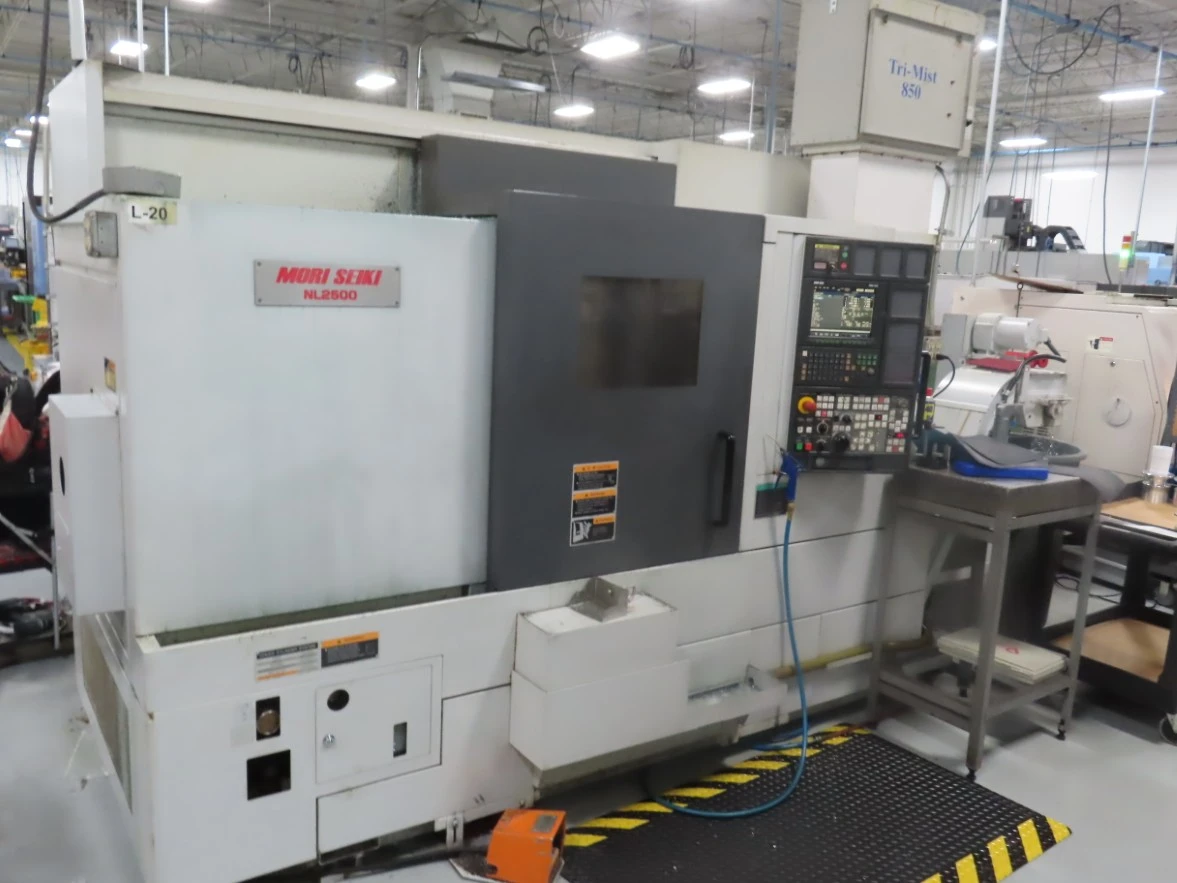

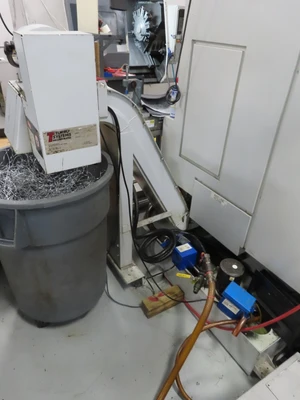

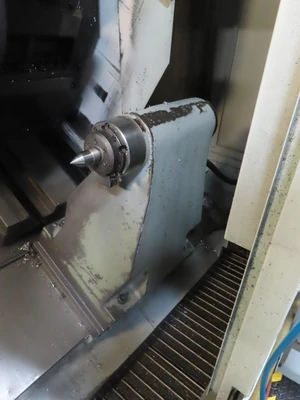

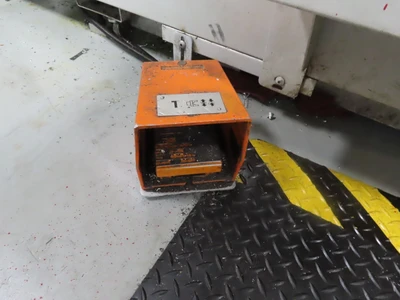

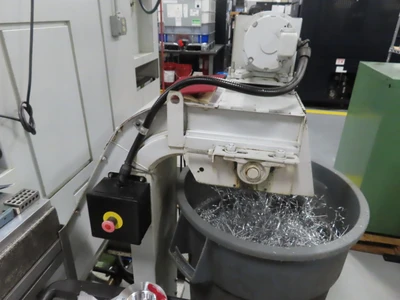

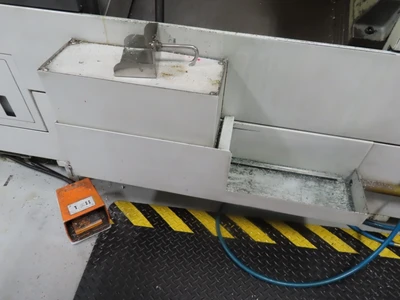

MSX-850 CNC Control, 10" 3-Jaw Chuck, Tool Presetter, 12-Station Turret with Live Milling Capability, Parts Catcher, Tailstock, High Pressure Coolant, Coolant Tank/Pump, Chip Conveyor, Foot Trip. NOTE: Seller is keeping Tri-Mist mist collector and all static and live tool holders for this machine, the Tri-Mist and all static and live tool holders in the pictures for video are NOT included with the machine.
