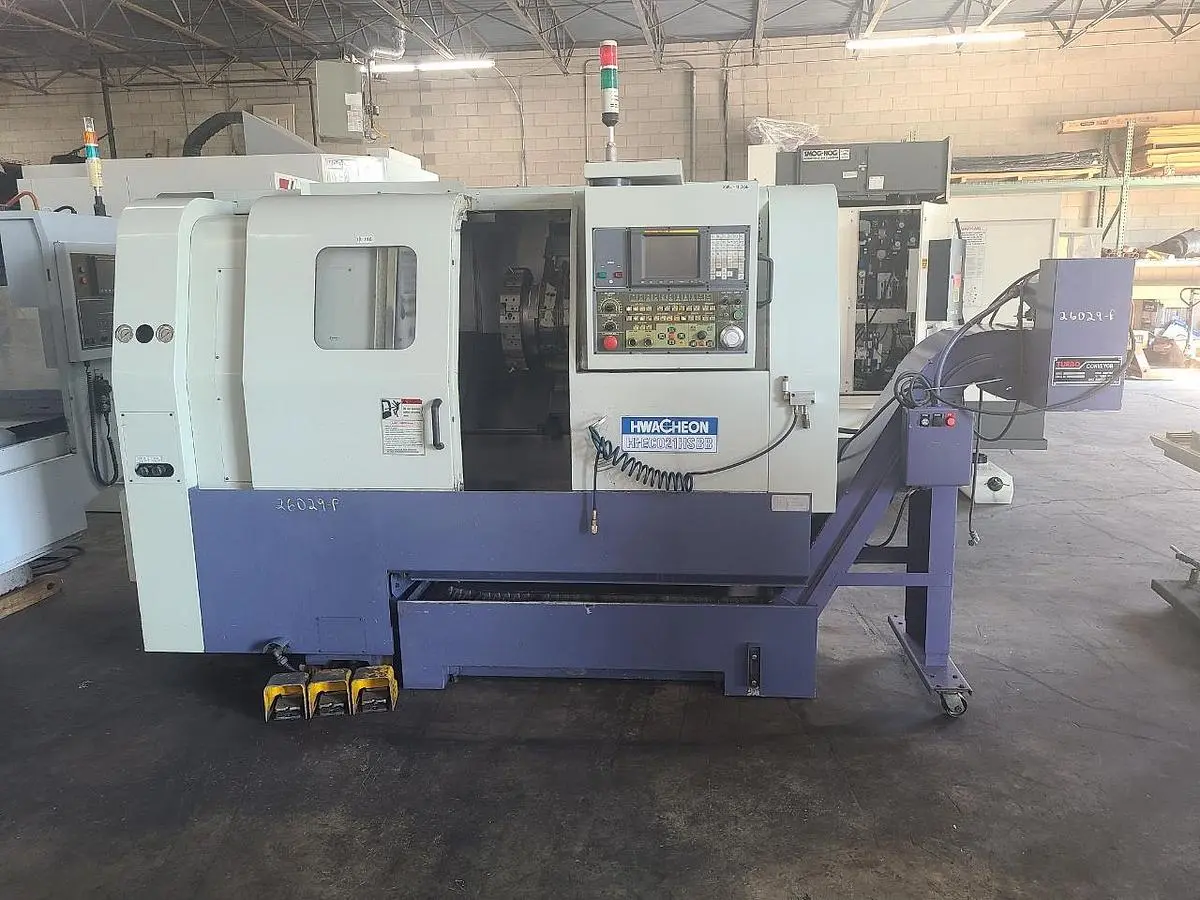

USED 2000 HWA CHEON HI-ECO21HSBB

HWA CHEON 2-AXIS LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …….……. $14,500.00

Stock # 26029-P
Serial # M058348J4KB
Model: Hi-ECO21HSBB
Year: 2000

CAPACITY:
Swing Over Bed: 23.6"
Maximum Turning Diameter: 11"
Standard Turning Diameter: 8.3"
Maximum Turning Length: 15.7"
Chuck Size: 8"

SPINDLE:
Spindle Speeds: 40-4,000 RPM
Spindle Nose: A2-6
Spindle Bearing Inner Diameter: 3.9"
Spindle Through Hole: 3"
Standard Bar Diameter: 2.6"

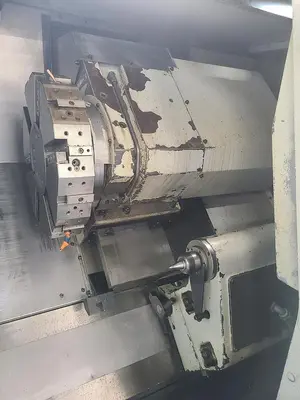

TURRET:
Number of Turrets: 1
Number of Tool Positions: 12
Standard Tool Size: 1"
Boring Bar Size: 1.3"

FEEDRATES:
Rapid X & Z: 1,181 IPM
Jog X & Z: 50 IPM
Traverse X: 6.6"
Traverse Z: 17.3"

TAILSTOCK:
Quill Diameter: 3.1"
Quill Stroke: 3.9"
Quill Taper: #3 MT

EQUIPPED WITH:

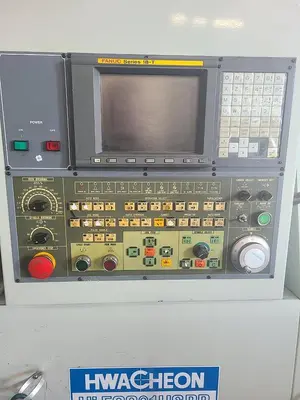

Fanuc 18-T Control

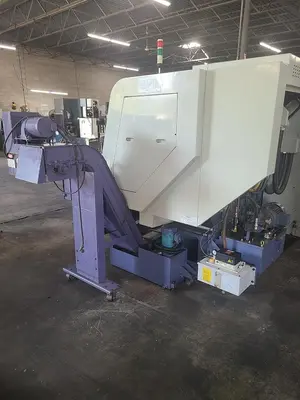

Chip Conveyor

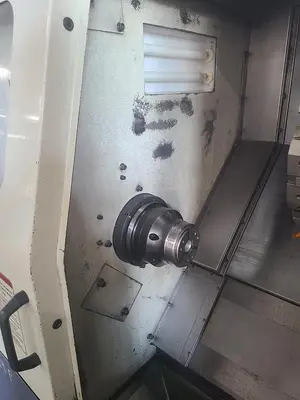

Collet Chuck
Tailstock
Box Way Construction

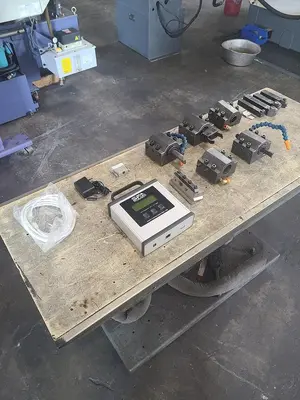

Assorted Tool Holders
Manuals
RS 232C
Wired For 3 Phase 60 Cycle, 220 Volts

Machine Size: 102" L-R x 65" F-B x 91" H
Chip Conveyor: 102" L-R x 68" F-B x 63" H
