USED LANDIS 3RH

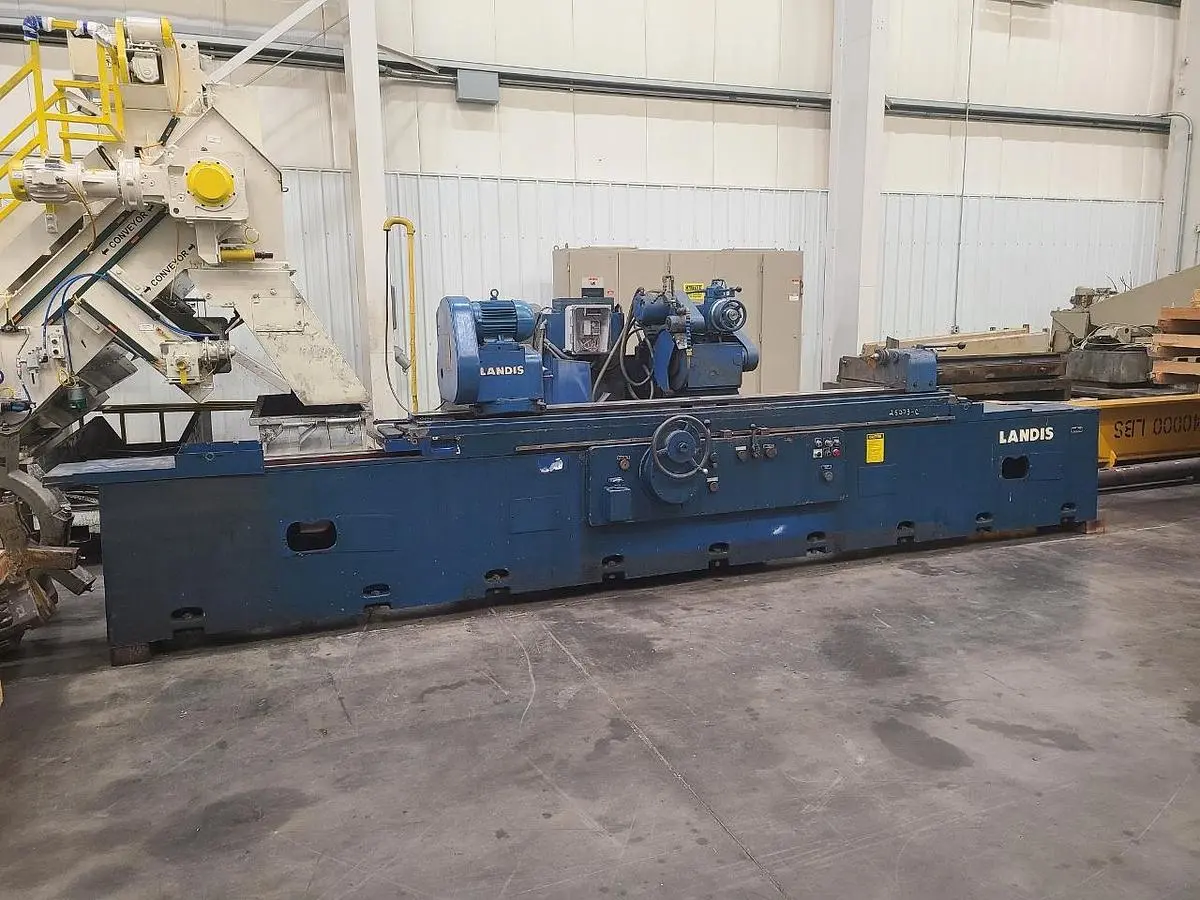

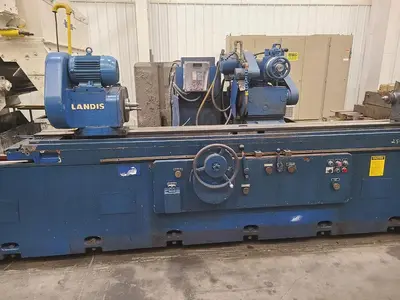

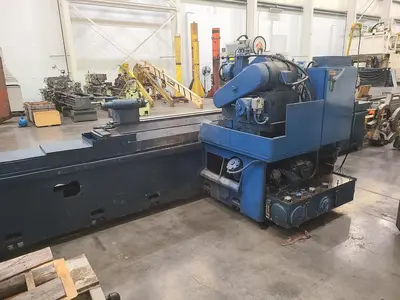

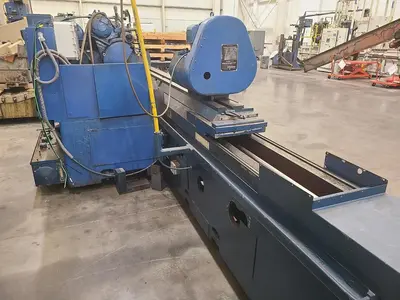

14" X 96" LANDIS UNIVERSAL CYLINDRICAL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $ POR

HMC Stock # 25073-C
Serial # 796-54
Model: 3RH

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

Swing: 14" Catalog Spec (Machine Can Swing Up to 17" Based on Measurement)
Center Distance: 96"
Max. Diameter with Full Size Standard Wheel: 14-31/32"
Min. Diameter Wheel to Grind Zero Diameter Work on Centers: 9-1/4"
Traverse Speed: 2 to 240 IPM
Traverse Per Turn of Handwheel:
  Slow: .100"
  Fast: .750"

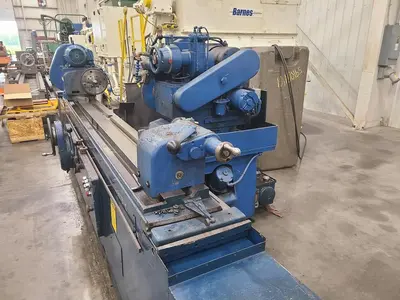

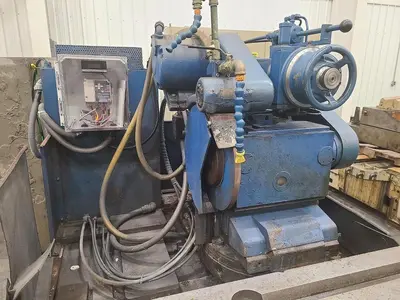

WHEELHEAD AND WHEELFEED:
Standard Wheel Size: 14" x 1-1/2" x 5"
Grinding Wheelhead Swivel Range:
  Upper: 180 Degrees
  Lower: 60 Degrees CW to 30 Degrees CCW
Automatic Infeed at Table Reversal (On Diameter): .0003" to .004"
Max. Distance Wheel Centerline to Work Centerline: 17"
Min. Distance Wheel Centerline to Work Centerline: 3"
Work Diameter Reduction Per Revolution of Handwheel: .100"
Work Diameter Reduction Per Revolution of Fine Feed Knob: .005"

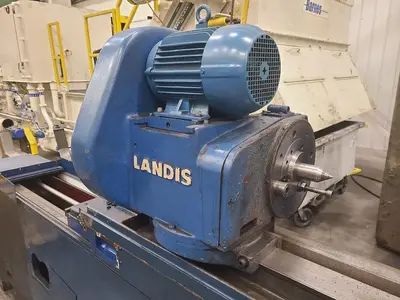

Headstock Work Center: #14 Jarno

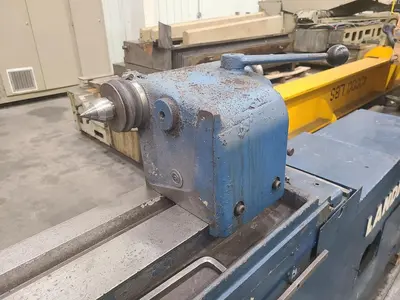

Tailstock Work Center: #10 Jarno

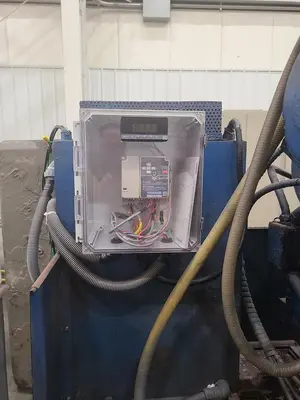

Headstock Work Speeds, Infinitely Variable Via VFD Drive (Exact Speed Range Not Known)
Diameter of Hole Through Headstock: 1-7/16"
Headstock Spindle Nose: 6A-2
Headstock Swivel Range: 120 Degrees
Swivel Table Graduated (Inches Per Foot): 4-3/4"
Swivel Table Graduated (Degrees Included Angle): 23 Degrees

EQUIPPED WITH:

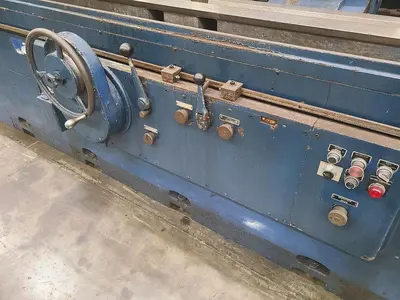

Traverse Feed Selector
Wheelhead Ways Lubrication Pump
Left/Right Tarry
Traverse Rate Knob
Headstock Speed Knob
Grinding Wheel Hubs
Flood Coolant Built Into Base of the Machine
5 HP Grinding Wheel Motor
Coolant Pump in Base
Machine Wired for 3 Phase, 60 Cycle, 440 Volts

DIMENSIONS:
Overall Size Machine: 240" L-R x 84" F-B x 72" H
