USED 1972 HARDINGE HLVH

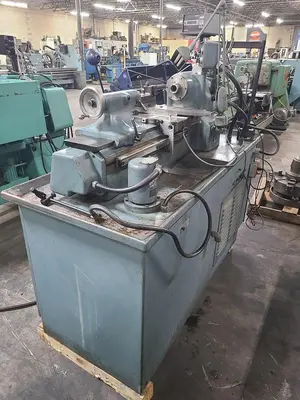

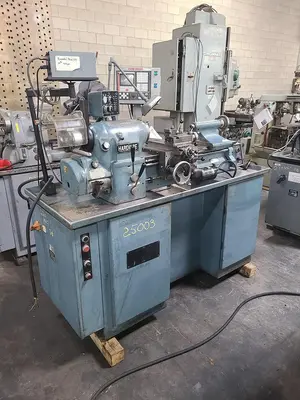

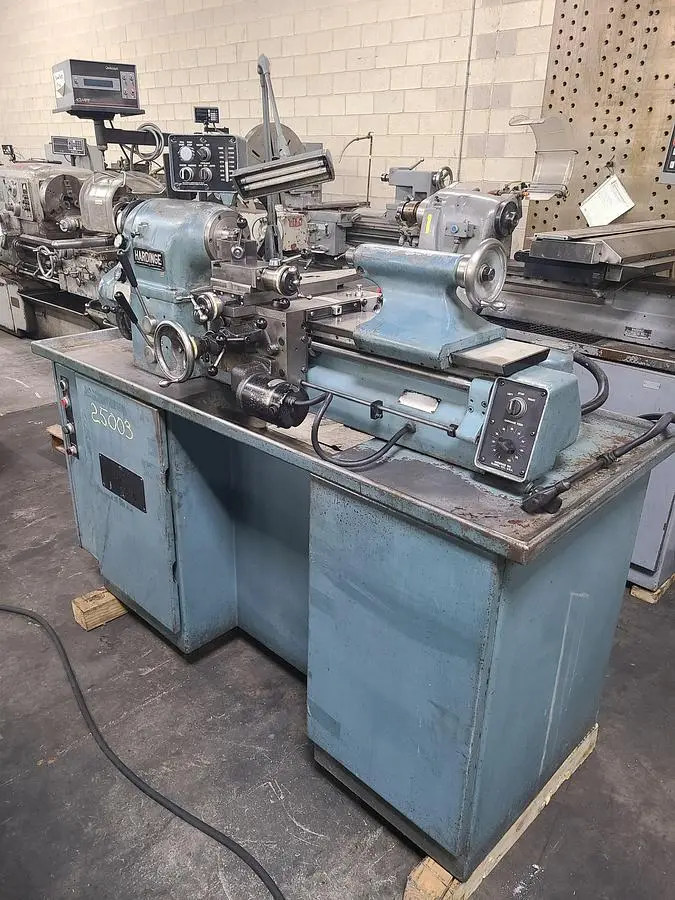

HARDINGE HLVH PRECISION TOOL ROOM LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,500.00

HMC Stock # 25003
Machine Serial No. HLVH-5208-K
Machine Model No. HLVH
New Date: 1972

Swing Over Bed: 11"
Swing Over Carriage: 9"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Hole Thru Spindle: 1-1/4"
Spindle Speeds: 125 to 3,000 RPM, Variable
Spindle Nose: External Hardinge Taper, 5C Internal Taper

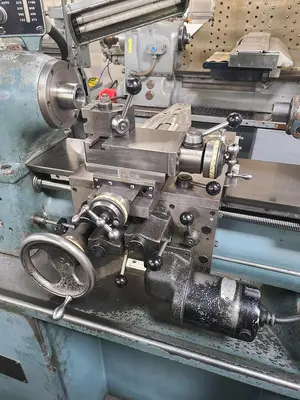

Compound Slide Travel: 3"
Cross Slide Travel: 5-1/2"
Feed Range: 1/4 to 7 IPM, Variable
Collet Capacity: 1-1/16" Diameter, Round

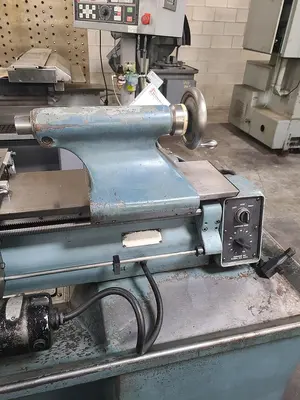

Tailstock Quill Taper: #2 Morse
Tailstock Quill Travel: 3-3/4"
(27) Threads: 11 to 108 TPI

EQUIPPED WITH:

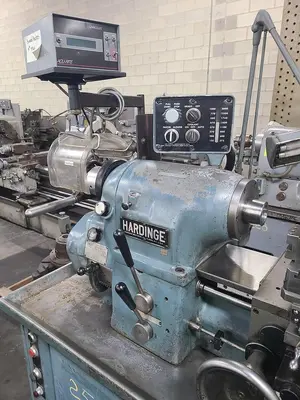

Acu-Rite Digital Readout, Single Axis Readout on Z Axis
Hardinge Tool Post
Work Light
Coolant Pump
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 72" L-R x 30" F-B x 64" H x 1,875 Lbs.
