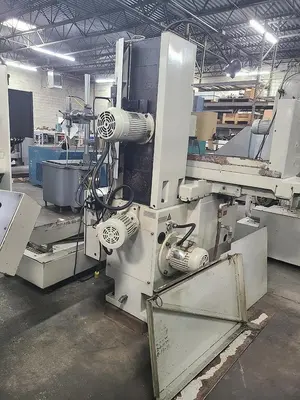

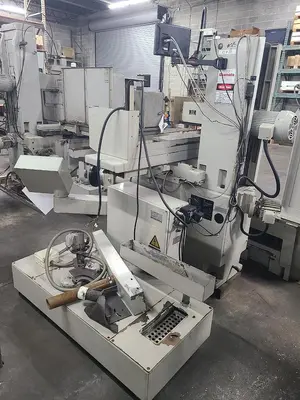

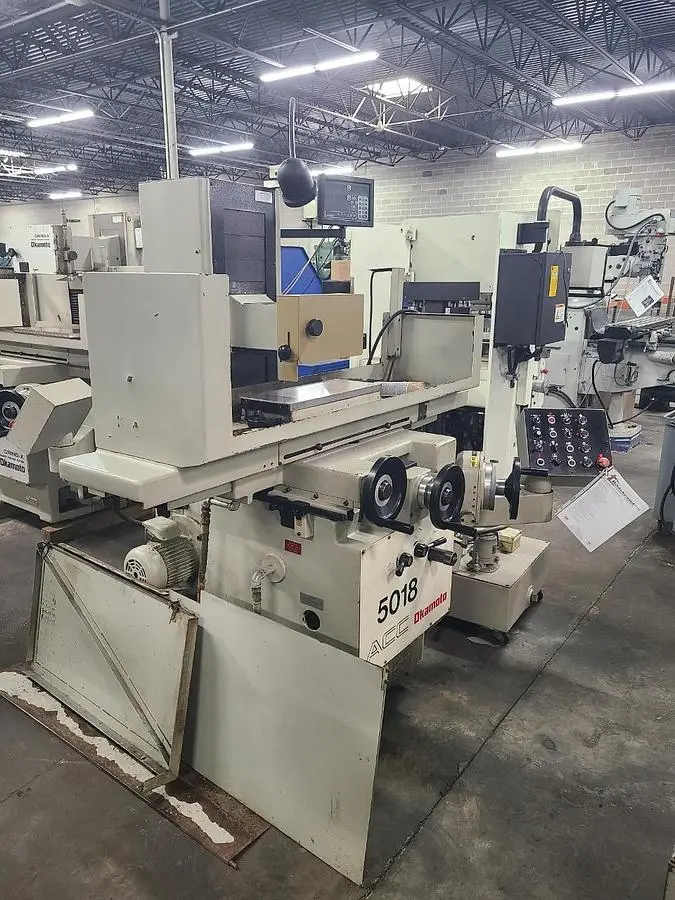

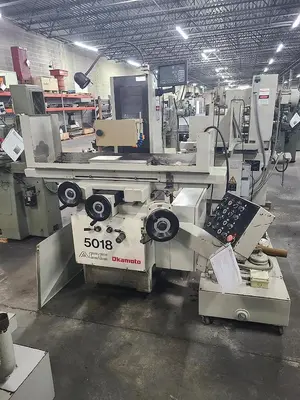

USED OKAMOTO ACC-820-ST

8" X 20" OKAMOTO SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00

HMC Stock # 24050-P
Machine Serial No.: 82089
Machine Model No.: ACC-820-ST
New Date: Unknown

Nominal Grinding Capacity: 8" x 20"
Maximum Height Under 8" Wheel: 15.6"
Table Speed, Infinitely Variable: Up to 82 FPM
Maximum Longitudinal Table Movement, Manual: 24"
Auto Cross Feed Increment: 0.002" to 40"
Auto Continuous Cross Feed: 4 to 40 FPM
Cross Feed, Manual, Hand Feed Per Rev.: 0.25"
Graduations of Handwheel: .001"
Maximum Cross Feed, Manual: 9"
Power Rapid Wheel Positioning Rate: 16 IPM
Wheel Size: 8" Dia. x 1" W x 1.25" B

EQUIPPED WITH:
3-Axis Hydraulic Feed
Hydraulic Incremental Down feed
Spark Out Passes (0 to 5)
Power Rapid Wheel Positioning
Hydraulic Table Traverse & Automatic Cross Feed
Variable Hold Neutrofier with Auto Demagnetizing is Installed on
  Machine Control Console
8" x 20" Electro-Magnetic Chuck
2-Axis Newall Digital Read Out
Coolant System (Pan and Pump) NOT a Filter Type System
Missing Wheel Guard
2 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volts

Overall Size:
Machine: 72" LR x 52" FB x 72" High
Coolant Pan: 52" LR x 24" FB x 24" High
