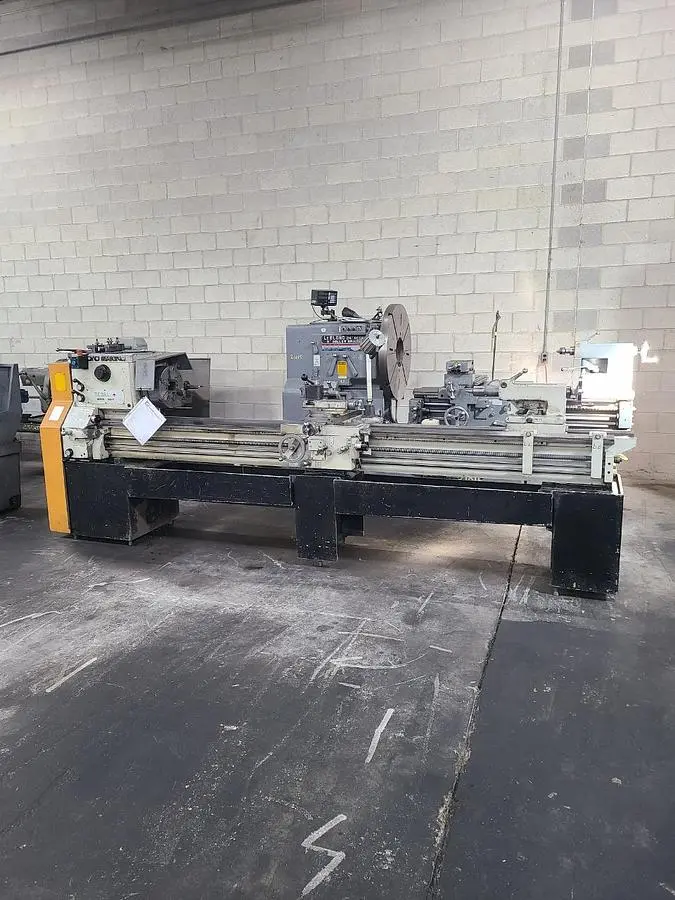

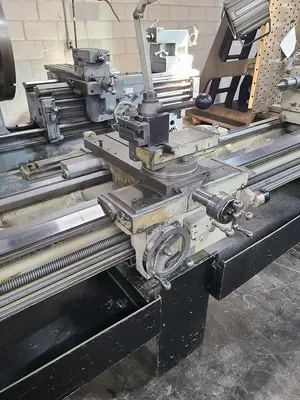

USED 1990 LEBLOND 19 REGAL

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $22,500.00

HMC Stock # 26014
Serial No.: 15E-240
Model: 19" Regal
Year: 1990

Swing Over Bed and Carriage Wings: 21"
Swing Over Cross Slide: 13"
Distance Between Centers: 102"

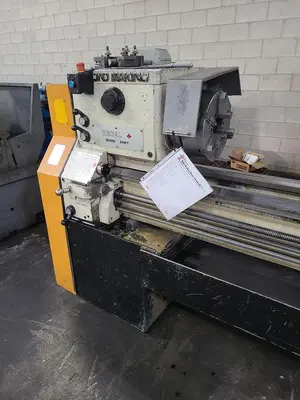

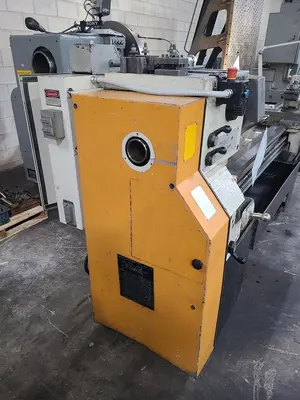

Headstock:
Spindle Speeds (12): 40 to 1,600 RPM
Spindle Nose: D1-8
Spindle Hole: 3-1/16"
Bed:
Length, Standard: 12' 3"
Width: 14-3/8"
Depth: 11-1/2"

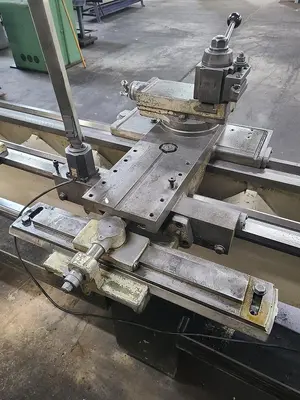

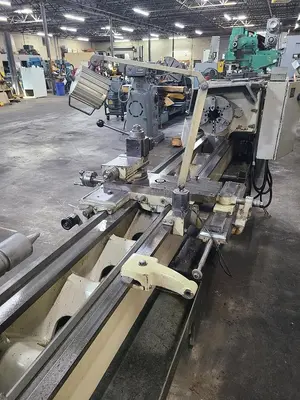

Carriage:
Length on Bed: 21"
Bridge Width: 7-7/8"
Cross Slide Travel without Taper: 11-1/4"
Cross Slide Travel with Taper: 9-5/8"
Compound Rest Travel: 4-3/8"
Feeds & Threads:
Feed Range (48): .0018 to .104 IPR
Threads, Inch (48): 2 to 112 TPI
Threads, Metric (48): .05 to 2.6 MM

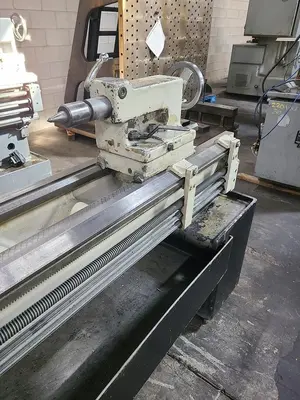

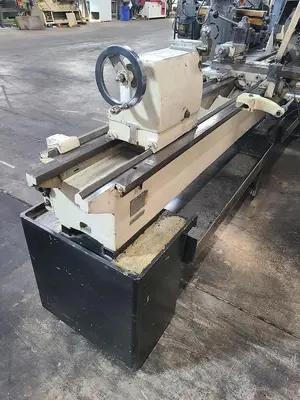

Tailstock:
Spindle Diameter: 2-7/16"
Center: 5 MT
Equipped With:
Inch/Metric Threading
Taper Attachment

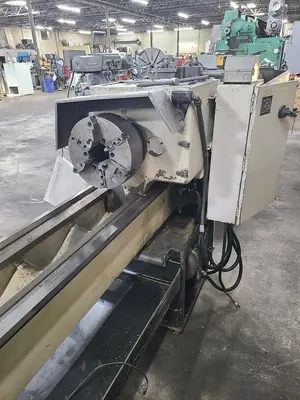

12" Pratt Burnerd 6 Jaw Chuck (3 Missing)
Aloris Toolpost
Assorted Holders
10 HP Motor, Wired 3 Phase, 60 Cycle, 230 Volts
Dimensions: 165" LR x 54" FB x 62" High x 4,800 Lbs.
