USED SIP PI-5
Overview

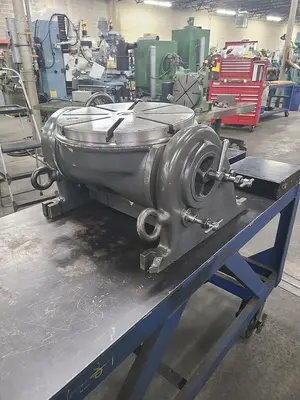

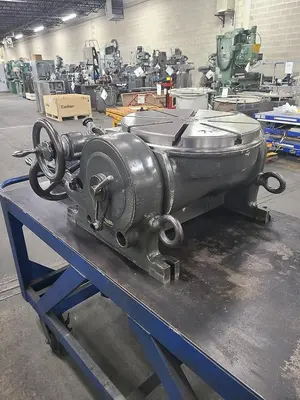

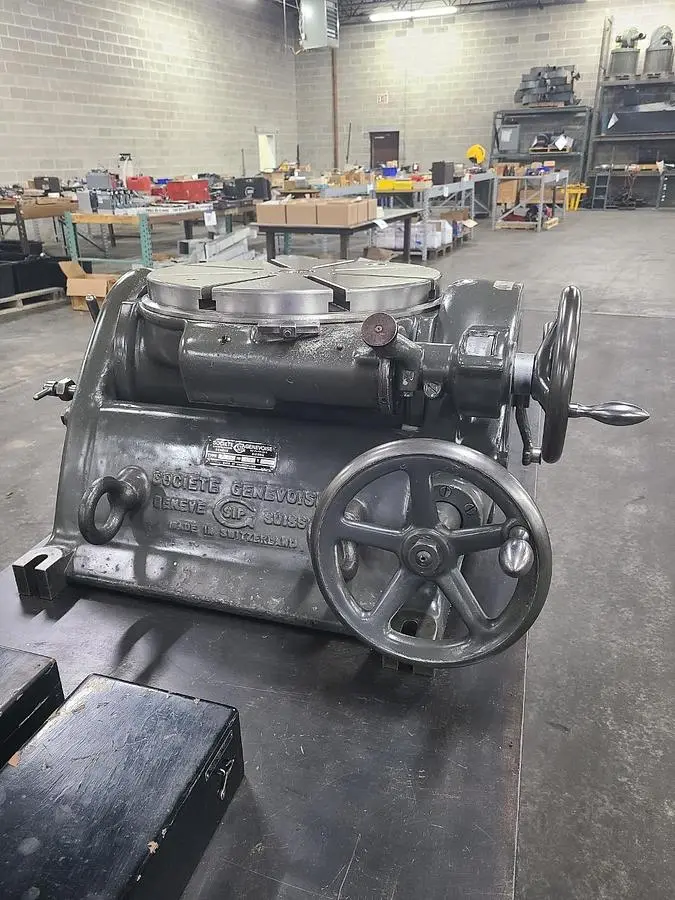

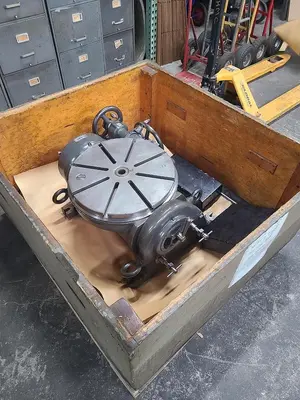

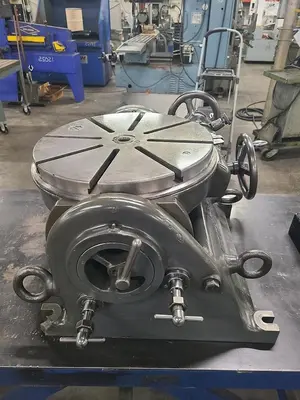

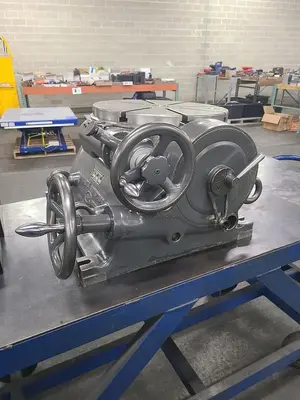

SIP PI-5 TILTING ROTARY TABLE

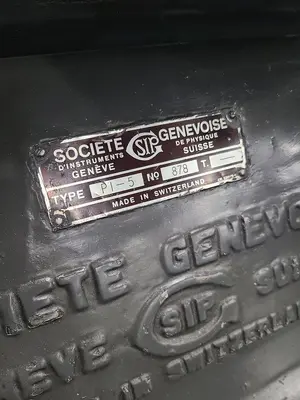

Serial Number: 878
Diameter of the platen: 17 ¾” (450mm)
Number of teeth of the platen: 180
For one rotation of handwheel: 2 degrees
For one graduation stroke of platen: 1 degree
For one graduation stroke of micrometer drum: 30”
For on graduation stroke of vernier: 1”
For one graduation stroke: ½ degree
For one graduation stroke of vernier: 1 minute
T-slots of the platen, width: 0.63” (16mm)
Slots in the base for fixation bolts of dia.: 5/8” (16mm)
One Foot damaged See Photo
weight of workpiece: 130 lbs. (60 kg)
Net weight of the rotary table: 870 lbs. (395 kg)
