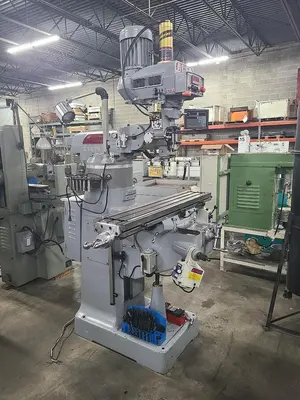

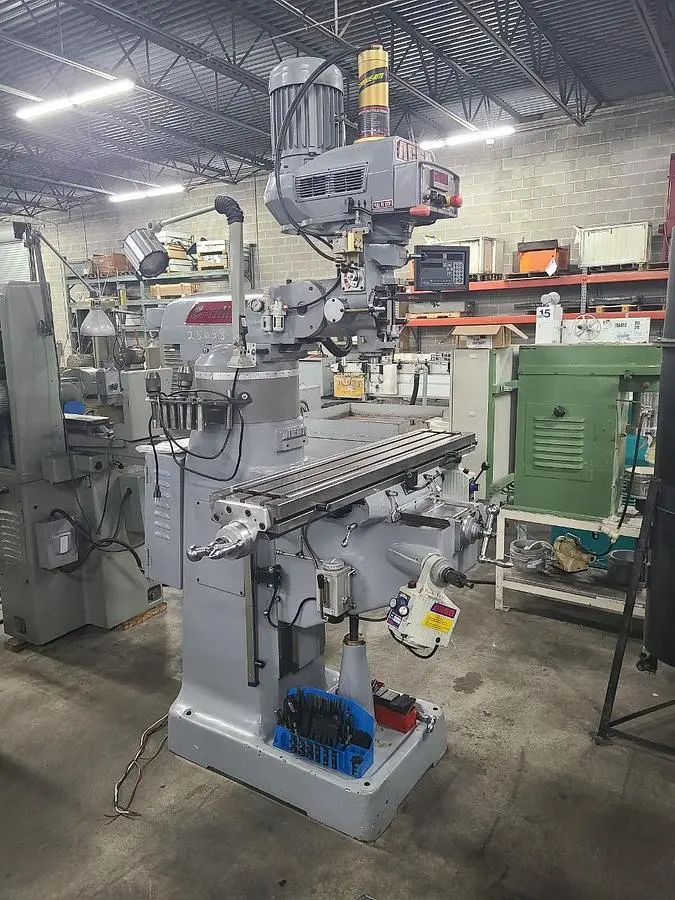

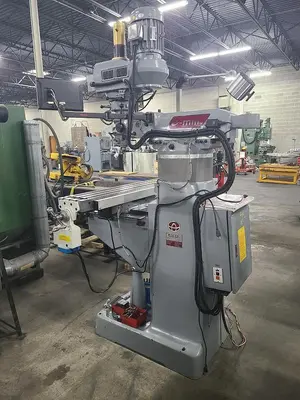

USED 2015 ACER E-MILL 3VS II

ACER MILLING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,950.00 AS IS

HMC Stock # 25058-C
Serial No.: N15060320
Model: E-Mill 3VS II
Year: 2015

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

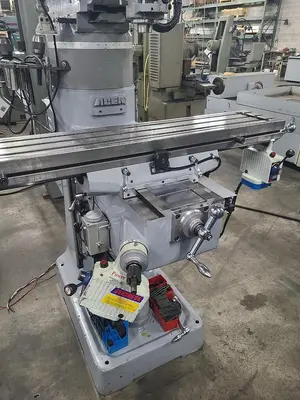

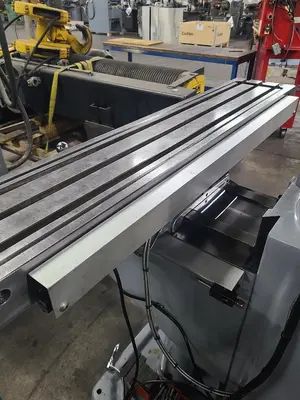

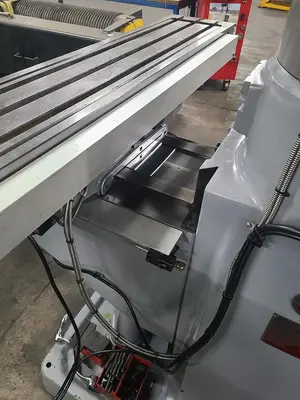

Table: 9" x 49" Table
(3) T-Slots: 5/8" Wide
Longitudinal Travel: 34"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Spindle Taper: R8

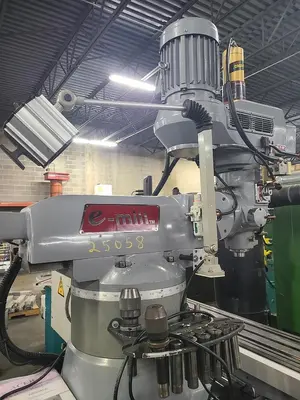

Spindle Speeds: 60-4500 RPM (Electronic Variable Speed Drive)
(3) Power Quill Feeds: .0015, .003, .006 Inches Per Rev.
Quill Diameter: 3-3/8"
Quill Travel: 5"

EQUIPPED WITH:
Newall Digital Read Out
*Digital Read Outs Can Change Travel Lengths on Table

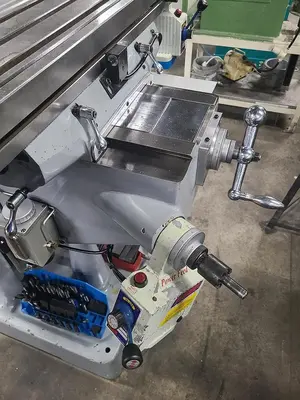

Import Brand Power Feed on Knee and Table
Torque-Rite Power Draw Bar
6" Riser Installed

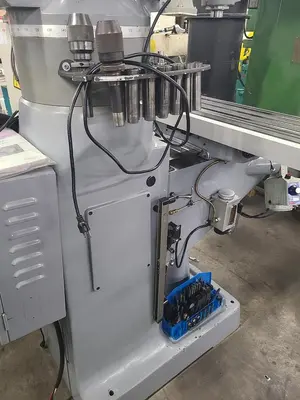

Hold Down Kits
Assorted Collets
One Shot Lube
Manuals
3 HP Main Motor

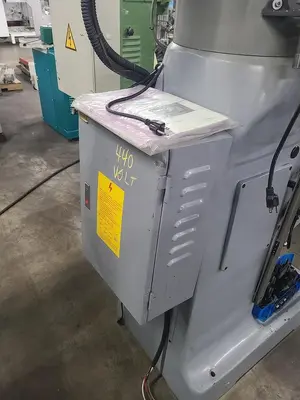

Wired for 3 Phase, 60 Cycle, 440 Volts
Overall Size: 70" LR x 60" FB x 95" High x 2,500 Lbs.
