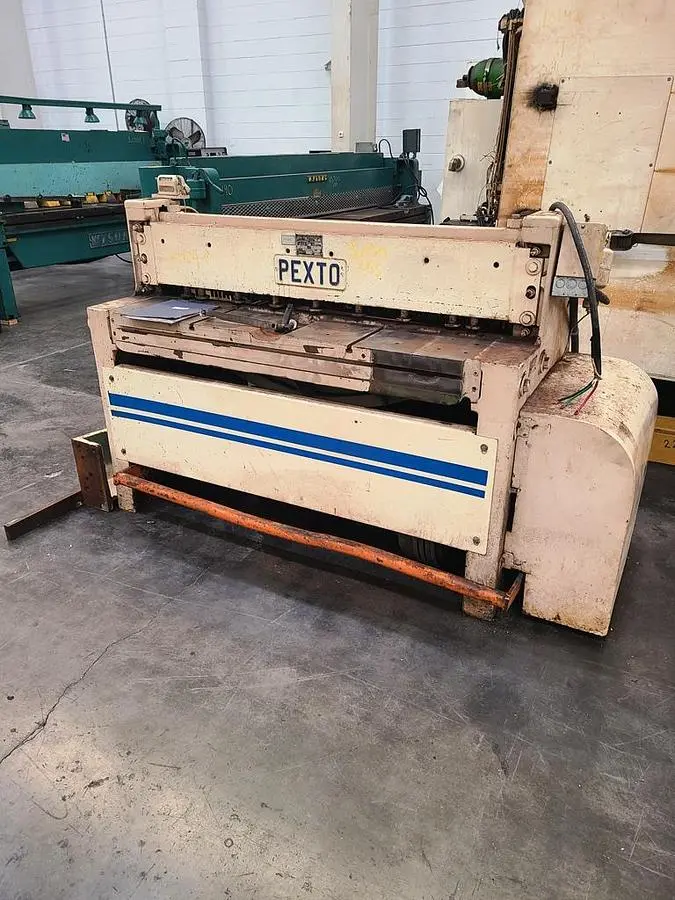

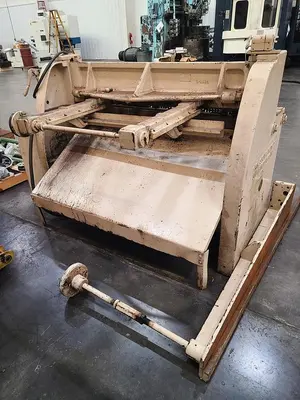

USED PEXTO 12-U-4

4' X 12 GA. PEXTO MECHANICAL SHEAR
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00

HMC Stock # 25104-P
Serial No.: 002264
Model: 12-U-4

Underdriven Mechanical Build
Cast Steel Frames
Shear Length: 48"
Rated in Mild Steel: 12 Gauge Maximum
Rear Operated Mechanical Back Gage: 18" Travel
60" Squaring Arm
Manual
Wired for Single Phase, 60 Cycle, 220 Volts

Overall Size: 80" LR x 60" FB x 48" High x 3,700 Lbs.
(The FB Dimension Above Does Not Include the Squaring Arm. When Installed, Add at Least 60" of Clearance.)
