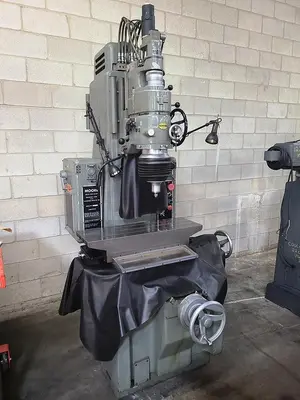

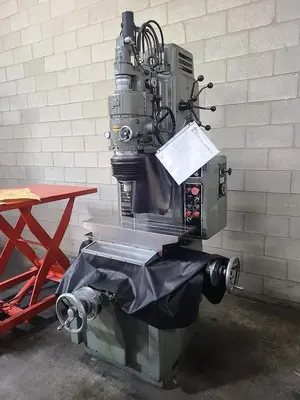

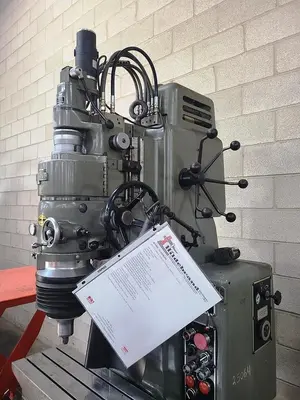

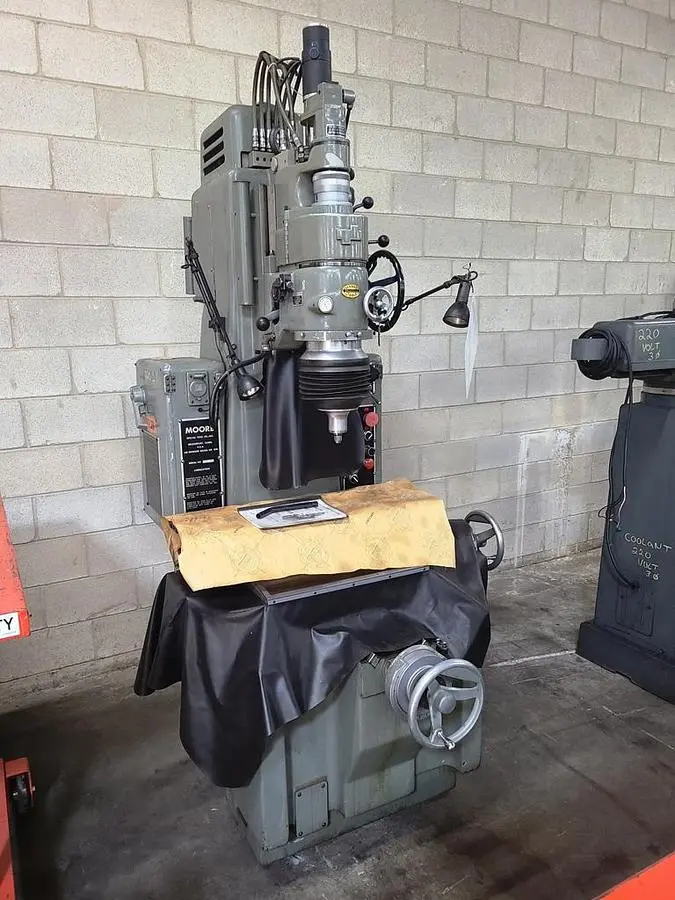

USED MOORE G18

MOORE JIG GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,600.00 AS IS

HMC Stock # 25064-C

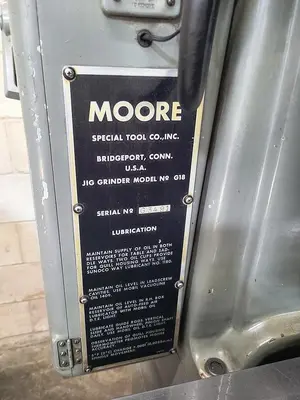

Serial No.: G3491
Model: G18
Year: Mid 1980s

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

Table Size: 11" x 24"
Longitudinal Table Travel: 18"
Cross Table Travel: 11"
Spindle Head Vertical Travel: 12-5/8" (Manual)
Spindle Travel: 3-5/8" (Power)
Distance Table to Spindle: 2" Min. to 18" Max.
Center of Spindle Back to Column Ways: 10"
Center of Spindle Back to Below Column Ways: 13-1/2"
Variable Spindle Rotation Speeds: 25 to 225 RPM
Variable Spindle Feeds: 2 to 120 SPM
Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.

EQUIPPED WITH:

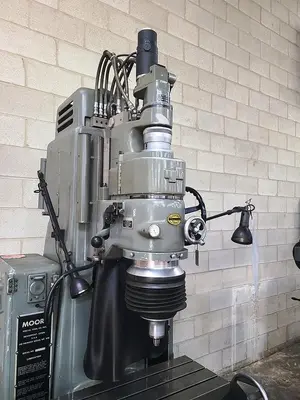

(1) Moore Jig Grinding Head, Speed Unknown

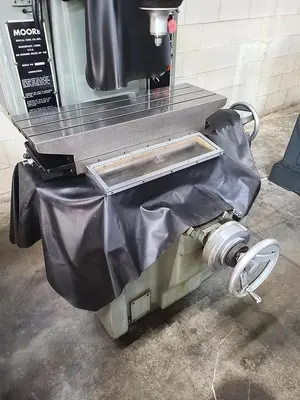

(1) 11" x 24" x 4" High T Slotted Sub Table
Vinyl Way Cover Material All Around the Table
Hardened V Shaped Table Ways and Saddle Ways
Operation Manual
Wired for Single Phase, 60 Hz, 220 Volts

Overall Machine Size: 48" L-R x 72" F-B x 88" H x 4,000 Lbs.
