USED 2015 ACER SUPRA 2040PD

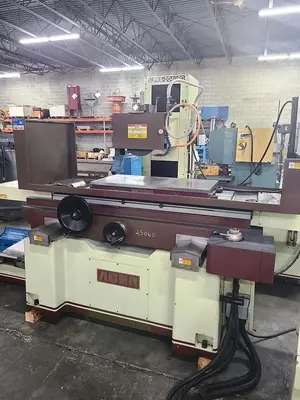

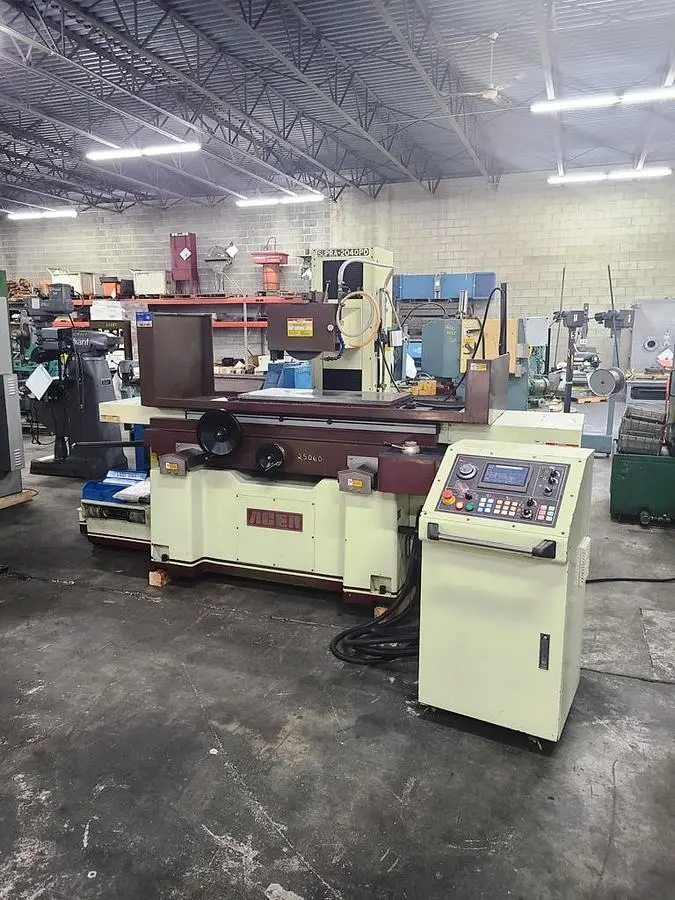

ACER SUPRA 2040PD SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $49,500.00 AS IS

HMC Stock # 25060-C
Serial No.: N15100574
Model: Supra 2040PD
Year: 2015

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

Table Area: 15.98" x 40.15"
Max. Grinding Length: 40.15" x Grinding Width: 19.68"
Max. Distance Spindle Center Line to Table Surface: 24.8"
Table Longitudinal Travel – Hydraulic: 41.73" via Manual: 43.30"
Variable Table Feed: 196.8 to 984.25 IPM @ 60 Hz
Table Load Capacity with Chuck and Part: 1,620 Lbs. Max.
Cross Travel of Saddle Automatic Feed Increment: 0.0397" to 0.984" IPM
Cross Travel of Saddle Automatic Constant Feed Speed: 20.07" IPM
Cross Travel of Saddle Automatic Manual Travel: 0.000787"
Vertical Feed of Wheelhead Hand Wheel Per Graduation: 0.000197"
Vertical Feed of Wheelhead Automatic Feed: 5.90" IPM
Vertical Feed of Wheelhead Step Feed: 0.236" IPM
Standard Grinding Wheel Size: 13.97" OD x 1.968" Wide x 5" Bore
EQUIPPED WITH:
(1) Grinding Wheel Hub

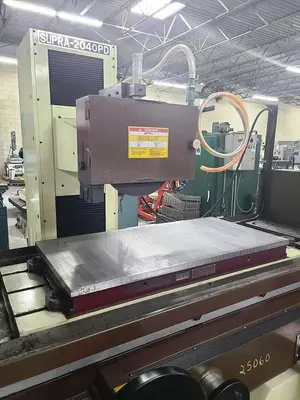

19-3/4" x 39" Acer Standard pole Electromagnetic Chuck

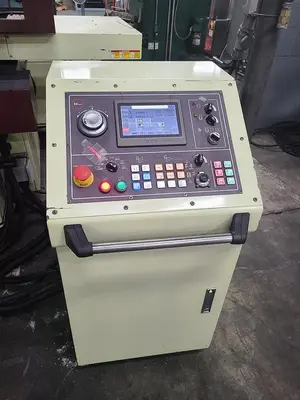

PLC Control with Operators Console on Wheels
Over-the-Wheel Wheel Dresser
Free Standing Coolant System with Filter
Acer Control System Operation Manual & Grinder Operation Manual -Parts and Schematics
3 HP Hydraulic System Motor; 1.3 HP Cross Feed Drive Motor; 1/4 HP Rapid Elevation Motor
? HP Coolant System Pump and Conveyor Drive Motors
7-1/2 HP Spindle Motor, Wired for 3 Phase, 50/60 Hz, 1750 RPM @ 60 Hz, 230 / 460 Volts
Presently Wired for 440 Volt Operation
Approx. Floor Space Needed for Operation: 200" LR x 75" FB x 83" High
Overall Size for Trucking: Machine 122" LR x 75" FB x 83" High x 10,600 Lbs.
Overall Size Does Not Include the Coolant System, Operator Console and Hydraulic System
Inch Dimensions are Conversions from Millimeters
