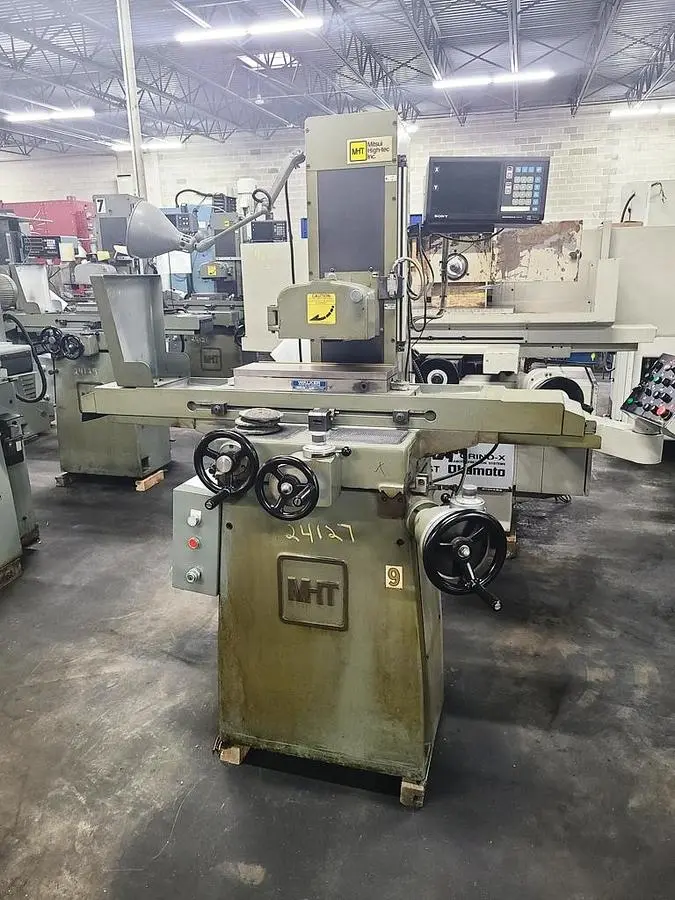

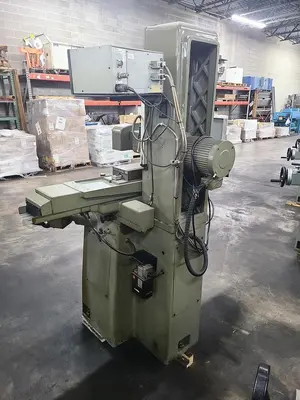

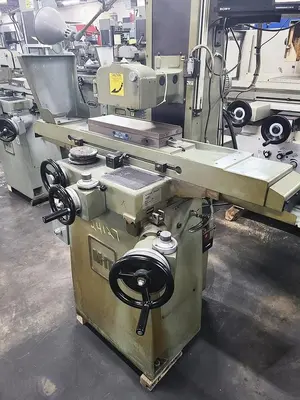

USED 1994 MITSUI MSG-250MH

6" X 18" MITSUI HAND FEED SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,950.00

HMC Stock # 24127
Serial No.: 94083104
Model: MSG-205MH
Year: 1994

Dimension of Working Surface: 19" x 6-1/4"
Maximum Grinding Length and Width: 19" x 7"
Maximum Height from Table Surface to Grinding Wheel Spindle Center: 15"
Maximum Longitudinal Movement of Table: 20"
Maximum Cross Movement of Table: 8"
Table Movement per Hand Wheel Revolution: 4"
Hand Wheel for Vertical Feed:
  Per One Revolution: .05"
  Per One Division: .0001"
Hand Wheel for Cross Feed:
  Per One Revolution: .1"
  Per One Division: .001"
Height from Floor to Table Surface: 42"
Wheel Size: 7" Diameter x 1/2" Width x 1-1/4" Bore

EQUIPPED WITH:
Fine Pole Permanent Magnetic Chuck
Sony Digital Read Out
Fine Feed on Y Axis, .00005" Increments
Fine Feed on Z Axis, .00005" Increments
One Shot Lube
1 KW Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 48" LR x 48" FB x 72" High x 1,300 Lbs.
