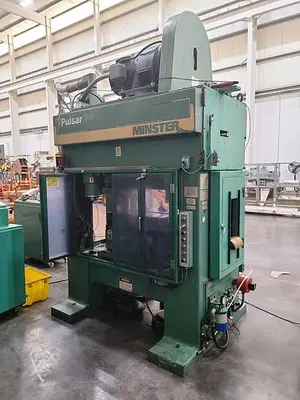

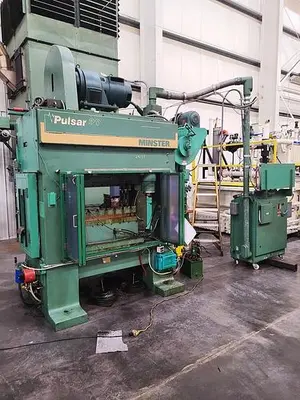

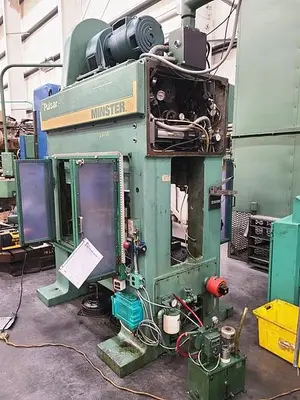

USED 1981 MINSTER TR2-30

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $5,500.00 As Is

HMC Stock # 24138

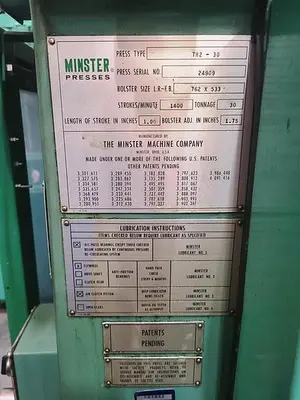

Machine Serial No.:  TR2-30-24909
Machine Model No.:  Model # TR2-30
New:  1981

Capacity:  30 Tons
Stroke:  1"
SPM:  100 to 1400
Max. 800 SPM with 300 Pound Upper Die
Adjustment:  1-1/4" (Power Adjustment with Digital Indicator)
Shut Height:  9"
Bed Area:  30" L-R x 21" F-B
Ram Face:  30" L-R x 12" F-B
Opening in Bolster:  24" L-R x 4" F-B
15-3/8" Wide Windows
Minster Heavy Duty Hydraulic Operated Friction Clutch & Brake
Counterweighted Drive System Provides 100 Degree Dynamic Balance of Slide
Recirculating Oil System
Slide Guided by Six-Post Guiding System

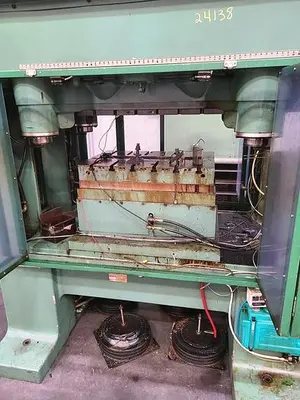

Bolster Plate:  30" L-R x 21" F-B x 3.5" Thick with (7) 11/16" T-Slots
   Running the 21" Width
Upper Die Plate Bolted to Ram:  34-1/2" L-R x 12" F-B x 1-1/8" Thick

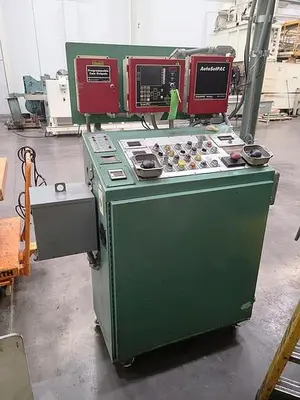

Operator Console with Full Press Controls for:  SPM, Digital Tach,
   Load Meter & Past Preset Counter
Feed Length Digital Display
Smart PAC Wintress Press Controls
(4) 13" Diameter Air Cushion Press Mounting Pads
Manual
25 HP, 3 Phase, 60 Cycle, 230/460 Volt Motor

Press Overall Dimensions:  90" L-R x 55" F-B x 120" H Without Mounting Feet
Operator Console:  41" L-R x 24" F-B x 46" H (89" High Without Motor and Electrics)
Approx. Weight:  20,000 Lb.

Purchased as an idle machine from a connector facility.  Was not able to be seen under power.  Overall mechanical condition looks good, but the machine was only given a cursory inspection.
