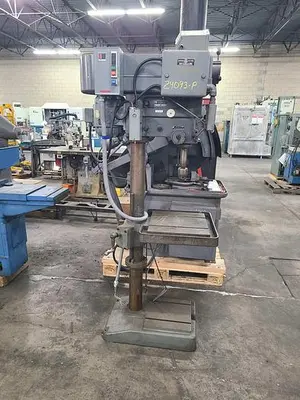

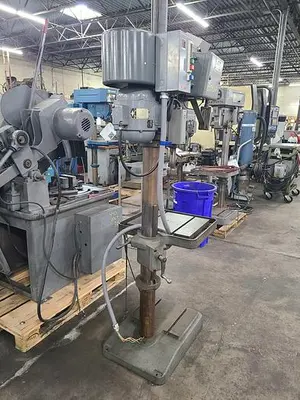

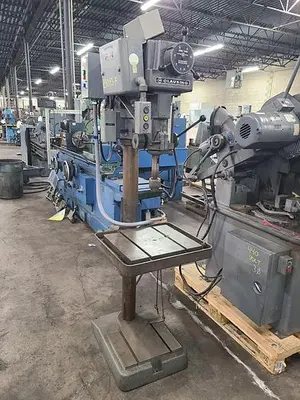

USED CLAUSING 2277

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $2,950.00

HMC Stock # 24093-P
Machine Serial No.: 506448
Machine Model No.: 2277

Drilling Capacity, Hand Feed: 1.25"
Drilling Capacity, Power Feed: 1.125" CAST
Drilling Capacity, Power Feed: .875" STEEL
Spindle Travel: 6"
Drill to Center of Circle, Maximum: 20"
Table Working Surface, W x L: 22" x 19.5"
Base Working Surface, W x L: 15.5" x 13"
Spindle to Table, Maximum: 33.125"
Spindle to Base, Maximum: 43.375"
Quill Diameter: 2.25"
Spindle Taper: #3 MT
Spindle Speeds, Variable: 300 to 2000 RPM

EQUIPPED WITH:
Manual Down-Feed to Spindle
Adjustable Table
Round Column Design
Jacobs Chuck
1-1/2 HP Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 27" LR x 32" FB x 72" High x 650 Lbs.
