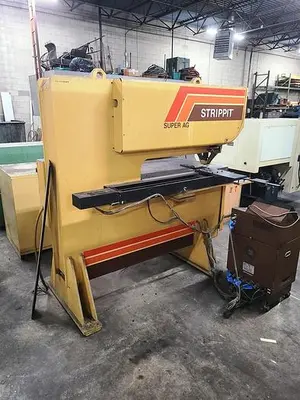

USED 1988 STRIPPIT SUPER 30/30 AG

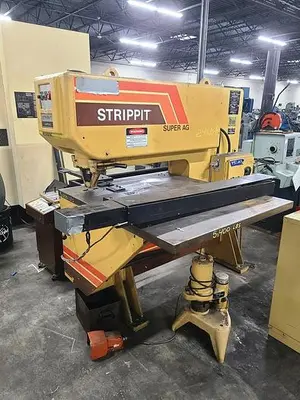

STRIPPIT SUPER 30/30 FABRICATOR MECHANICAL PUNCH
PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $4,500.00

HMC Stock # 24100-P
Machine Serial No.: 2211110488
Machine Model No.: Super 30/30 AG
New Date: 1988

Working Throat Capacity: 30"
Rated Tonnage Capacity: 30 Ton
Center Line of Punch to Rear Frame: 34"
Maximum Hole Diameter: 3-1/2" Dia. in 12 Ga.
Maximum Material Thickness: 1" Dia. in 1/4"
Working Sheet Size: 30" x 30"
Working Area with Gauging Stops: 30" x 30"
Stroke Length: 5/8"
Hits Per Minute: 165
Vertical Table Adjustment: 2-1/4" Manually
Traverse Movement of Material Holder Bar: 27" X, 29-3/4" Y
Template Work Area: 32" X x 30" Y
Left Side of Table Work Area: 40" X x 43-3/4" Y
EQUIPPED WITH:
Designed for Use with 1-1/4" Dia. and 3-1/2" Dia. Tooling

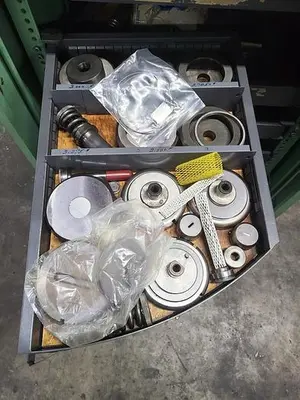

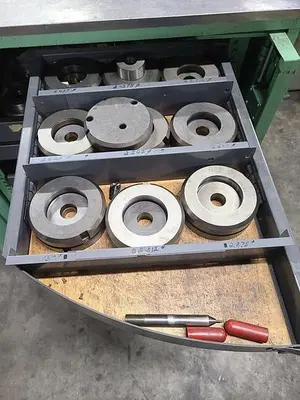

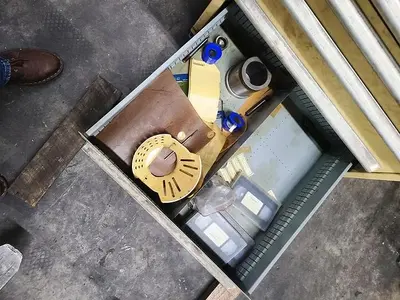

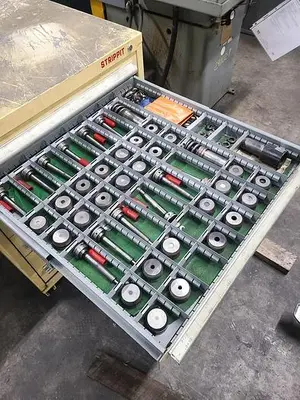

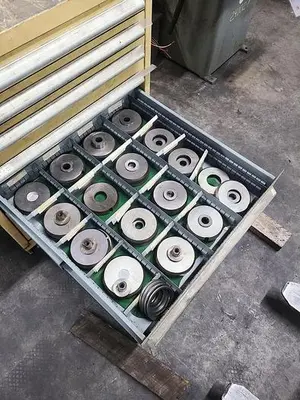

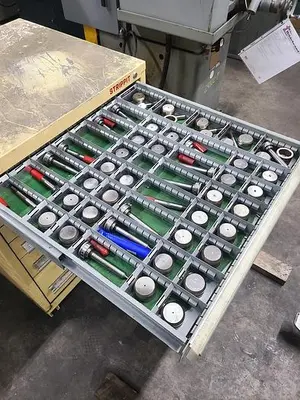

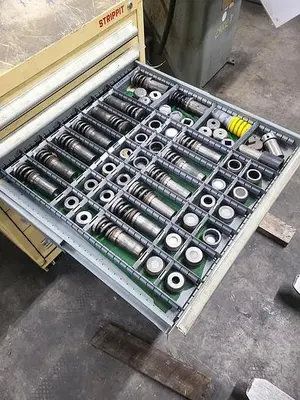

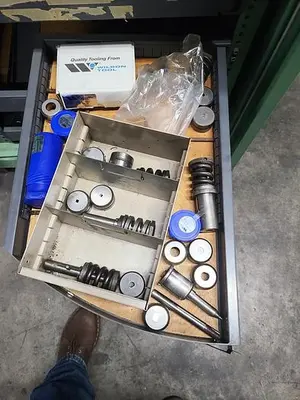

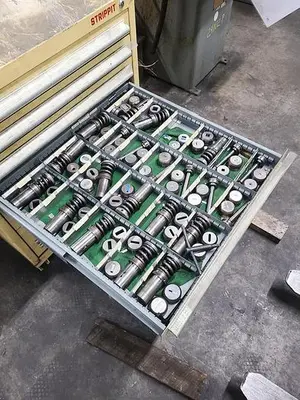

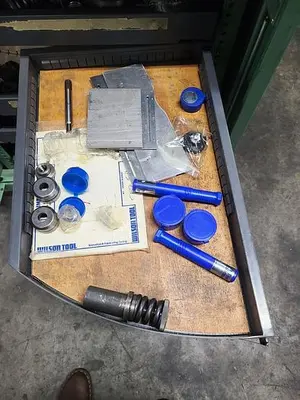

(2) Cabinets Full of Assorted Tooling
Foot Pedal

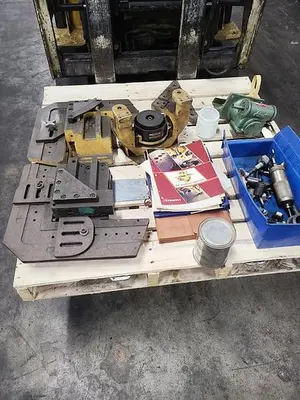

(2) Corner Notching Attachments
Strippit Punch Grinder for Sharpening Tooling
Wired for 3 Phase, 60 Cycle, 440 Volts
OVERALL SIZE:
Machine: 60" LR x 72" FB x 70" High x 5,400 Lbs.
Cabinet: 30" LR x 30" FB x 36" High
Cabinet: 35" LR x 21" FB x 42" High
Skid: 40" LR x 40" FB x 30" High

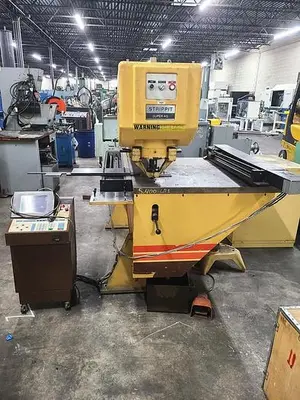

This machine was originally equipped with an NC sheet positioning system.  The system is attached to the machine, but it is not fully functional.  That system is not guaranteed to work.  The punch portion of the machine has been cycled and works fine.  The machine would be well suited to be used as a manual punch and the new owner can fabricate whatever table or sheet support system they needed for the left side of the machine.
