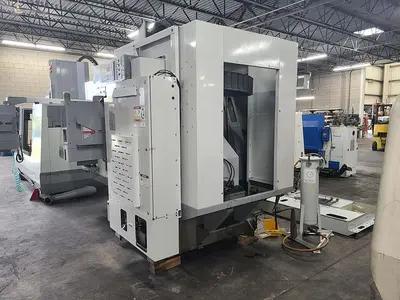

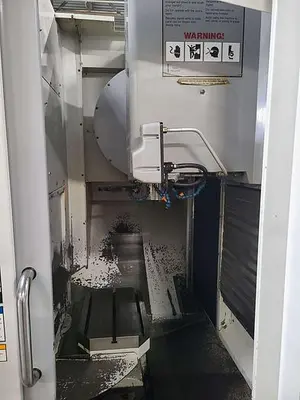

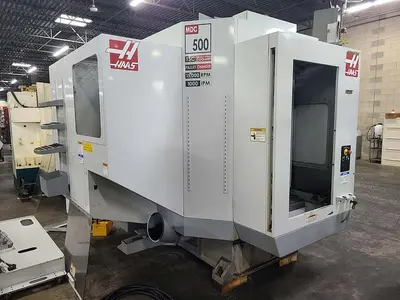

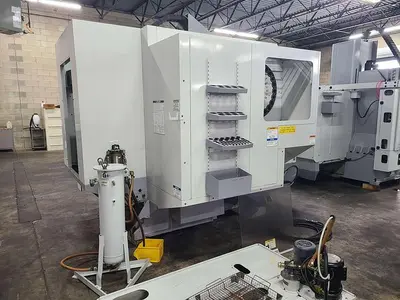

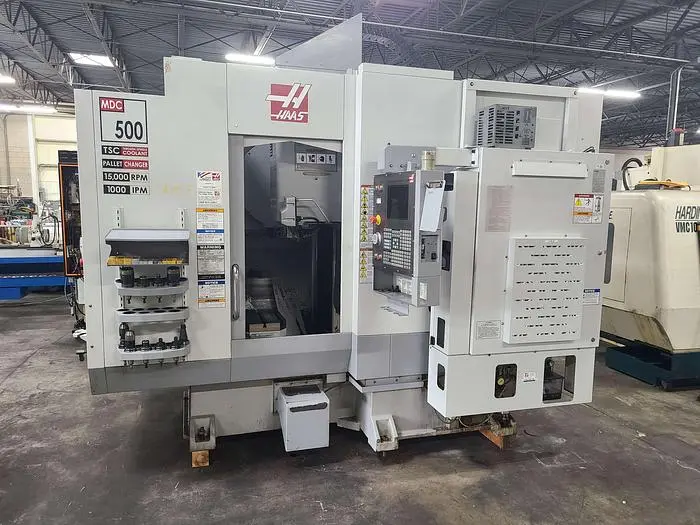

USED 2006 HAAS MDC-500

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $24,500.00

HMC Stock # 24045-P
Machine Serial No.: 48837
Machine Model No.: MDC-500
New Date: 2006

Table Size: 20" Long x 12.75" Wide

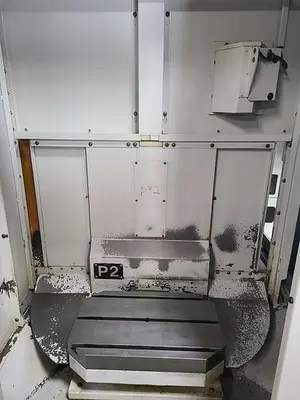

Number of Pallets:  2
Table Capacity: 700 Lbs.
X-Axis Travel: 20"
Y-Axis Travel: 14"
Z-Axis Travel: 20"
Spindle Speed: 15,000 RPM
Spindle Motor: 20 HP
Spindle Taper: CAT 40
Tool Capacity (ATC): 24
Rapid Traverse, X-Axis: 1,000 in/min.
Cutting Feed Rate:  500 in/min.

EQUIPPED WITH:
15,000 RPM Optional Spindle
Through Spindle Coolant

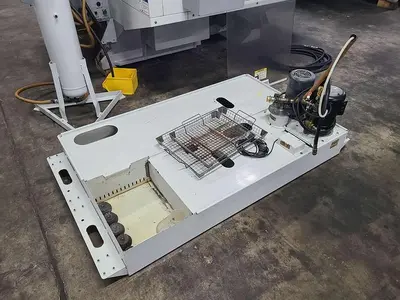

Chip Auger
Coolant Filtration
High Speed Machining
Rigid Tapping
August 2024, Aftermarket Floppy to USB Conversion Kit Installed
20 HP Motor, Wired 3 Phase, 60 Hz, 220 Volts

Dimensions:
Machine Dimensions: 133" LR x 105" FB x 101" High
Coolant Pan: 72" LR x 41" FB x 24" High
Coolant Filter: 34" LR x 34" FB x 48" High
Approx. Machine Weight: 16,000 Lbs.

Hours of Use as of 6/25/2024:
   Servo Time: 21,167 Hours
   Motion Time: 1,673 Hours
   Spindle Time: 716 Hours

Replacement Cost for Machine if Purchased New: $115,000
Available for Immediate Inspection & Purchase
