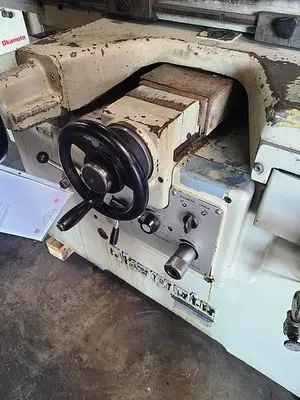

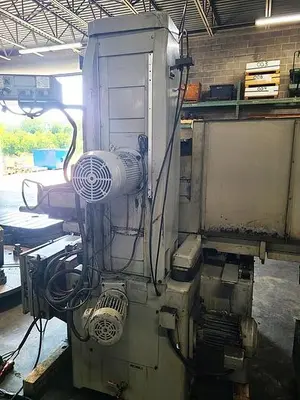

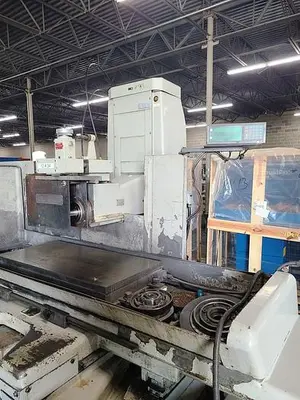

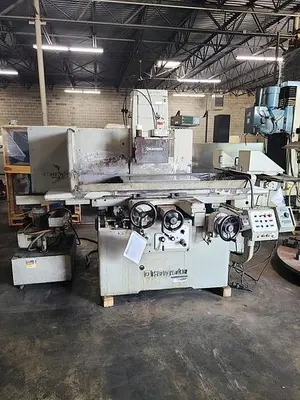

USED OKAMOTO 1632N

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $12,500.00

HMC Stock # 24051-P
Machine Serial No.:  8542
Machine Model No.:  1632N
New Date:  Unknown

Maximum Grinding:  16" Wide x 32" Long
Maximum Vertical Clearance:
   14" Diameter Wheel (50 Hz):  20.6"
   12" Diameter Wheel (60 Hz):  21.6"
Table Load Capacity:  1,550 Lbs.

Maximum Table Travel (Manual):  17.3" x 37.4"
Table Working Surface:  15.7" x 37.4"

Longitudinal Movement of Table
   Hydraulic Feed:  10' to 83' per Minute

Cross Movement of Saddle
   Hydraulic Intermittent Feed:  0.02" to 0.8"
   Hydraulic Continuous Feed:  8" to 40" per Minute

Hand Feed per Revolution:  0.25"
Graduation of Handwheel:  0.001"

Vertical Movement of Wheelhead
   Automatic Feed per Table Stroke:  0.0002" to 0.0015"
   Automatic Feed per Saddle Reversal:  0.0002 to 0.0015"
   Hand Feed per Revolution:  0.05"
   Manual Incremental Feed:  0.0001" to 0.0015"
   Graduation of Handwheel:  0.0001"
   Rapid Feed (50/60 Hz):  16"/19" per Minute

Grinding Wheel Diameter (50/60 Hz):  14"/12"
Grinding Wheel Width:  1-1/2"
Grinding Wheel Bore:  5"

EQUIPPED WITH:
Sony Two Axis Digital Read Out

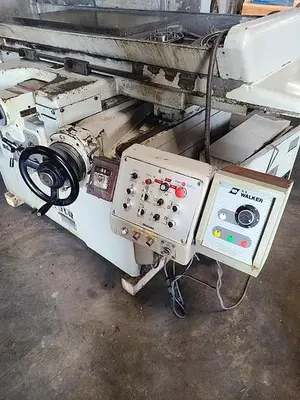

16" x 32" Electromagnetic chuck with OS Walker Control
Hydraulic Incremental Power Down Feed
Rapid Up/Down to Wheel Head
Spark Out
(2) Wheel Hubs
Manual
Coolant Tank and Pump
Spindle Motor: 5 HP, Wired for 3 Phase, 60 Cycle, 220 Volts
Hydraulic Pump Motor:  2 HP
Vertical Rapid Feed Motor:  1/2 HP

Machine: 96" LR x 80" FB x 88" High x Approx. 7,780 Lbs.
Coolant Tank: 40" LR x 30" FB x 36" High
