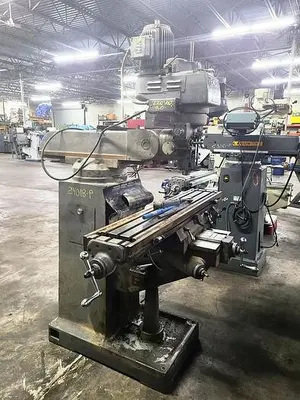

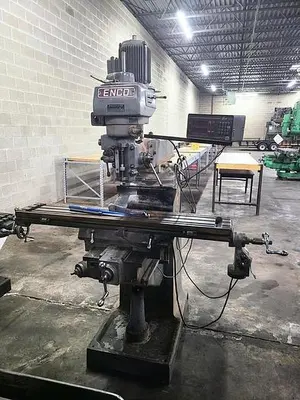

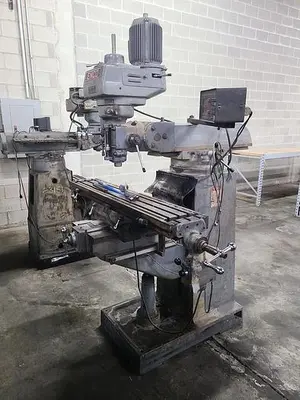

USED ENCO 100-1598

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $3,000.00

HMC Stock # 24018-P
Machine Serial No.:  41213
Machine Model No.:  100-1598
New Date: 1991

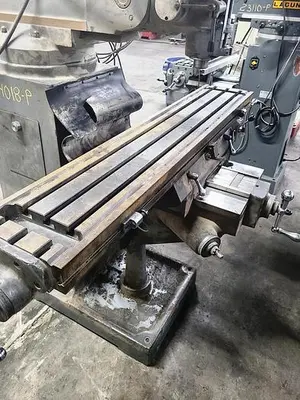

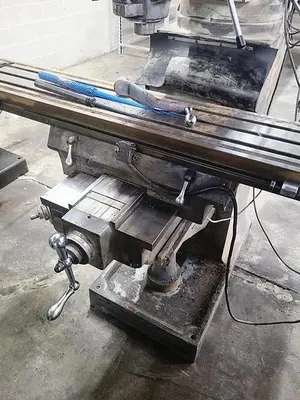

Table Size: 54" LR x 10" FB
Travels:
  X Axis:  33-1/2" (Actual travel with DRO and power feed installed.)
  Y Axis:  15"
  Knee:  16"
  Quill:  5"
Spindle Taper:  R8
(16) Spindle Speeds:  78 – 4800 RPM
(3) Power Quill Feeds:  .001, .002, .003 Thousandths per Rev. of Spindle

EQUIPPED WITH:

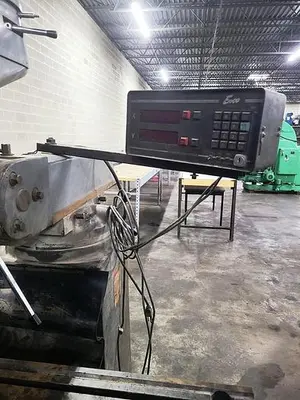

Enco 2-Axis Digital Read Out (Unit is fully functional but power cord is missing. Unit was tested with inhouse cord, but none will be supplied with purchase.)
Servo 140 X Axis Power Feed (Rapid button does NOT work.)
One Shot Lube
Extra Draw Bar

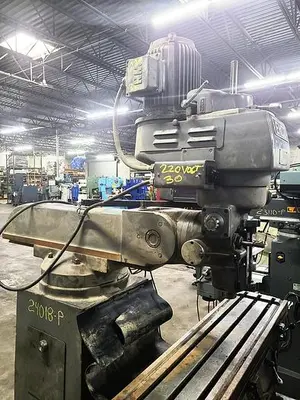

? HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size:  75" LR x 65" FB x 87" High
