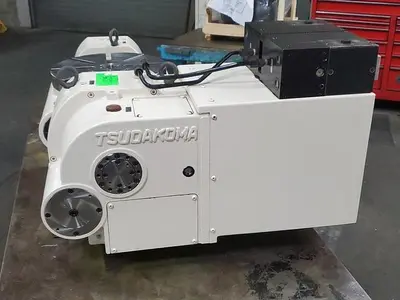

USED 1996 TSUDAKOMA TRNC301

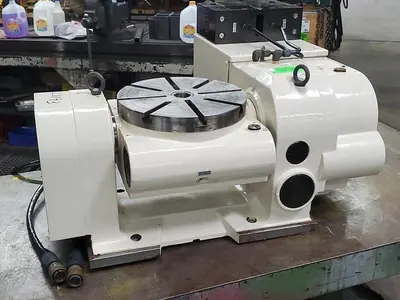

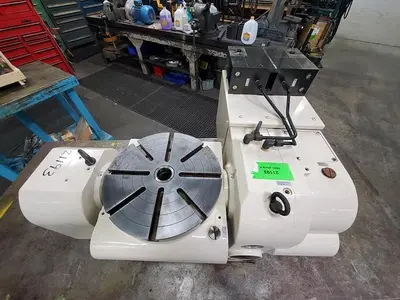

TSUDAKOMA CNC TILTING ROTARY TABLE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $7,500.00

HMC Stock #21193-P
Machine Serial No.: 961329
Machine Model No.: TRNC301
New Date: 1996

SPECIFICATIONS:

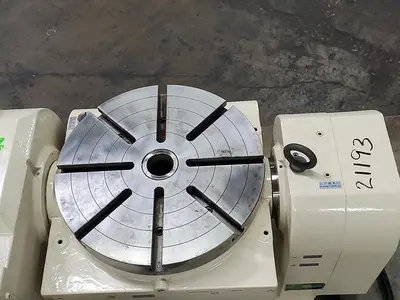

Table Diameter: 12.59"
Center Hole Thru Table: 1.575" Diameter
Tilt Range: +110°
Center Height at 90°: 10.03”
Height of Table in Flat Position: 13.58"
Table Load at 0° Tilt: 330 Lbs.
Table Load at 90° Tilt: 220 Lbs.
Maximum Table Speed: 8.5 RPM
Servomotor:
Rotary: Fanuc Alpha 8i
Tilt: Fanuc Alpha 8i
Speed Reduction Ratio:
Rotary: 1/360
Tilt: 1/360
Index Accuracy:
Rotary: + 7.5 Arc Sec
Tilt: + 7.5 Arc Sec

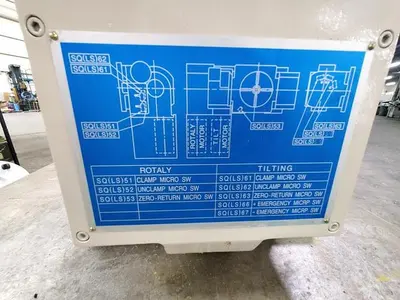

Clamping System: Hydraulic
Clamping Torque:
Rotary: 613 Ft. Lbs.
Tilt: 722 Ft. Lbs.
Allowable Wheel Torque: 563 Ft. Lbs.
Distance Between Unit Frames at Table Top: 15"

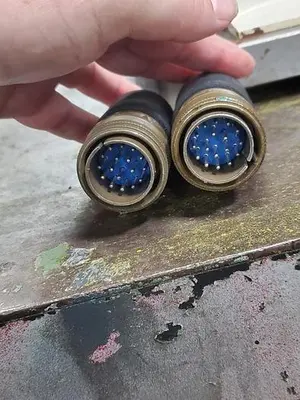

Dual Cannon Plug Connectors
Originally Used on HAAS VF5 VMC
Unit Base Size: 23" x 13-1/2"

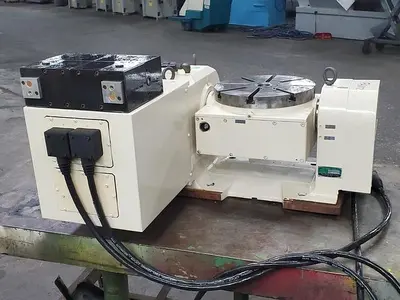

See Photos for More Details

Overall Size: 33" LR x 30" FB x 20" High x 770 Lbs.
