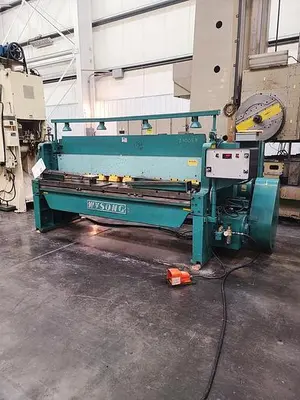

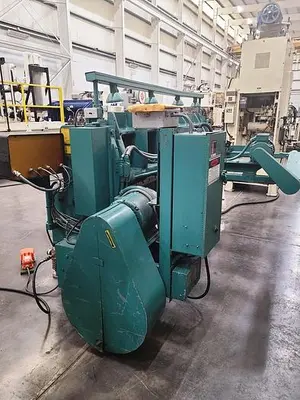

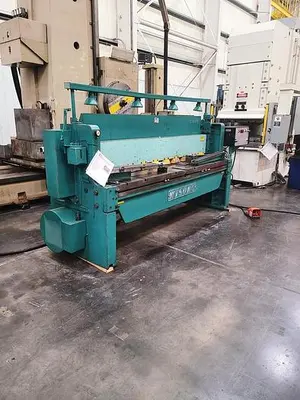

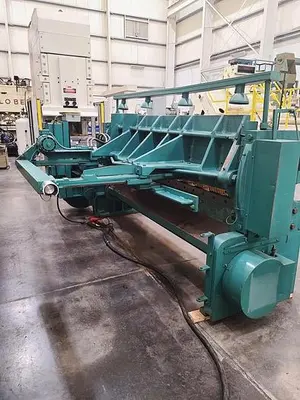

USED 1985 WYSONG 796

3/16" X 8' WYSONG MECHANICAL POWER SQUARING SHEAR
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $19,500.00

HMC Stock # 21005-P
Machine Serial No.: P113-109
Machine Model No.: 796
New Date: 1985

Rated Capacity: 8' of 3/16" Mild Steel
Rated Capacity: 12 Ga. of Stainless Steel
Cutting Length: 96"
Powered Back Gage Range: 35"
Approximate Distance Floor to Table: 33" +/-

EQUIPPED WITH:

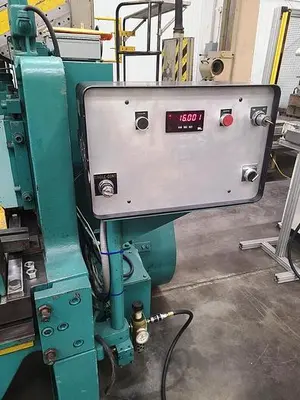

Single Axis Power Back Gage With Digital Read Out
Electric Foot Pedal Trip Control
(2) Adjustable 31" Long Front Material Support Arms
(1) 42" Long Squaring Arm (On Left Side) with (2) Adjustable Material Stops
(1) Set of 4 Edge Knives in Good Condition
Bijur Pressurized Lubrication System
Adjustable & Replaceable Ram Ways Wear Strips
Full Length Finger Guard
Mechanical Material Hold Downs
Manually Adjustable Cycle Brake
Overhead Light Bar with (4) Flood Lights
Air Actuated Mechanical Clutch – Compressed Air Required
15 HP Main Motor, 200/230/460 Volts
3/4 HP Back Gage Motor, 200/230/460 Volts
Wired for 3 Phase, 60 Hz, 230/460 Volts
Presently Wired for 440 Volt Operation
Machine is in Good Physical

Overall Size Assembled: 146" LR x 81" F-B (w/o sq arm and supports) x 70" High x 11,750 Lbs.
