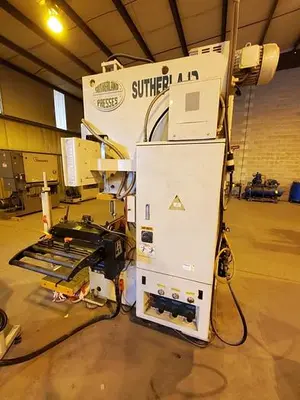

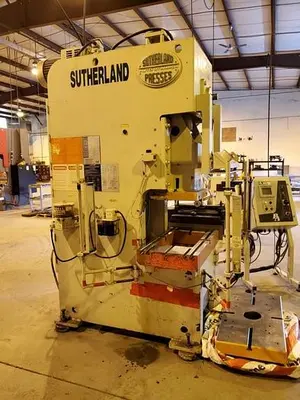

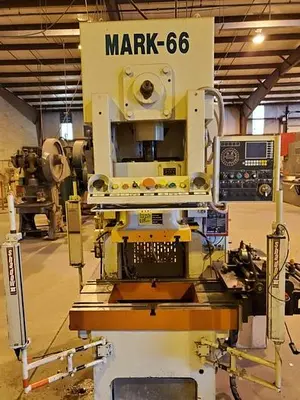

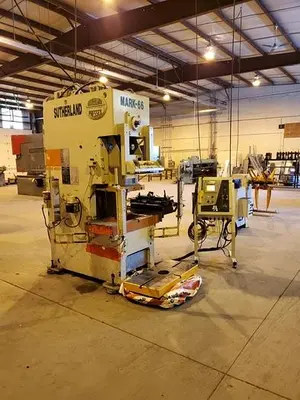

USED 2004 SUTHERLAND MARK-66

SUTHERLAND 66 TON AUTO STAMPER PUNCH PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …$35,000.00

HMC Stock # 20060-P
Machine Serial No.: 200305027
Machine Model No.: Mark-66
New Date: June 2004

Rated Capacity: 66 Tons Gap Frame
Tonnage Point Rating: 4 mm
Stroke Length: 130 mm (5.11")
Strokes Per Minute: 45 to 85 SPM
Die Height: 300 mm (11.81")
Slide Adjustment: 60 mm (2.36")

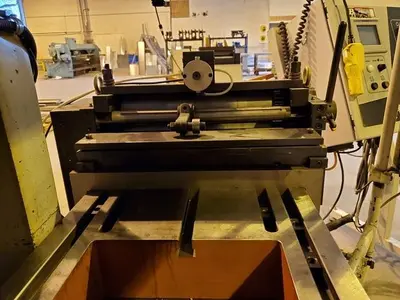

Bolster Area: 970 mm x 500 mm (38.18" x 19.68" x 4" Thick))
Bolster Plate has 5-3/4" Thru Hole and Assorted T Slots
Bed Opening: 12-3/4" FB x 21-3/4" LR

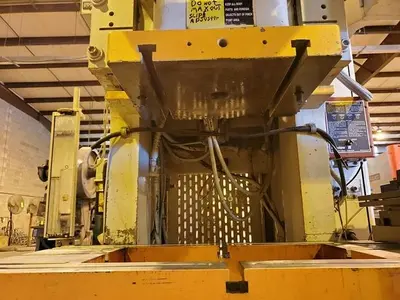

Ram Size: 15" FB x 18-1/2" LR with (2) T Slots & Center Hole
Ram has Knock Out Bar Design
Distance Between Frames at Bed: 20-3/4"
Centerline of Bed to Frame: 10"

EQUIPPED WITH:
Air Clutch with Gear Box Drive
Automatic Grease Lube and Oil Systems
Wintriss Shadow VI Safety Light Curtains on Front and Left Side
Dual Paul Buttons
Motorized Ram Adjustment with Numerical Readout
Press is on (4) Round Vibration Pads
OEM Manuals and Schematics, Electrical Rating: CE
Required Air Pressure for Operation: 5 Kg/cm2

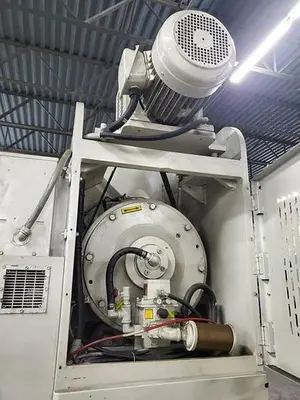

Main Motor: 7.5 HP x 4 Pole
Wired for 3 Phase, 60 Hz, 220 / 440 Volts
Presently Wired for 3 Phase, 60 Hz, 480 Volts
Overall Size for Shipping: 53" LR x 71" FB x 110" High (no floor blocks) x 12,000 Lbs.

To See Machine Manuals, Go To: click on MORE INFORMATION on our website or copy paste this link: http://www.hildebrandmachinery.com/20060-sutherlandmoreinfo.html
