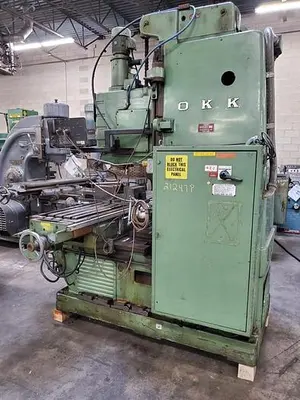

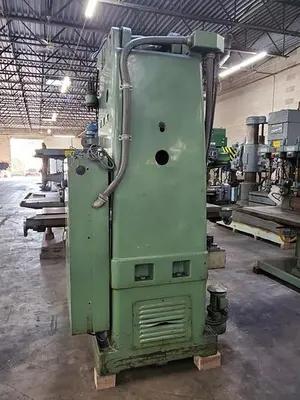

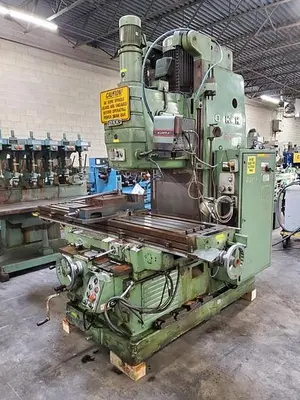

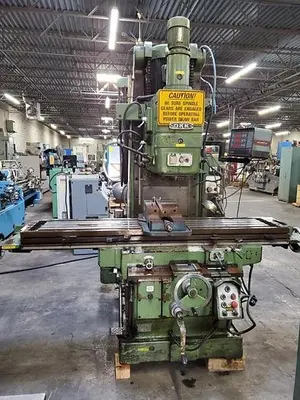

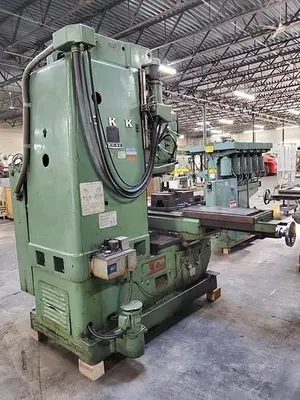

USED 1981 OKK MH-4V

OKK BED TYPE VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $24,500.00

HMC Stock # 21247-P

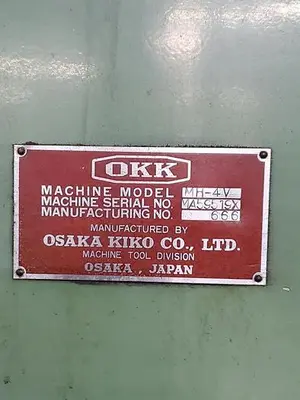

Machine Serial No.: MA59519X
Machine Model No.: MH-4V
Manufacture No.: 666
New Date: 1981

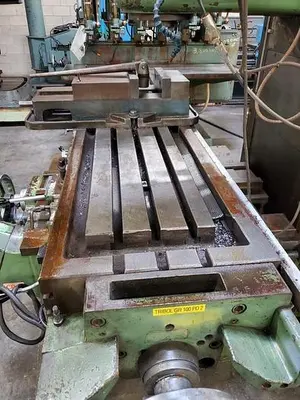

Table Size: 78-3/4" x 17-3/4"
(3) T-Slots: 13/16"
Longitudinal Travel: 43-1/4"
Cross Travel: 16-1/2"
(16) Table Feeds: 3/8 to 66 IPM
Power Rapid Traverse: 125 IPM
Head Vertical Travel: 19-5/8"
Head Vertical Feed Rate: 0.150 to 26.4 IPM
Distance Spindle Nose to Table: 4" to 23-5/8"
Distance Spindle Center to Column: 20-1/2"
Taper of Spindle Nose: #50 National Standard
(18) Spindle Speeds: 22 to 1400 RPM

EQUIPPED WITH:
Power Draw Bar

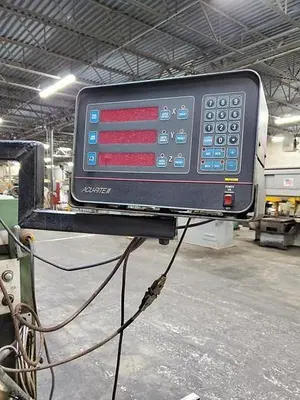

Acu-Rite 3-Axis Digital Readout
Coolant Pump
8" Kurt Vise with Handle
Central Automatic Lubrication System
Automatic Table Feed – Rapid Cycle
(3) Adjustable Table Cycle Trip Dogs
(4) Wedge Type Machine Leveling Pads

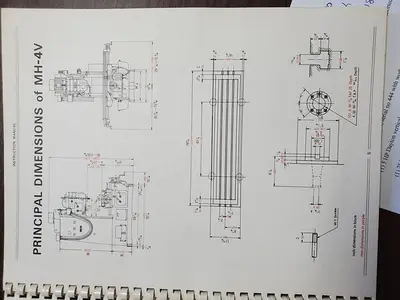

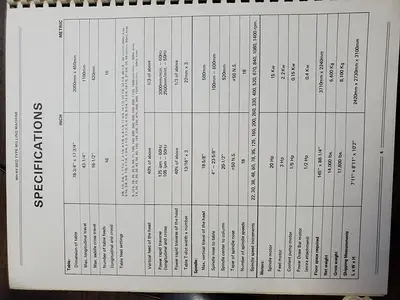

(1) OEM Instruction Manual for Operation and Maintenance
20 HP Spindle Motor
3 HP Feed Motor
1/5 HP Coolant Pump Motor
1/2 HP Power Draw Bar Motor
Wired for 3 Phase, 50/60 Hz, 230 / 460 Volts

Overall Size: 97" LR x 87" FB x 104" High (on 4" blocks) x 14,000 Lbs.
