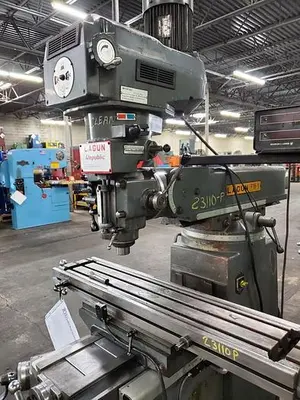

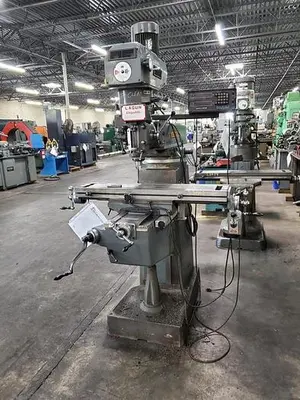

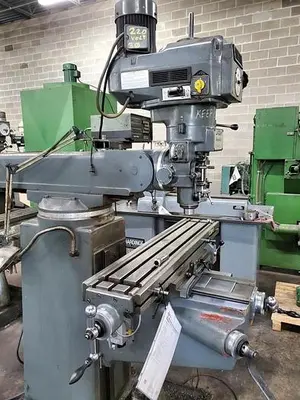

USED LAGUN FTV-1

LAGUN VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA … $5,500.00

HMC Stock # 23110-P
Machine Serial No.: SE-17117
Machine Model No.: FTV-1
New Date: Unknown

Made in Spain

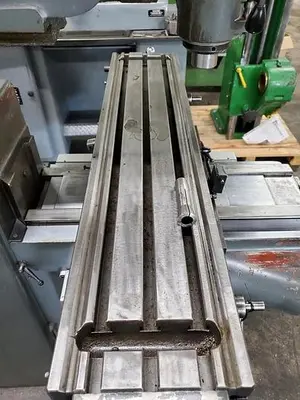

Table Size: 10" x 44" with (3) T-Slots
Quill Travel: 5"
Spindle Speeds: 55 to 4250 RPM Variable
Spindle Taper: R8
Quill Power Feeds: .003", .006", .015" Per Revolution
Ram Travel on Column Base: 22"
Head Tilts Front & Back and Left & Right

EQUIPPED WITH:
2-Axis Acu-Rite Digital Readout
Lever Type Quill and Knee Crank Handles
Servo Type 150 Power Table Feed X-Axis
One Shot Central Lubrication System
Soft Saddle Ways
Adjustable Quill Feed Kick Out Stop
2.2 KW (3 HP) Spindle Motor
Wired for 3 Phase, 50/60 Hz, 220-380-440 Volts

Overall Size: 59" L-R x 68" F-B x 89" High x 2,200 Lbs.
