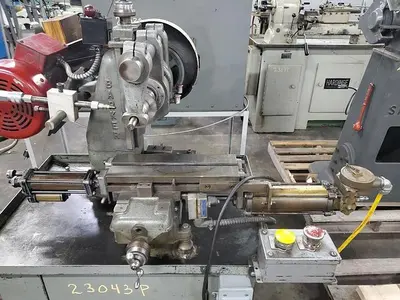

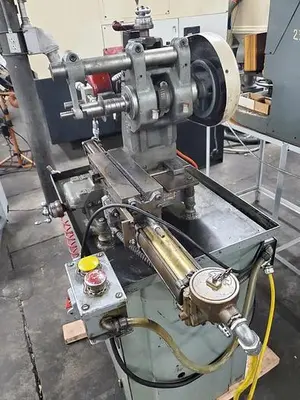

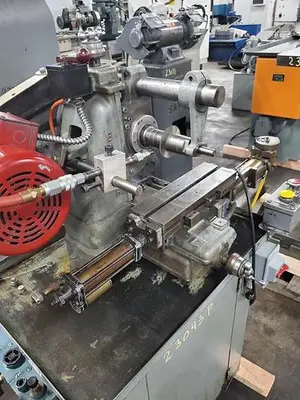

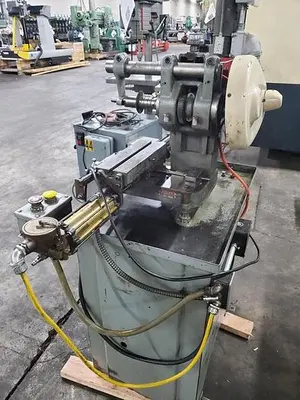

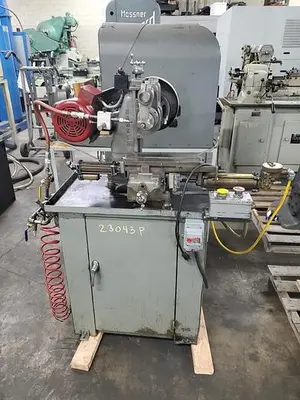

USED 1968 BARKER PMO

BARKER HORIZONTAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $750.00

HMC Stock # 23043-P

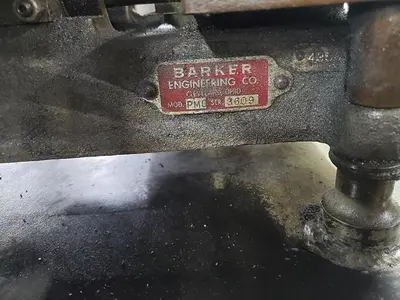

Machine Serial No.: 3609
Machine Model No.: PMO
New Date: 1968

Table Size: 4-1/8" X 12" with 1/2" T-Slot Full Length of Table in Center
Spindle Taper: Hardinge 3-C
(1) Spindle Speed via V Belt Pulley: Speed Unknown
Table Travel Longitudinal: 5" Max. Air Operated
Cross Travel Approx.: 3" by Hand Crank w/Micrometer Dial
Vertical Travel of Head: 4" by Hand Crank w/Micrometer Dial
Dis. Center of Spindle to Table Top: 2-1/8" Min 6 1/8" Max
Variable Table Air Feeds: Rates Unknown

EQUIPPED WITH:
Manual Draw Bar
Air Feed System Controls
Variable Length Feed Adjustment
Metal Cabinet Type Base
(1) Milling Arbor with Spacer Bushings, ? Dia.
(1) Arbor Support Bracket
Table Air Feed and Return Cycle
Manual Head Vertical Movement
1/2 Horsepower Main Motor 1725 RPM
Motor is Wired For Single Phase 60 Hz 115/208/230 Volts
Presently Wired for 115 Volts Single Phase

Overall Dimensions: 45" LR X 25" FB X 53" High
