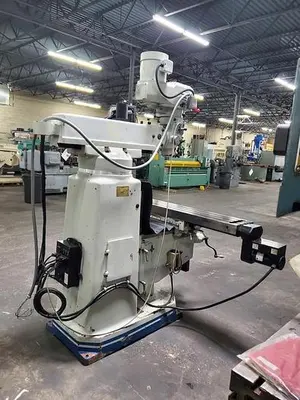

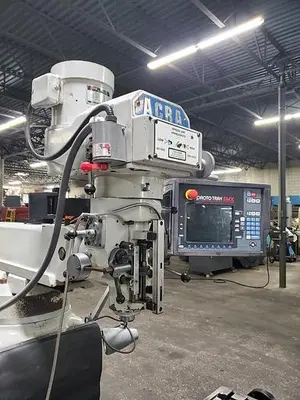

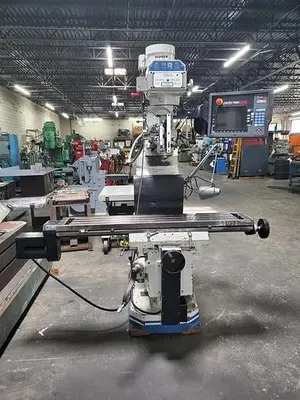

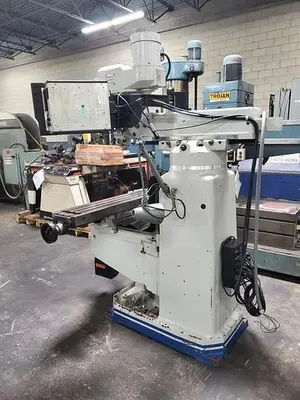

USED 1996 ACRA AM3V

ACRA 2-AXIS CNC VERTICAL MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00

HMC Stock # 23073
Machine Serial No.: 961742
Machine Model No.: AM3V
New Date: 1996

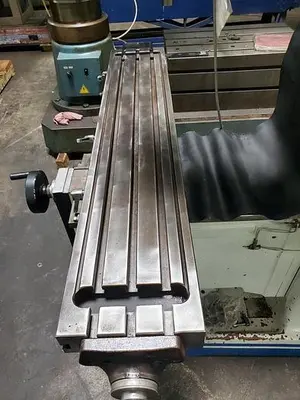

Work Table:
Surface Area: 54″ x 10″
T-Slot Center Distance: 3 @ 2.5″ Centers
T-Slot Sizes: 5/8″
Maximum Weight of Workpiece: 750 Lbs.

Travels:
X-Axis Table Travel: 39.5″
Y-Axis Table Travel: 16.5″
Z-Axis Table Travel (Knee): 16″
Quill Travel: 5″

Spindle:
Spindle Taper: R8
Spindle Diameter: 1.875″
Quill Diameter: 3-3/8″
Distance Spindle to Table (Maximum): 18″
Distance Spindle to Column (Minimum/Maximum): 5″ to 27″
Speeds: 60 to 4,200 RPM
Power Quill Feed: 0.0018″/Rev, 0.0034″/Rev & 0.0056″/Rev
Motor: 3 HP, 220/440 Volt

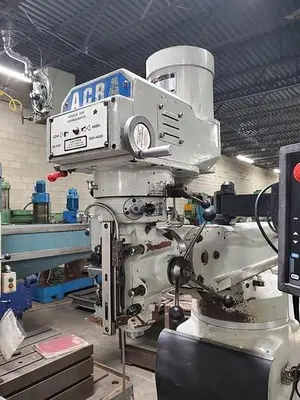

Head Adjustments:
Head Swivel: 90 Degrees
Head Tilt: 90 Degrees
Head Cant: 45 Degrees

Equipped With:

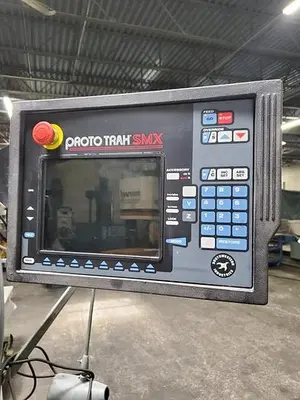

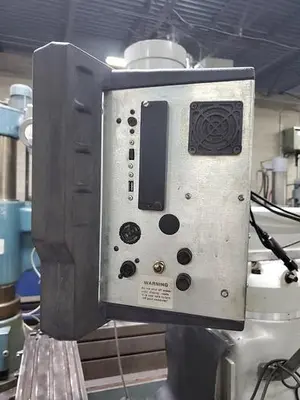

SWI Prototrak SMX 2-Axis CNC Control
Serial Number 9284, New Date: 7/2012
Manual Knee
One Shot Lube
Work Light
3 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volts
Currently 440 Volts

Overall Dimensions: 76″ LR x 72″ FB x 90″ High x 3,500 Lbs.
